This is where the shower range comes in. We want to make it simple to save water and energy. With smart technology, the thermostatic mixer and shower arm make this simple. Antony Smith, who was part of the shower development team, has worked with mixers and showers since he finished university long ago. He describes the thermostatic mixer as the shower's engine "It's the mixer which ensures that there's an even water flow and the right temperature". Antony explains that it's thanks to the thermostatic mixer that your shower water is not affected if someone turns on the water in the kitchen. You can calmly continue singing in the shower ― without the risk of being burned or getting a cold shock. The mixers that the team developed also have a 38°C safety stop button, so there's no risk of you or any child accidentally raising the temperature.

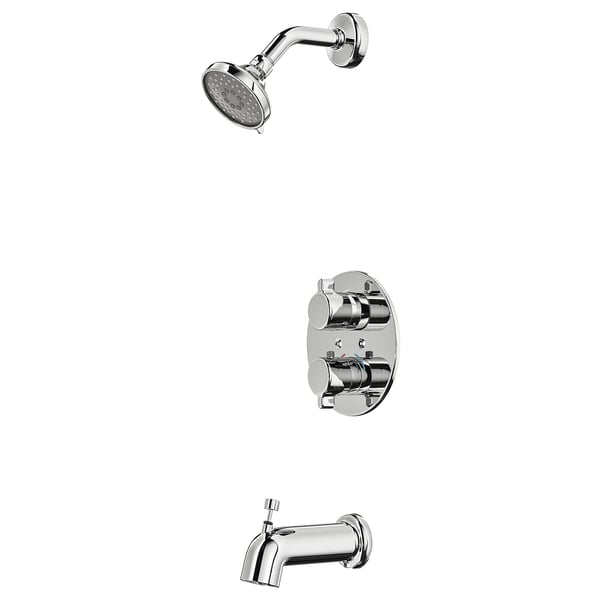

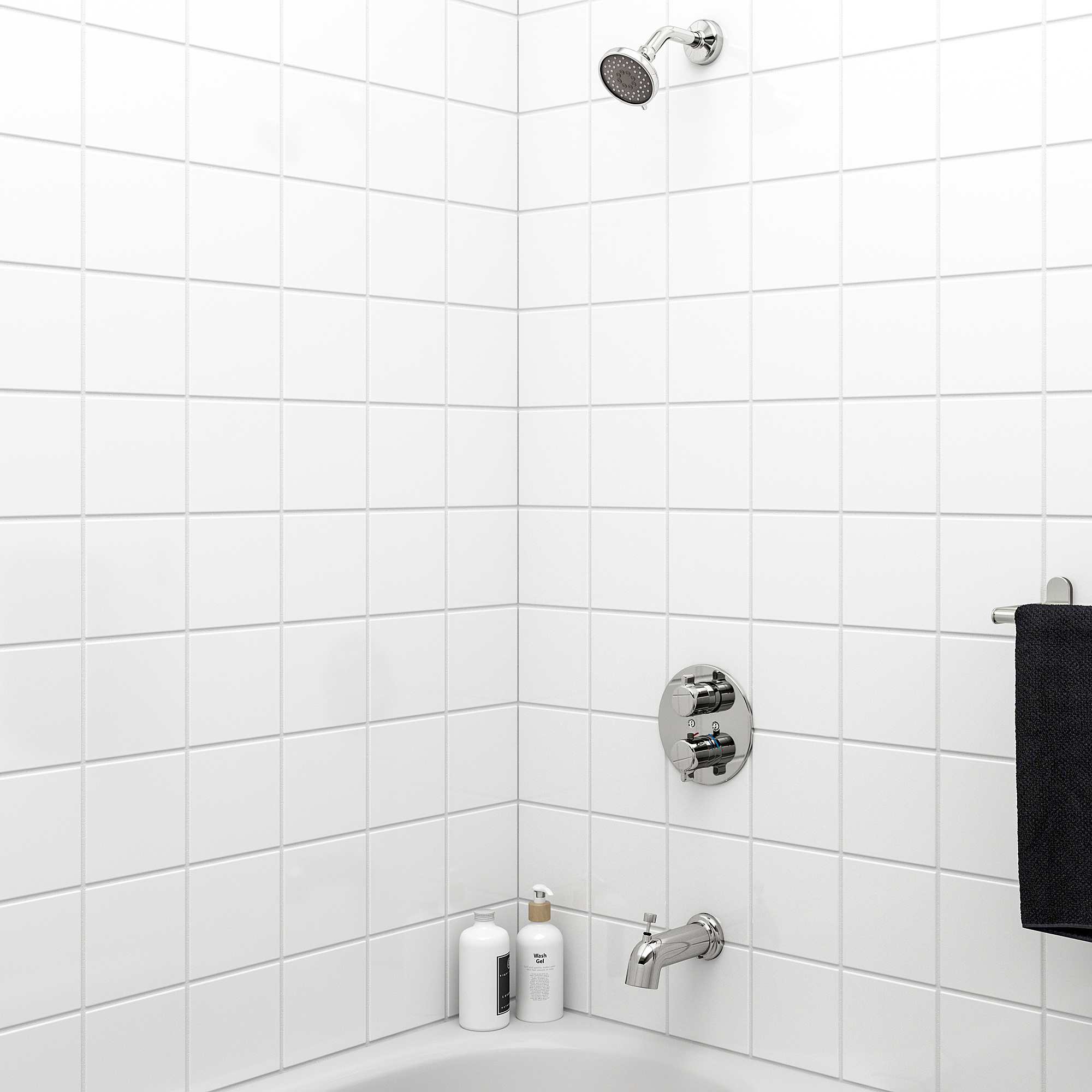

VOXNAN Bath/shwr set w thermostatic mixer, chrome-plated
How to get it

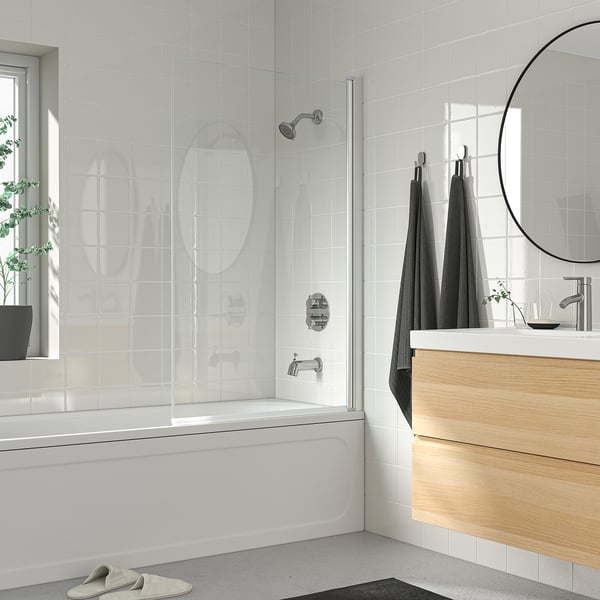

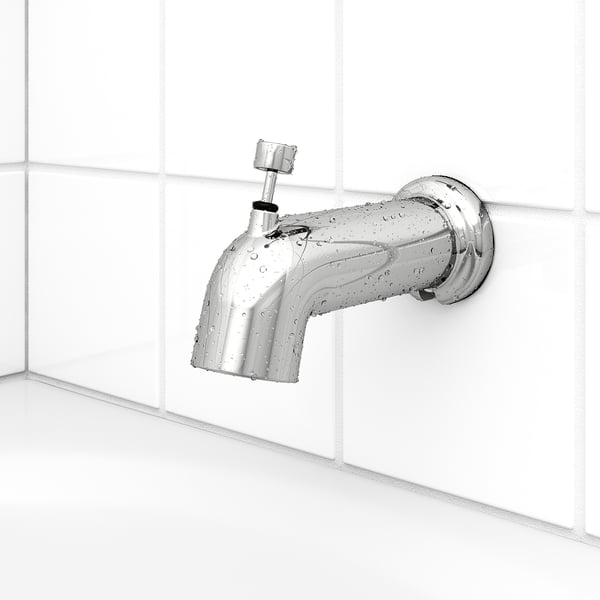

Perfect for the tub as you can easily switch between shower mixer and bath spout. The 38°C safety stop button prevents water from getting too hot.
Product details
10 year guarantee on the mixer and 3 year guarantee on other parts. Read about the terms in the guarantee brochure.

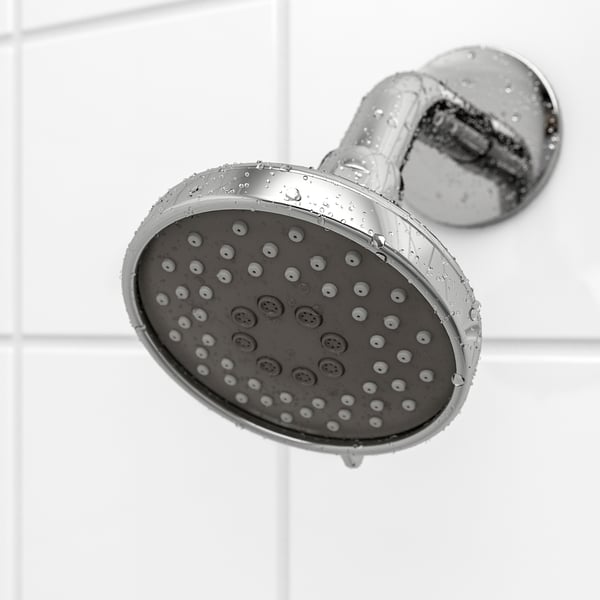

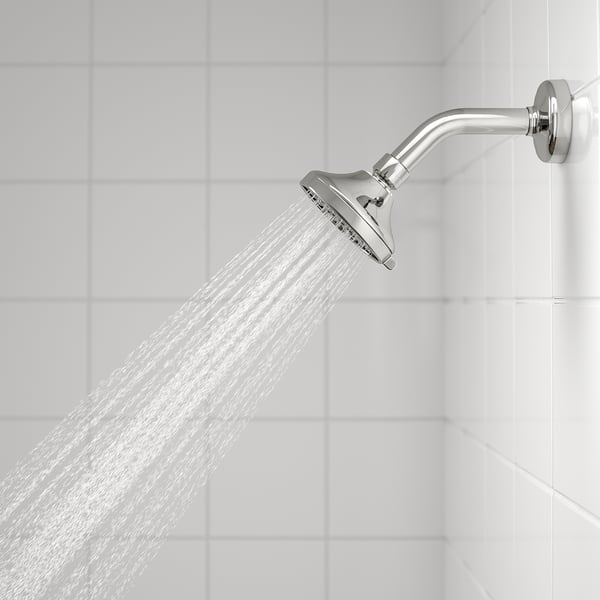

This head shower with full spray function gives a wide and even coverage for a relaxing shower experience.

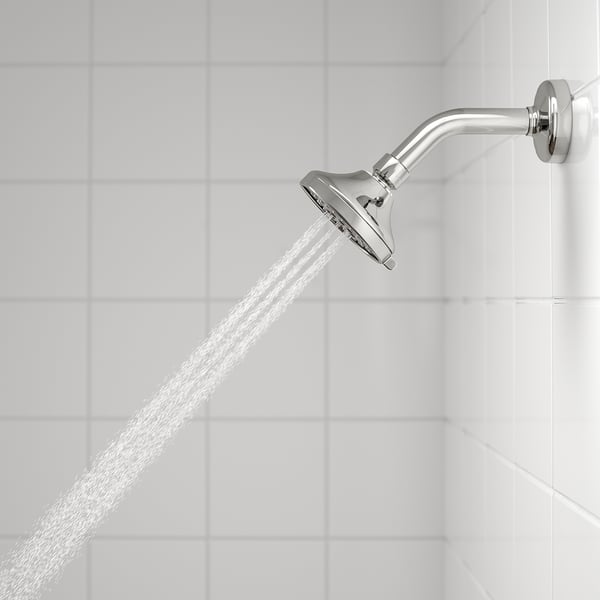

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.

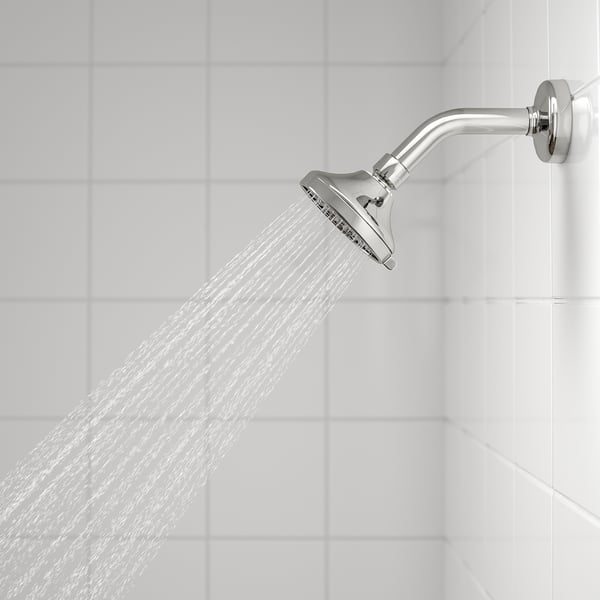

You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.

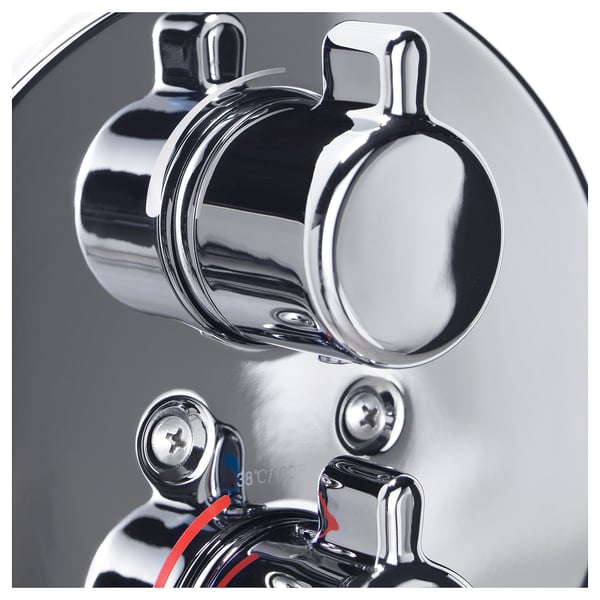

A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.
Easy to clean by rubbing the rubber nozzles on the shower head.
H Preutz/N Karlsson
Good to know
Comes with full, mesh, full/mesh spray functions.
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Materials and care
Material
- Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- ABS plastic, Chrome-plated
- Nozzle:
- Synthetic rubber
- Pipe:
- Stainless steel
- Thermostat body:
- Brass
- Thermostat faceplate:
- Brass, Chrome-plated
- Handle:
- Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Assembly instructions
VOXNAN Bath/shwr set w thermostatic mixer003.426.21Advice and care instructions
VOXNAN Bath/shwr set w thermostatic mixer003.426.21TECHNICAL INFORMATION
VOXNAN
Bath/shwr set w thermostatic mixer, chrome-plated
Article number003.426.21| Type of shower | Built-in thermostatic mixer, Shower Set |
| Max. flow rate at 3 bar,head shower | 6.6 l/min (1.75 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Number of spray functions | 3 |
| Third party certified according to local standards by |

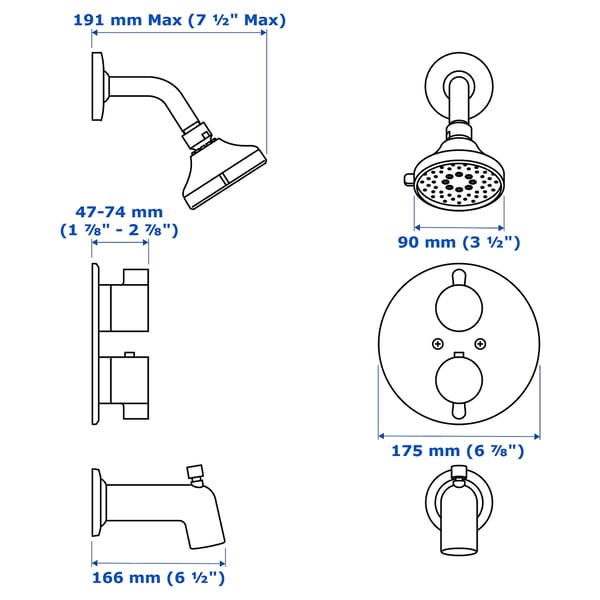

Measurements
- Thermostatic faucet diameter: 175 mm
- Spout, depth: 166 mm
- Headshower diameter: 90 mm
Packaging
VOXNAN
Article number003.426.21- Width: 21 cm
- Height: 16 cm
- Length: 36 cm
- Weight: 4.14 kg
- Package(s): 1
Efficient showers for everyday indulgence
With VOXNAN, BROGRUND and VALLAMOSSE showers, we want to help you save water and energy while enjoying a warm and nice shower. To succeed, we had to find just the right balance between the pressure in the water spray of the showers and water consumption. So how could we find out that the balance was right? It was all about changing into swimwear and turning on the mixer.
But before we got that far ― even before looking at all the technical details ― we interviewed people in different countries about their bathrooms and shower habits. Then we understood how important a few minutes under spraying water can be. Since it's not just about being clean, getting in the shower can also be a way to rinse off stress and unwind ― to take a moment for yourself or just wake up to a new day. When you rub the sleep out of your eyes in the shower, the spraying water naturally helps. But did you know that only 3% of all water on the planet is freshwater? And most of it is actually bound in ice. Since this limited freshwater is a vital resource for all of life, we must help to nurture it.
The engine of the shower
Shower testing in swimwear
Another important key to creating both a comfortable and sustainable shower range is the small washer that sits in the shower arm which regulates the water flow. The challenge for the team was to find just the right balance between the water flow and pressure, so that you can use less water without affecting the shower experience. There was only one way for the team to see if they succeeded: "When we went to the supplier in China to test the first prototypes, we all packed our swimwear," says Antony smiling. With his swimwear on, he tested different water spray functions: full, mesh, mist, massage and various combinations of them. "How people prefer to shower is individual, and with the different streams, we allow everyone to adapt their shower experience. And maybe you'll enjoy showering a little more when you know that it's both water and energy efficient."
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
Function solution
Designed with safety in mind NA
IKEA thermostatic shower mixers have a 38°C safety button that must be deliberately pressed to reach higher temperatures, but will never exceed 43°C – which is safe for human skin. Another smart feature is the “cold touch", anti-scald technology which ensures that the shower mixers will never heat up or cause burns. Whether the preference is modern or more traditional style, IKEA shower mixers offer a great shower experience with highest safety in mind.
