BROGRUND chrome shower set: overhead & handheld showers, thermostatic valve. Modern design, mixer bar shelf.

BROGRUND Shower set with thermostatic mixer, chrome-plated

Modern bathroom shower with BROGRUND head/hand set.

Modern bathroom with BROGRUND shower, hexagonal tiles, white cabinet, sink, mirror. Grey walls, colourful towels, and plants.

Modern rain shower with adjustable handheld chrome BROGRUND, mounted on white tile wall with shampoo bottles and black towel.

Silver shower mixer with 38°c safety stop. Water droplets on shiny surface indicate usage.

Black and white close-up of a modern shower head with mesh and full spray functions, droplets visible on its surface.

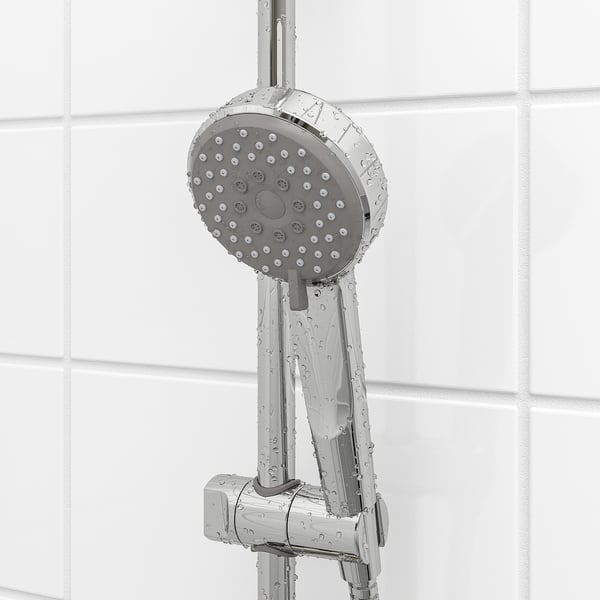

Shower head with mesh and full spray functions visible, mounted on a wall.

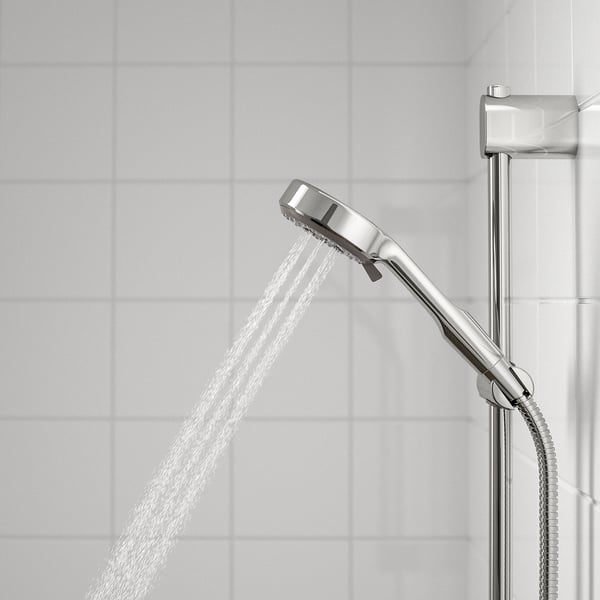

Shower head with full and mesh spray. Ideal for rinsing hair. Cold touch for safety, mounted on holder.

Chrome rain shower head, adjustable, peaceful spray.

A chrome shower head with various spray options, including mesh for thick hair, is shown in use, flowing water against a tiled wall.

Image shows a BROGRUND shower head with water flowing, offering different spray functions and safety.

A running chrome shower head with spray functions on a silver rail, showing water in use.

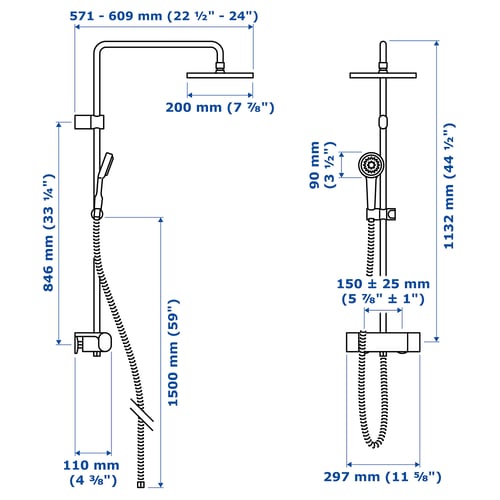

Illustration with measurements for the product: BROGRUND.

BROGRUND Shower set with thermostatic mixer, chrome-plated

Name: BROGRUND Shower set with thermostatic mixer - chrome-plated
Brand: IKEA
SKU: 504.968.85
Availability: InStoreOnly
Rating: 5 (1 reviews)

KD 89

Previous price: KD117

Price does not include shipping costs

How to get it

Checking availability...

BROGRUND

504.968.85

A head/hand shower set with different spray functions. Feel secure with the 38°C safety stop that prevents water from getting too hot, and “cold touch” feature keeps a safe temperature on the mixer bar.

More information

Material
Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
Acetal plastic
Handheld showerhead outer housing/ Overhead shower outer housing:
ABS plastic, Chrome-plated
Nozzle:
Thermoplastic elastomer
Inner hose:
Silicone rubber
Outer hose:
Stainless steel
Pipe:
Brass, Chrome-plated
Rail fitting:
Steel, Zinc, Chrome-plated
Holder:
Acetal plastic, Chrome-plated
Thermostat body:
Brass
Thermostat housing/ Handle:
Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
BROGRUND Shower set with thermostatic mixer504.968.85
Advice and care instructions
BROGRUND Shower set with thermostatic mixer504.968.85

BROGRUND Shower set with thermostatic mixer, chrome-plated

10 year guarantee on the mixer and 3 year guarantee on other parts. Read about the terms in the guarantee brochure.

The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling.

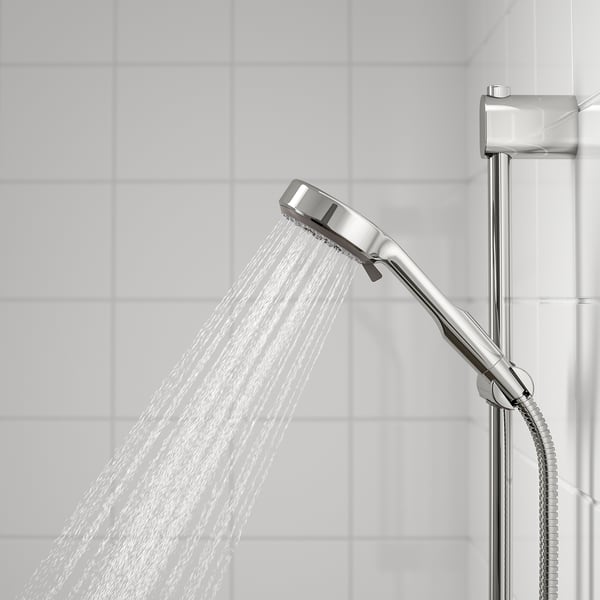

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.

You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.

Easy to clean by rubbing the rubber nozzles on the shower heads.

A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.

The shower mixer has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the mixer bar never heats up and is always safe to touch.

The built-in shelf on the shower mixer is perfect for all those tall shampoo bottles that are often tricky to store in the shower.

You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.

H Preutz/N Karlsson

The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions.
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
150 mm fixed inlet centres.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
The hand shower consumes 6.8 l of water/min. and the head shower consumes 9.5 l of water/min.
Material
Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
Acetal plastic
Handheld showerhead outer housing/ Overhead shower outer housing:
ABS plastic, Chrome-plated
Nozzle:
Thermoplastic elastomer
Inner hose:
Silicone rubber
Outer hose:
Stainless steel
Pipe:
Brass, Chrome-plated
Rail fitting:
Steel, Zinc, Chrome-plated
Holder:
Acetal plastic, Chrome-plated
Thermostat body:
Brass
Thermostat housing/ Handle:
Zinc, Chrome-plated
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).
