UNDERVERK Built-in extractor hood, stainless steel, 60 cm
Top seller
UNDERVERK Built-in extractor hood, stainless steel, 60 cm
UNDERVERK Built-in extractor hood, stainless steel, 60 cm
UNDERVERK Built-in extractor hood, stainless steel, 60 cm
UNDERVERK Built-in extractor hood, stainless steel, 60 cm
UNDERVERK Built-in extractor hood, stainless steel, 60 cm
UNDERVERK Built-in extractor hood, stainless steel, 60 cm
UNDERVERK Built-in extractor hood, stainless steel, 60 cm

UNDERVERK Built-in extractor hood, stainless steel, 60 cm

JD 350
Price incl. VAT
Flexible pipe for fan and charcoal filter sold separately.

Must be completed with

How to get it

  • 5 year guarantee

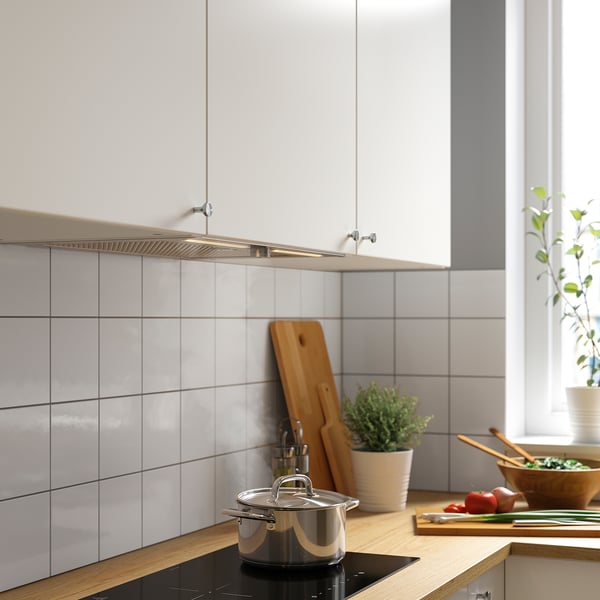

Hidden inside your 60 cm cabinet, this powerful hood works in secret – just choose the door you like to get a uniform look in the kitchen. The LED light source provides even lighting over the hob.

Article number804.432.11

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

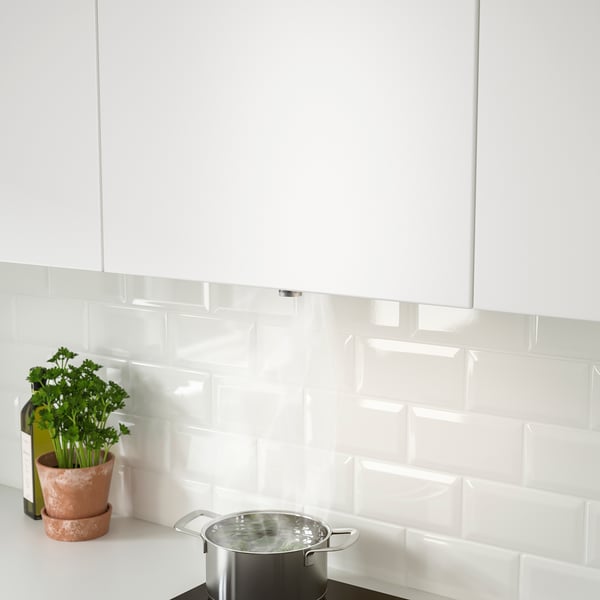

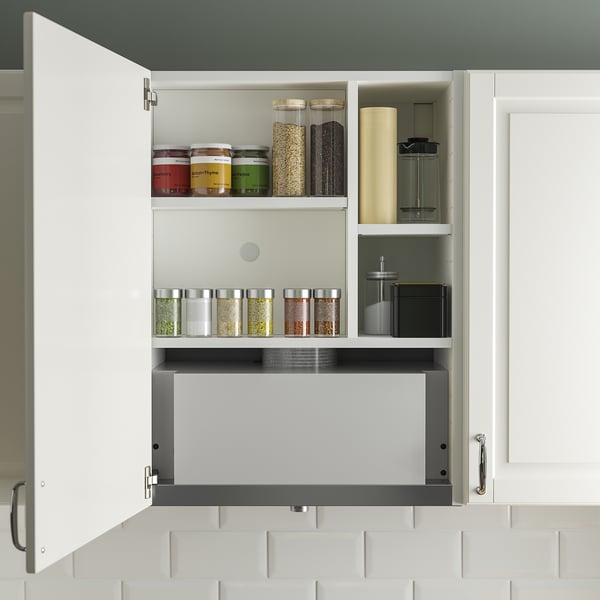

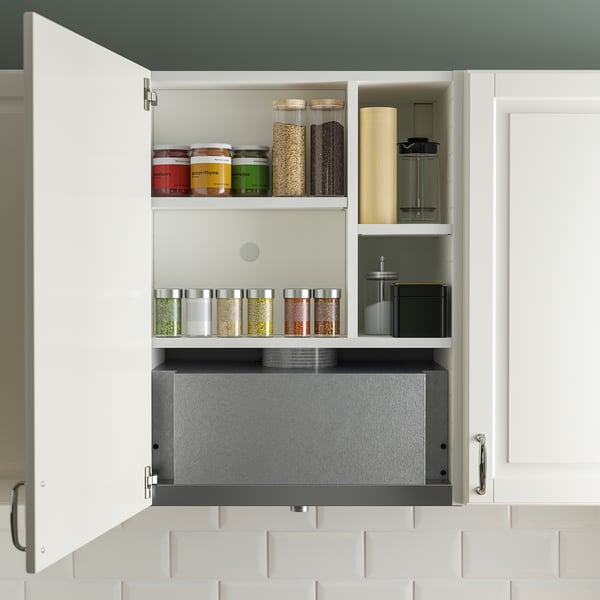

Fully integrated; hidden behind your kitchen cabinet door, creating a uniform expression.

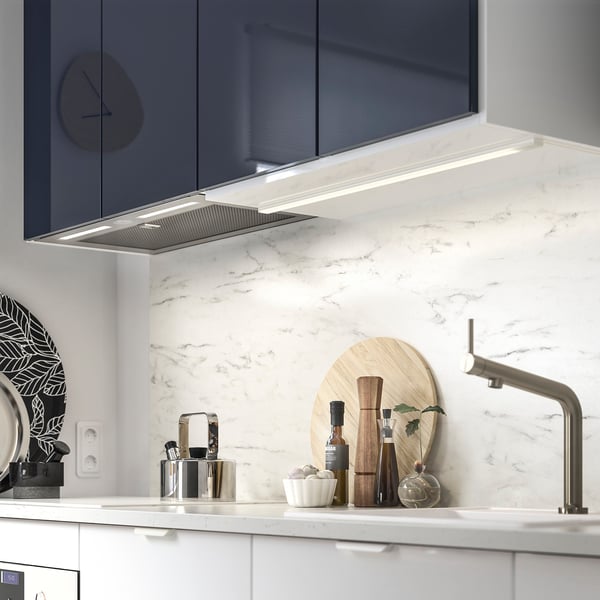

LED light source included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

Designer

IKEA of Sweden

  • Extraction rate in exhausting mode: 630 m³/h.

    Noise level at max. exhaust speed: 64 dB (A).

    Extraction rate in re-circulation mode: 365 m³/h.

    Noise level at max. re-circulation speed: 79 dB (A).

    Voltage: 220-240V.

    Wall mounted extractor hood with 3 different speeds.

    Country of origin: Italy.

    This product bears the ECAS mark.

    Cabinet, front(s), hinges and knob(s) or handle(s) sold separately.

    For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

    For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.

    Developed to fit into METOD kitchen system.

    Flexible pipe for fan and charcoal filter sold separately.

  • Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • This product bears the CE mark.

  • Assembly instructions

    UNDERVERK Built-in extractor hood804.432.11

    Advice and care instructions

    UNDERVERK Built-in extractor hood804.432.11UNDERVERK Built-in extractor hood804.432.11

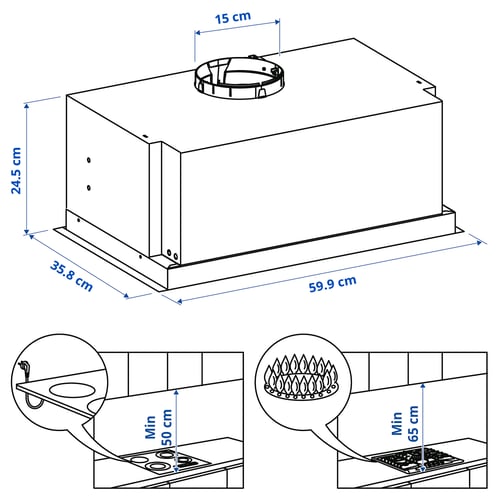

Measurements

  • Width: 59.9 cm
  • Depth: 35.8 cm
  • Height: 24.5 cm
  • Weight: 11.00 kg
  • Cord length: 110.0 cm
  • Extraction rate: 625 m³/h
  • Motor power: 250 W

  • UNDERVERK

    Article number804.432.11
    • Width: 43 cm
    • Height: 34 cm
    • Length: 64 cm
    • Weight: 10.00 kg
    • Package(s): 1

Function solution

Sound levels

Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
