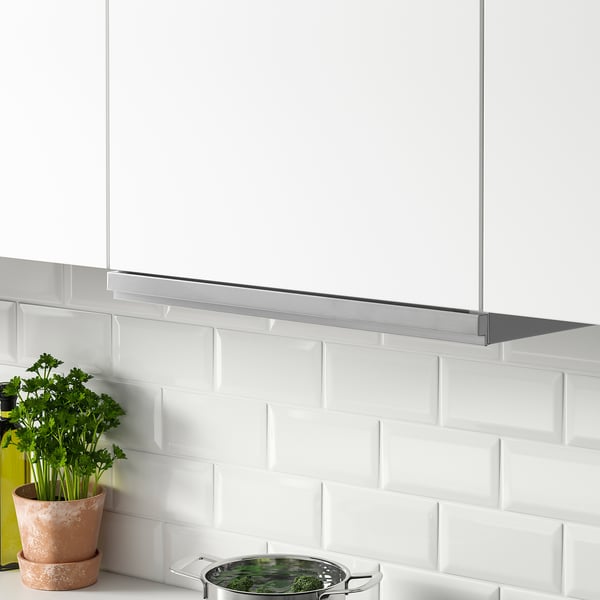

Prefer a hidden hood? UTDRAG built-in extractor hood with LED lighting is mounted almost invisibly in a wall cabinet. You start it and adjust the extraction area by pulling out the hood’s lower part.

Article Number903.923.29

Product details

5 year guarantee. Read about the terms in the guarantee brochure.LED light source included; effectively illuminates the cooking surface and provide energy saving.Pulls out to provide a larger exhaust area.You can easily remove and clean the grease filter in the dishwasher.Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.Energy efficiency class: B.Extraction rate in exhausting mode: 340 m³/h.Noise level at max. exhaust speed: 67 dB (A).Extraction rate in re-circulation mode: 140 m³/h.Noise level at max. re-circulation speed: 72 dB (A).Motor power: 110W.Voltage: 220-240V.For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 120 charcoal filter.This product bears the CE mark.Built in extractor hood with 3 different speeds.Designer

IKEA of Sweden

Technical information

UTDRAG

Built-in extractor hood

Brand nameIKEA
Model identifierUTDRAG 903.923.29
Annual Energy Consumption39
Energy efficiency classB
Fluid Dynamic Efficiency18,1
Fluid Dynamic Efficiency classC
Lighting Efficiency16
Lighting Efficiency classD
Grease Filtering Efficiency85,1
Grease Filtering Efficiency classB
Air flow at minimum speed in normal use170
Air flow at maximum speed in normal use340
Air flow at intensive or boost settingN/A
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use54
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use67
Airborne acoustical A-weighted sound power emissions at intensive or boost settingN/A
Power consumption in off mode0
Power consumption in standby moden.a.

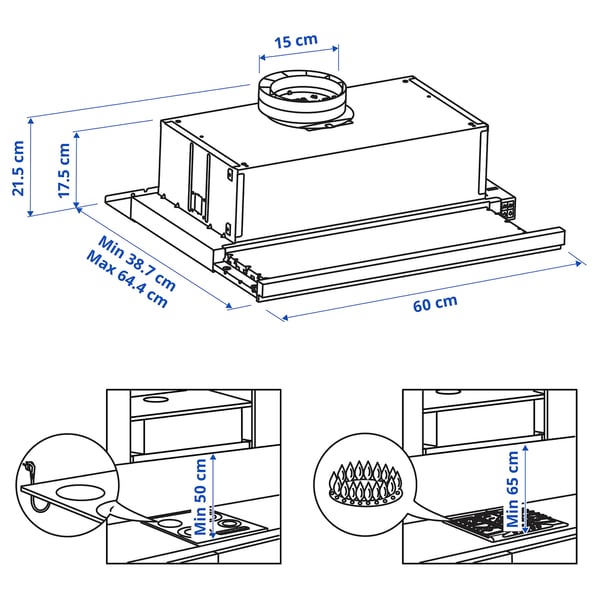

Product size

Width:
60.0 cm
Height:
21.5 cm
Min. depth:
38.7 cm
Max. depth:
64.4 cm
Cord length:
109.0 cm
Weight:
7.60 kg

UTDRAG
Built-in extractor hood, stainless steel60 cm

Included in this price is a contribution to recycling costs of €5
150
B
Available to order online
Checking stock
UTDRAG Built-in extractor hood, stainless steel, 60 cm

UTDRAG

150

Energy class

IKEAUTDRAG 903.923.29B39kWh/annumCDB67dB
Brand nameIKEA
Model identifierUTDRAG 903.923.29
Annual Energy Consumption39kWh/annum
Energy efficiency classB
Fluid Dynamic Efficiency18,1%
Fluid Dynamic Efficiency classC
Lighting Efficiency16Lux/watt
Lighting Efficiency classD
Grease Filtering Efficiency85,1%
Grease Filtering Efficiency classB
Air flow at minimum speed in normal use170m³/h
Air flow at maximum speed in normal use340m³/h
Air flow at intensive or boost settingN/Am³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use54dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use67dB
Airborne acoustical A-weighted sound power emissions at intensive or boost settingN/AdB
Power consumption in off mode0Watt
Power consumption in standby moden.a.Watt
