7 LAGAN images
Skip images

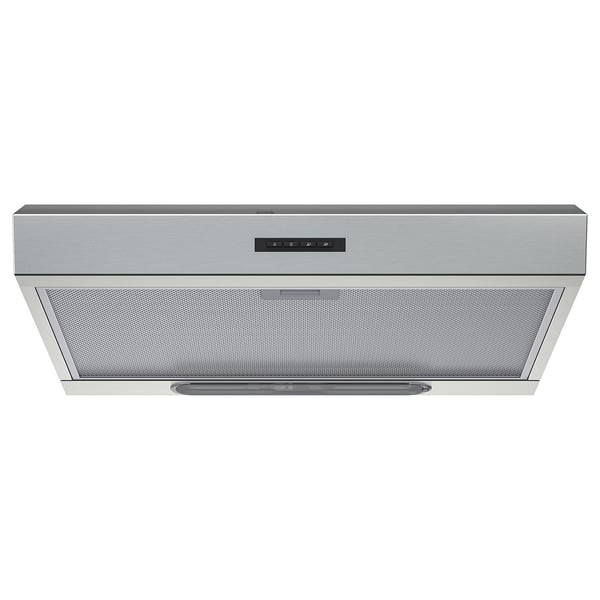

Stainless steel kitchen hood with led lights, removable grease filter, front controls. Modern design, suitable for wall cabinet installation.

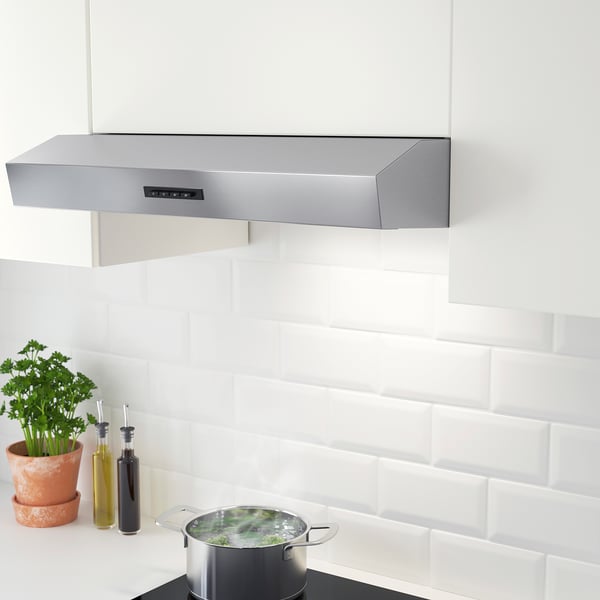

Modern kitchen with stainless hood, pots, plants, and veggies.

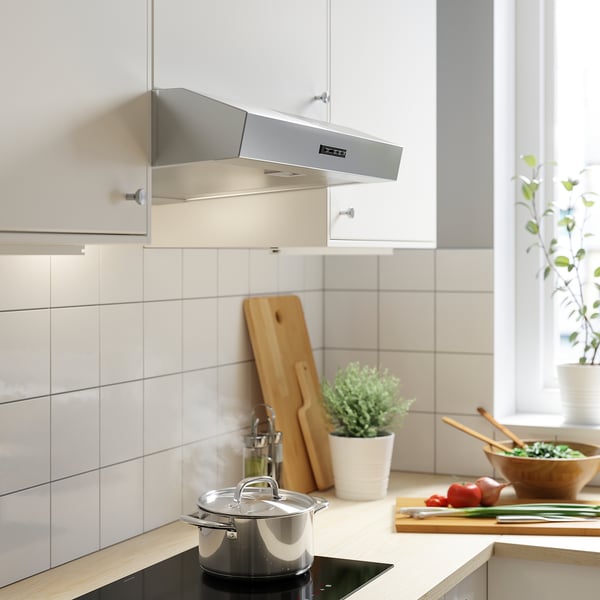

Stainless steel vent with led light over stove, controlling odors and steam.

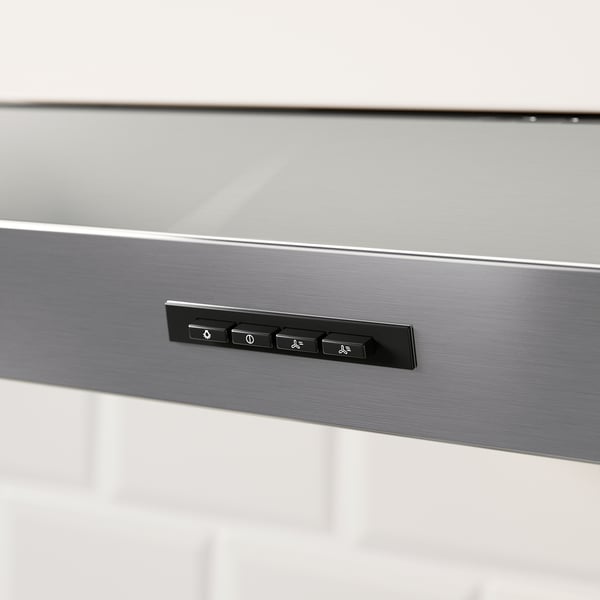

Stainless steel kitchen hood control panel with led light, displaying three speed settings and power button.
Modern stainless steel range hood with mesh filter and control panel. Led light included.

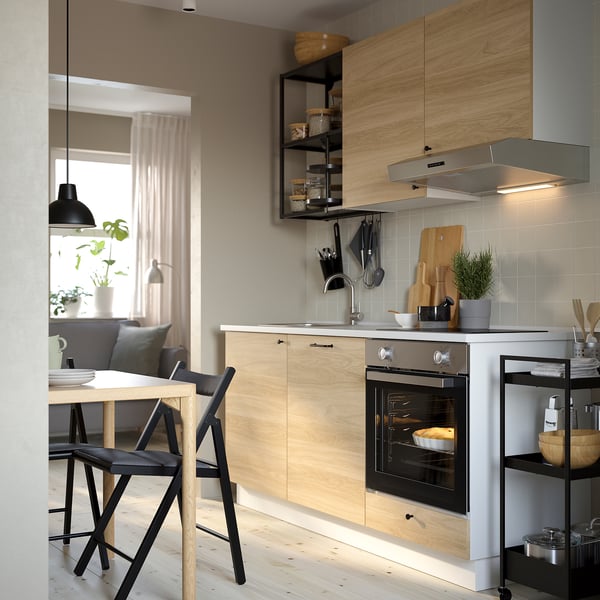

Modern kitchen with light wooden cabinets, black chairs, stainless steel oven, and a hanging light fixture.
Illustration with measurements for the product: LAGAN.

LAGAN Wall mounted extractor hood, stainless steel, 60 cm

Price € 85
Product fiche
(3)
Flexible pipe for fan and charcoal filter sold separately.

Must be completed with

How to get it

White Goods Collection Service

In accordance with the WEEE Regulations we can collect your old appliances for free, on a like for like, one for one basis. See more here

Stainless steel hood with LED lighting and all the basic functions you need. It can be mounted in a wall cabinet for a uniform look in the kitchen. Combines with LAGAN oven and LAGAN hob.

Article Number203.923.23

Product details

The included LED bulb provides energy saving.

Control panel placed at front for easy access and use.

You can easily remove and clean the grease filter in the dishwasher.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer

IKEA of Sweden

  • Wall mounted extractor hood with 3 different speeds.

    Extraction rate in exhausting mode: 322 m³/h.

    Noise level at max. exhaust speed: 73 dB (A).

    Extraction rate in re-circulation mode: 116 m³/h.

    Noise level at max. re-circulation speed: 77 dB (A).

    Voltage: 220-240V.

    For installation to a valve: to be completed with NYTTIG tube 125 flexible pipe for extractor hood.

    For recirculation installation: to be completed with charcoal filter NYTTIG FIL 900.

    Flexible pipe for fan and charcoal filter sold separately.

    IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com

  • Care

    Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

    Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

  • This product bears the UK CA mark.This product bears the CE mark.

  • Assembly instructions

    LAGAN Wall mounted extractor hood203.923.23

    Advice and care instructions

    LAGAN Wall mounted extractor hood203.923.23LAGAN Wall mounted extractor hood203.923.23LAGAN Wall mounted extractor hood203.923.23LAGAN Wall mounted extractor hood203.923.23

Technical information

LAGAN

Wall mounted extractor hood, stainless steel, 60 cm

Article Number203.923.23
Brand NameIKEA
Model IdentifierLAGAN 20392323
Annual energy consumption64 kWh/annum
Energy efficiency classC
Fluid Dynamic Efficiency15,5 %
Fluid Dynamic Efficiency classD
Lighting Efficiency21 Lux/watt
Lighting Efficiency classB
Grease Filtering Efficiency66 %
Grease Filtering Efficiency classD
Air flow at minimum speed in normal use145 m³/h
Air flow at maximum speed in normal use320 m³/h
Air flow at intensive or boost settingn.a m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use55 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use73 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost settingn.a dB
Power consumption in Off moden.a Watt
Power consumption in standby moden.a Watt

Weight & measurements

  • Width: 60 cm
  • Depth: 51 cm
  • Min. height extraction: 13 cm
  • Weight: 6.40 kg
  • Cord length: 133.0 cm
  • Motor power: 140 W

  • LAGAN

    Article Number203.923.23
    • Width: 54 cm
    • Height: 15 cm
    • Length: 62 cm
    • Weight: 6.10 kg
    • Package(s): 1

Reviews

Okay for the priceBertusFirst one that I received, wasn't working, but IKEA have a amazing support service and in a few days I received another one. Works great!5
No back exit.JanIt has no rear / back exit. So pipe always needs to go via cabinet on top. Lossing much soace and extra work.2
Good looking and useful TetyanaVery pleased with my purchase, it looks good and does the job.5

Customer reviews

4Average rating
3Reviews
Okay for the price
5
First one that I received, wasn't working, but IKEA have a amazing support service and in a few days I received another one. Works great!
Bertus, Ireland
