LAGAN Wall mounted extractor hood, stainless steel, 60 cm
Must be completed with
How to get it
Stainless steel hood with LED lighting and all the basic functions you need. It can be mounted in a wall cabinet for a uniform look in the kitchen. Combines with LAGAN oven and LAGAN hob.
Product details
The included LED bulb provides energy saving.
Control panel placed at front for easy access and use.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Good to know
Wall mounted extractor hood with 3 different speeds.
Extraction rate in exhausting mode: 322 m³/h.
Noise level at max. exhaust speed: 73 dB (A).
Extraction rate in re-circulation mode: 116 m³/h.
Noise level at max. re-circulation speed: 77 dB (A).
Voltage: 220-240V.
For installation to a valve: to be completed with NYTTIG tube 125 flexible pipe for extractor hood.
For recirculation installation: to be completed with charcoal filter NYTTIG FIL 900.
Flexible pipe for fan and charcoal filter sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety and compliance
Assembly and documents
Assembly instructions
LAGAN Wall mounted extractor hood203.923.23Technical information
LAGAN
Wall mounted extractor hood, stainless steel, 60 cm
Article Number203.923.23| Brand Name | IKEA |
| Model Identifier | LAGAN 20392323 |
| Annual energy consumption | 64 kWh/annum |
| Energy efficiency class | C |
| Fluid Dynamic Efficiency | 15,5 % |
| Fluid Dynamic Efficiency class | D |
| Lighting Efficiency | 21 Lux/watt |
| Lighting Efficiency class | B |
| Grease Filtering Efficiency | 66 % |
| Grease Filtering Efficiency class | D |
| Air flow at minimum speed in normal use | 145 m³/h |
| Air flow at maximum speed in normal use | 320 m³/h |
| Air flow at intensive or boost setting | n.a m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 55 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 73 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | n.a dB |
| Power consumption in Off mode | n.a Watt |
| Power consumption in standby mode | n.a Watt |

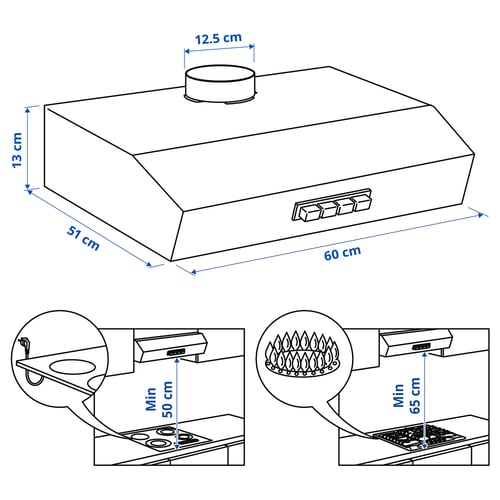

Weight & measurements
- Width: 60 cm
- Depth: 51 cm
- Min. height extraction: 13 cm
- Weight: 6.40 kg
- Cord length: 133.0 cm
- Motor power: 140 W
Package details
LAGAN
Article Number203.923.23- Width: 54 cm
- Height: 15 cm
- Length: 62 cm
- Weight: 6.10 kg
- Package(s): 1
Reviews
Customer reviews
First one that I received, wasn't working, but IKEA have a amazing support service and in a few days I received another one. Works great!Quality
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
