- Brand NameIKEA
- Type of tapWash-basin mixer tap with sensor
- Max. flow rate at 3 bar5.7 l/min
- Annual energy consumption415 kWh/p.a.
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure1 bar (0,1MPa) (14.5 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. countertop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length575 mm (22 3/4")
- Hose connection sizeG 3/8" (R10)
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo
- Amount of batteries4 pcs
- Battery typeAA
- Third party certified according to local standards by
See all BROGRUND series products

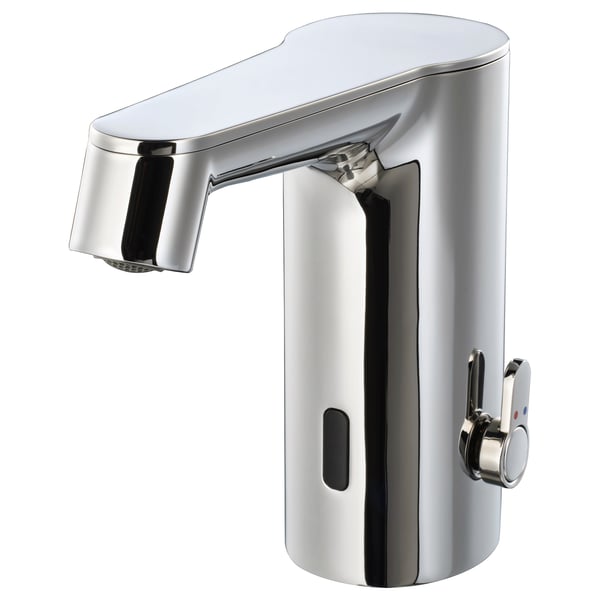

BROGRUND Wash-basin mixer tap with sensor, chrome-plated
Price 179,-
Price incl. VAT
How to get it
Checking availability...It's OK to change your mind
Return within 365 days for a full refund*. Learn more.
BROGRUND
004.233.54Like magic, the water turns on at the slightest hand movement in front of the tap, at a pre-set temperature. A clean and simple design that’s hygienic too, since you don’t need to touch the tap.
Product features
More information
Material
- Body:
- Zinc, Chrome-plated
- Inner body:
- Brass
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Assembly instructions
BROGRUND Wash-basin mixer tap with sensor004.233.54
BROGRUND Wash-basin mixer tap with sensor, chrome-plated
10 year guarantee. Read about the terms in the guarantee brochure.

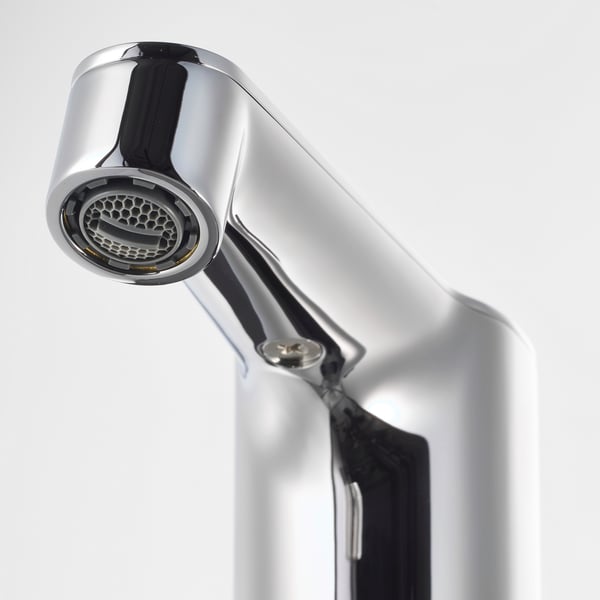

Built-in pressure compensating aerator keeps the water flow just right and enables water-efficiency.
Designer
H Preutz/N Karlsson
A tool is included that makes it easy to install the mixer tap in place.
Connection hoses with 3/8" connection included. Connection length: 60 cm.
4 batteries (LR6 AA 1.5V) included.
Max. temperature hot water system 80°C/176°F.
Replacement batteries are available in most stores where alkaline batteries are sold.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.

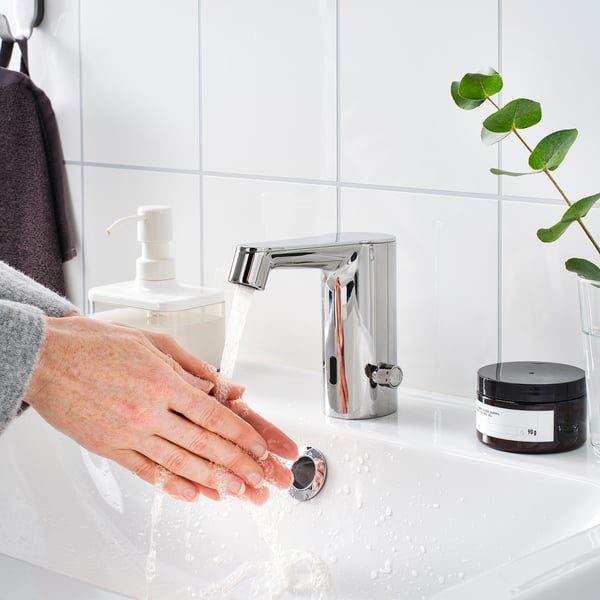

The water turns on automatically when the sensor detects your hands or an object in front of it, and turns off automatically 2 seconds after removing them.
The water temperature is controlled using the lever on the side of the mixer tap.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Material
- Body:
- Zinc, Chrome-plated
- Inner body:
- Brass
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
- Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
BROGRUND Wash-basin mixer tap with sensor004.233.54
- 004.233.54
1 × BROGRUND

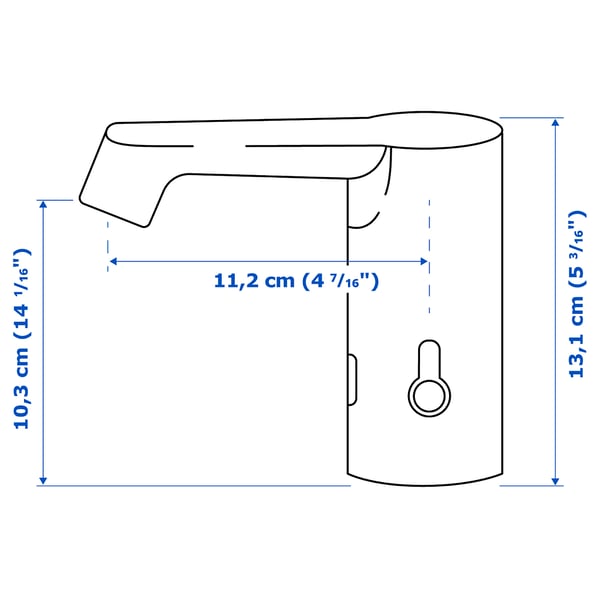

Wash-basin mixer tap with sensor- Width: 21 cm
- Height: 7 cm
- Length: 35 cm
- Weight: 1.65 kg
Customer reviews
3.7Average rating
33Reviews
3.7Average rating
33Reviews
Related products
Explore more options
Recommended for you
Energy and resources

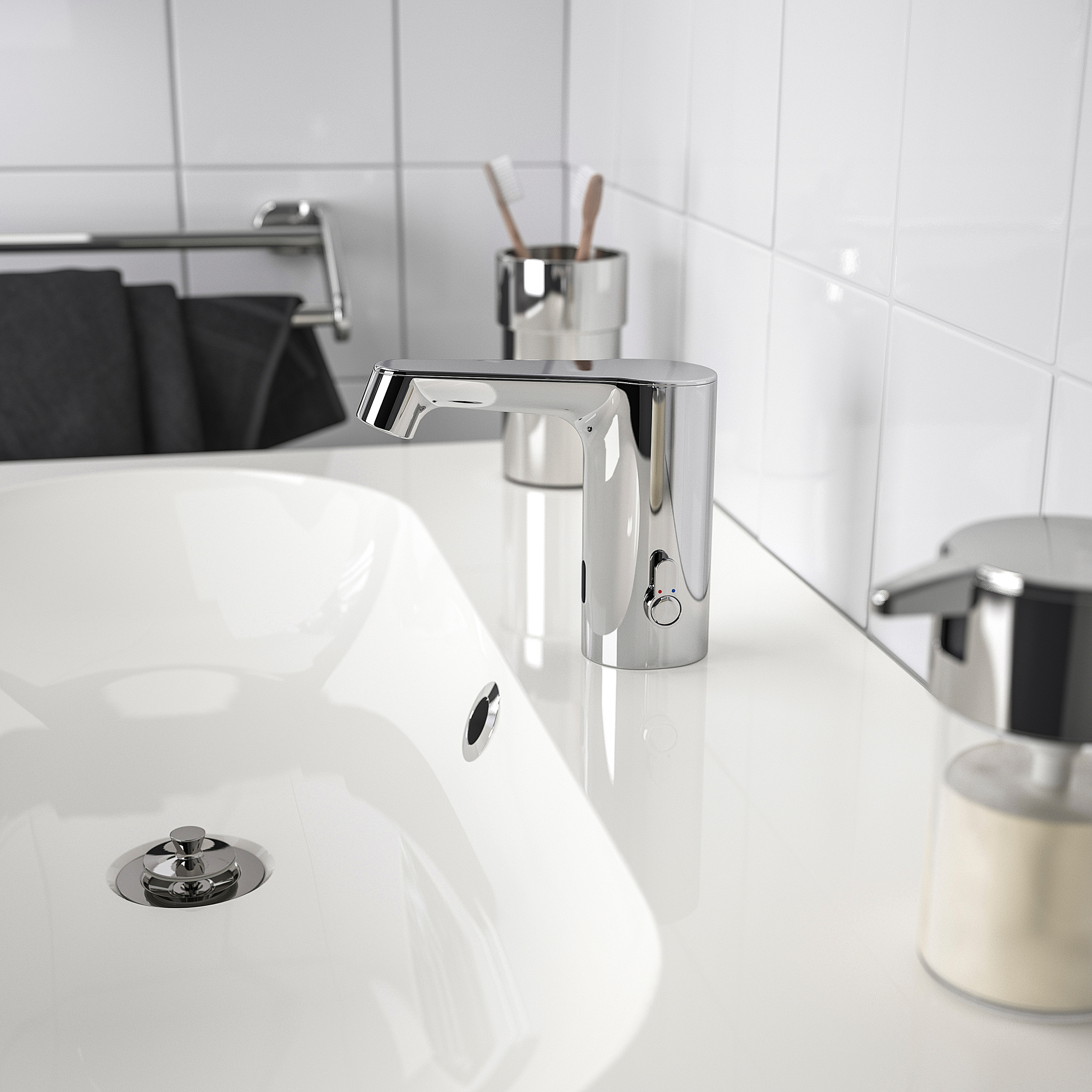

Hygienic and convenient - Magic at the slightest movement of the hand
Morning rush hour can get a bit messy with all the activities around the wash-basin, which is sometimes shared by several people. BROGRUND wash-basin mixer tap with sensor makes things easier and more hygienic since the water turns on with a slight hand movement and then turns off automatically – without touching the mixer tap. No more puddles of water on or around the tap from wet hands – and the temperature is conveniently pre-set using the small lever on the side.
Material
What are zinc and zamak?
Zinc is a metallic element while zamak is a mixture of zinc, aluminium, magnesium and copper. Both are durable materials and easy to cast into different shapes. They are good at conducting heat and electricity. Objects made of zinc or zamak are often given a surface treatment to resemble metals like gold, brass or stainless steel. Both zinc and zamak retain their good properties when they are recycled to become new objects.
