10 year guarantee
Comfy and secure with a 38°C safety stop to prevent water from getting too hot and a “cold touch” feature to ensure a safe temperature on the mixer bar. The built-in shelf keeps shampoo close-by.
Product Details
10 year guarantee. Read about the terms in the guarantee brochure.

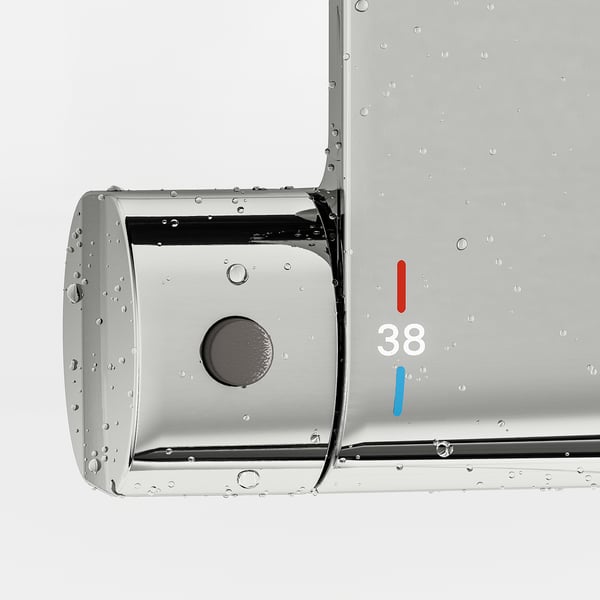

A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.

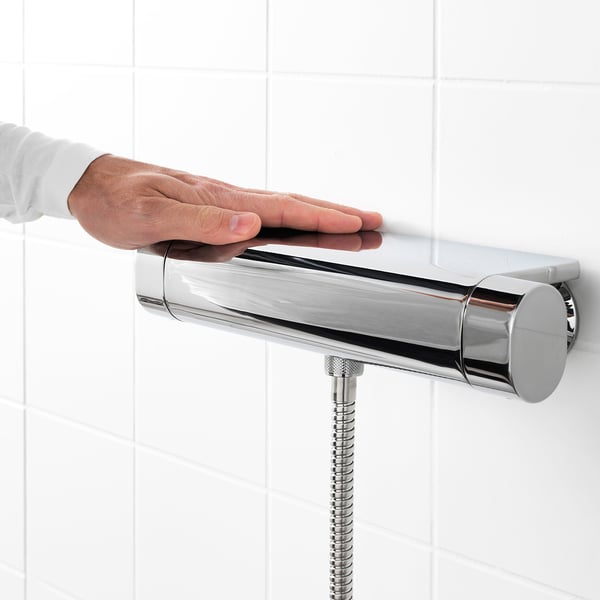

The shower mixer has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the mixer bar never heats up and is always safe to touch.

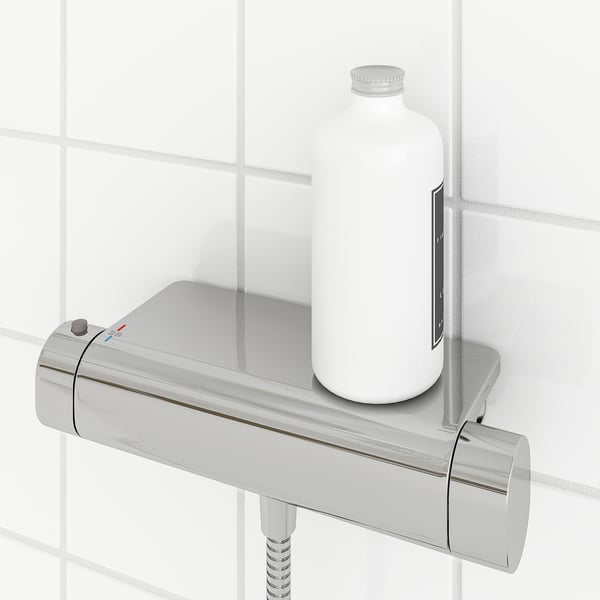

The built-in shelf on the shower mixer is perfect for all those tall shampoo bottles that are often tricky to store in the shower.
Chrome-plated brass is a hard and durable surface that is easy to clean.
H Preutz/N Karlsson
Good to know
Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
150 mm fixed inlet centres.
Wall fittings included.
The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
May be combined with head and hand shower kit or riser rail with hand shower.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Thermostat body:
- Reinforced polyamide plastic
- Thermostat housing/ Handle:
- Zinc, Chrome-plated
Care
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety & compliance
Assembly & documents
Assembly instructions
BROGRUND Thermostatic shower mixer804.799.69Advice & Care instructions
BROGRUND Thermostatic shower mixer804.799.69BROGRUND Thermostatic shower mixer804.799.69Measurements

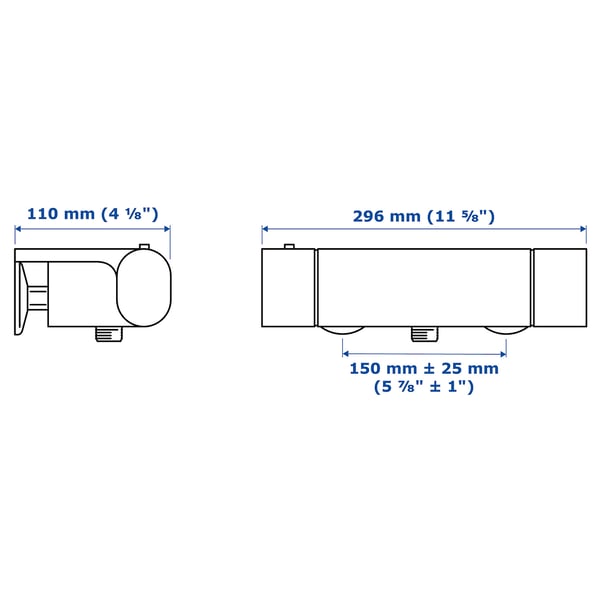

- Connection centre distance: 150 mm
- Width: 300 mm
- Depth: 110 mm
Packaging
BROGRUND
Article number804.799.69- Width: 16 cm
- Height: 8 cm
- Length: 35 cm
- Weight: 3.32 kg
- Package(s): 1
