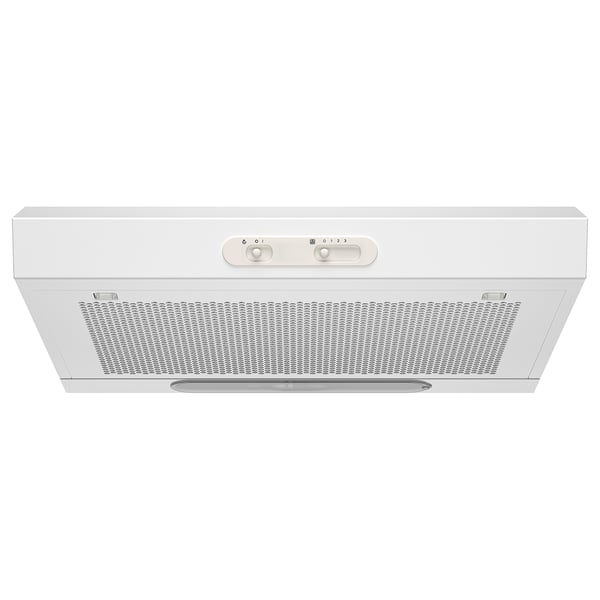

LAGAN Wall mounted extractor hood, white,
How to get it
Kitchen hood in white with LED lighting and all the basic functions you need. It can be mounted in a wall cabinet for a uniform look in the kitchen. Combines with LAGAN oven and LAGAN hob.
Article number105.093.28Product details
The included LED bulb provides energy saving.
Control panel placed at front for easy access and use.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Extraction rate in exhausting mode: 273 m³/h.
Noise level at max. exhaust speed: 71 dB (A).
Extraction rate in re-circulation mode: 75 m³/h.
Noise level at max. re-circulation speed: 71 dB (A).
Voltage: 220-230V.
For installation to a valve: to be completed with NYTTIG tube 125 flexible pipe for extractor hood.

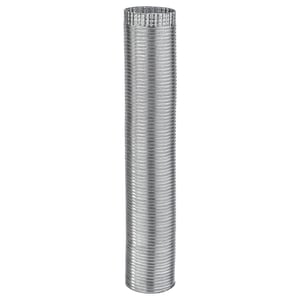

For recirculation installation: to be completed with NYTTIG TUB 125 flexible pipe and NYTTIG FIL 900 charcoal filter.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Wall mounted extractor hood with 3 different speeds.
Flexible pipe for fan and charcoal filter sold separately.
Power supply cable with plug included.
- Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
- Assembly instructionsLAGAN Wall mounted extractor hood105.093.28

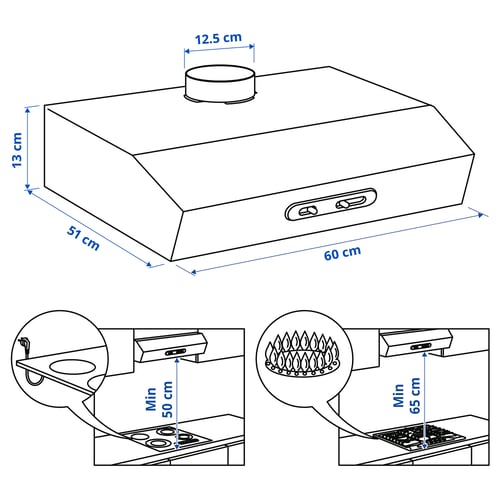

Measurements
Width: 60 cm
Depth: 51 cm
Height: 13 cm
Cord length: 133.0 cm
Weight: 7.20 kg
Motor power: 115 W
- LAGANArticle number105.093.28
Width: 54 cm
Height: 15 cm
Length: 62 cm
Weight: 7.12 kg
Package(s): 1
