ROGESTAD Induction hob, IKEA 500 black, 78 cm

Hob with induction cooking zones:

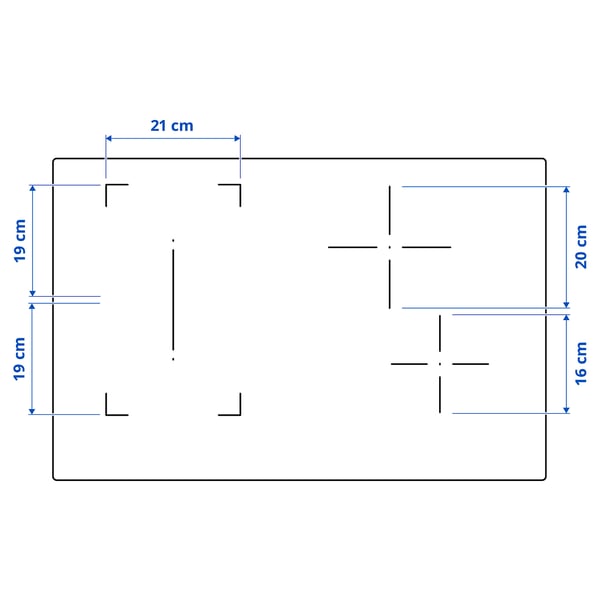

Right front: 16 cm – 1400W, booster 2100W.

Left front: 21x19 cm – 2100W, booster 3000W.

Left rear: 21x19cm – 2100W, booster 3000W.

Right rear: 20 cm - 2300W, booster 3000W.

Voltage: 220-240V.

Connection rating: 7400W.

Current: 2x16A or 1x32A.

Number of zones: 4.

Pause.

Child lock.

Timer.

Booster (4 zones).

Bridge function.

Touch and slide.

Cord/cable not included. Wired-in installation. Installation must be made by a qualified electrician or specialist.

When installing your hob in a base cabinet with drawers, complete with NYTTIG hob separator for drawer. The protective barrier prevents reaching the hob from below and getting burned.

Cooking zones are grouped (left or right) and connected to phases, each with a maximum power supply. When using more than one zone connected to the same phase, the hob divides the power between them.

The power setting of the last selected cooking zone is prioritised. Power to the previously activated cooking zone is reduced to match the maximum supply.

You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.

Induction hobs requires cookware with magnetic base.

The hob may produce low humming, whistling or ticking sounds. These sounds are caused by the induction technology and they are completely normal.
