- Brand NameIKEA
- Model IdentifierMÅNGSBO 90609116
- Annual energy consumption27 kWh/annum
- Energy efficiency classA+++
- Fluid Dynamic Efficiency40,5 %
- Fluid Dynamic Efficiency classA
- Lighting Efficiency72 Lux/watt
- Lighting Efficiency classA
- Grease Filtering Efficiency80 %
- Grease Filtering Efficiency classC
- Air flow at minimum speed in normal use350 m³/h
- Air flow at maximum speed in normal use450 m³/h
- Air flow at maximum speed in normal use, recirculation250 m³/h
- Air flow at intensive or boost setting740 m³/h
- Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use49 dB
- Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use55 dB
- Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation66 dB
- Airborne acoustical A-weighted sound power emissions at intensive or boost setting66 dB
- Power consumption in Off mode0,49 Watt
9 MÅNGSBO images
Skip images

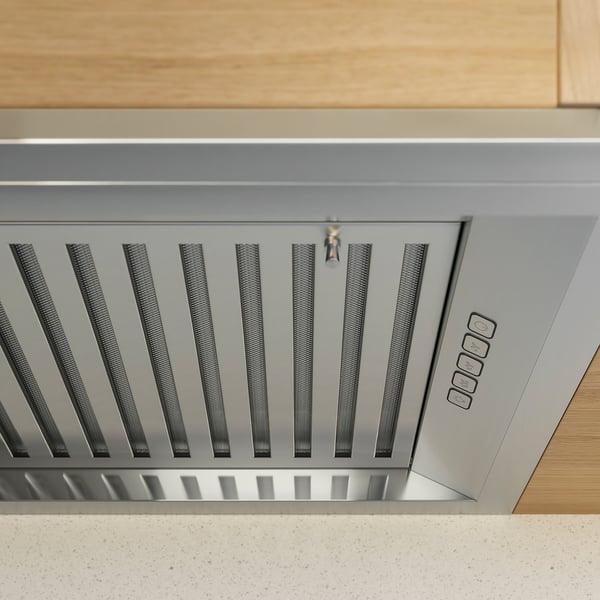

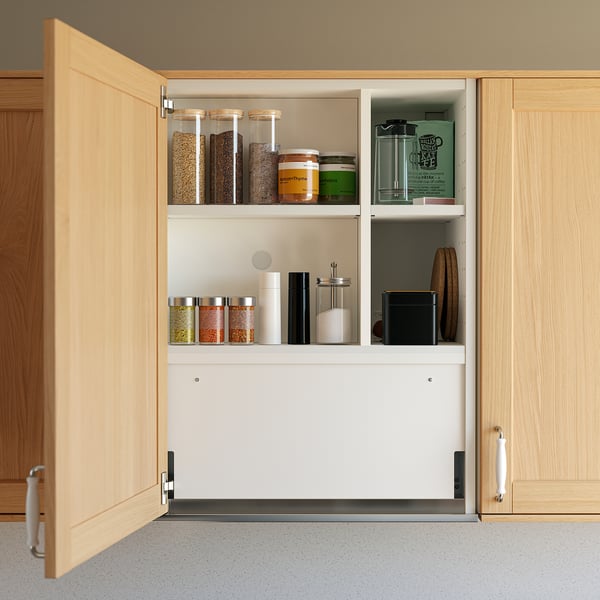

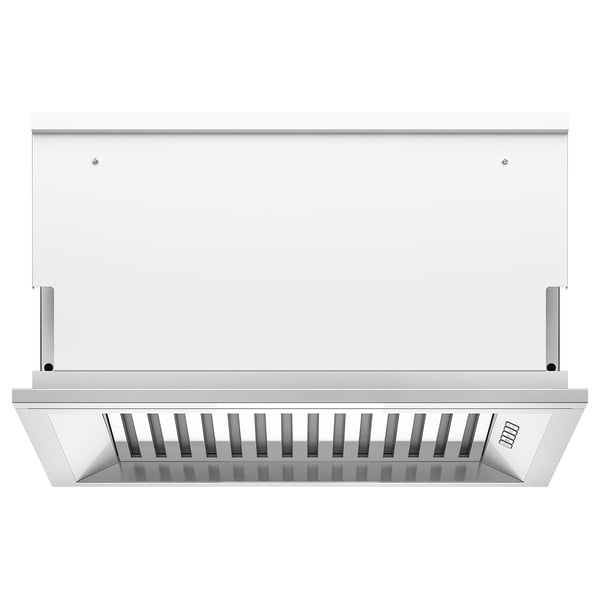

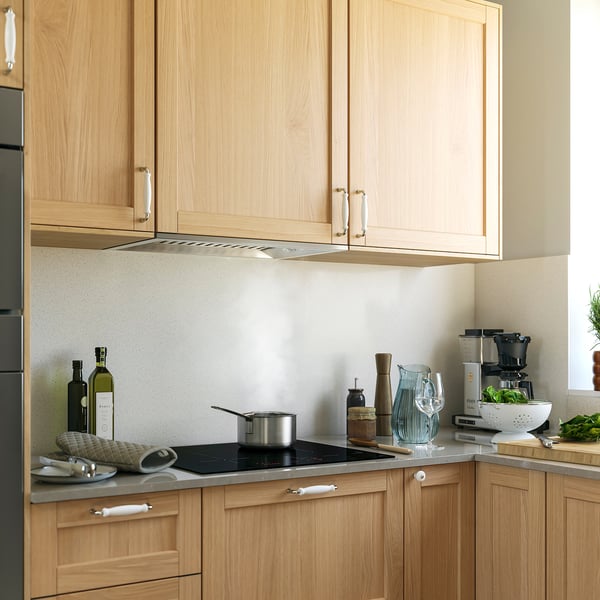

MÅNGSBO Built-in extractor hood, IKEA 700, 60 cm
MÅNGSBO Built-in extractor hood, IKEA 700, 60 cm
Flexible pipe for fan and charcoal filter sold separately.
Complete with
NYTTIG TUB 150 Flexible pipe for fan
Price 249:-
30% off custom-made countertops and wall tiles*Offer valid from 15 May until 14 JunIKEA Family offer
How to get it
Available services
Collect 109 points with
Product features
5 year guarantee
Want to clear the air swiftly and keep that uniform kitchen look? This built-in extractor works undercover, with a powerful booster, dimmable light, quiet operation (55 dB) – and A+++ energy efficiency.
Article number906.091.16
5-year guarantee, free of charge. Read about the terms in the guarantee brochure.

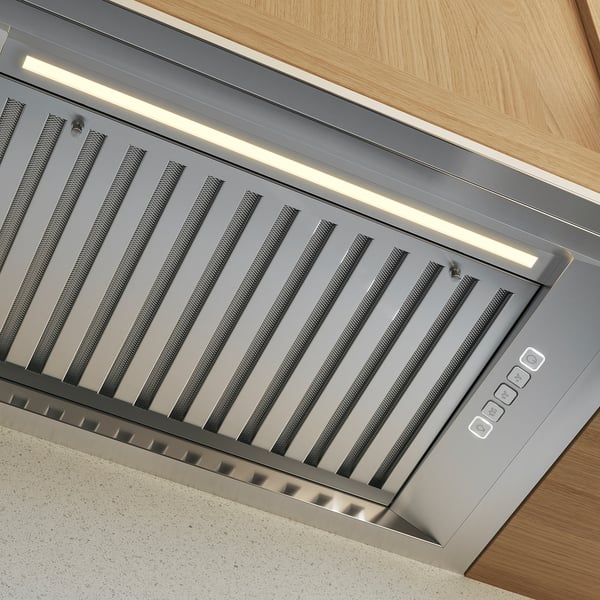

The dimmable LED lights up your cooking area and lets you set the right mood when you're not cooking, perfect for dining or socialising.

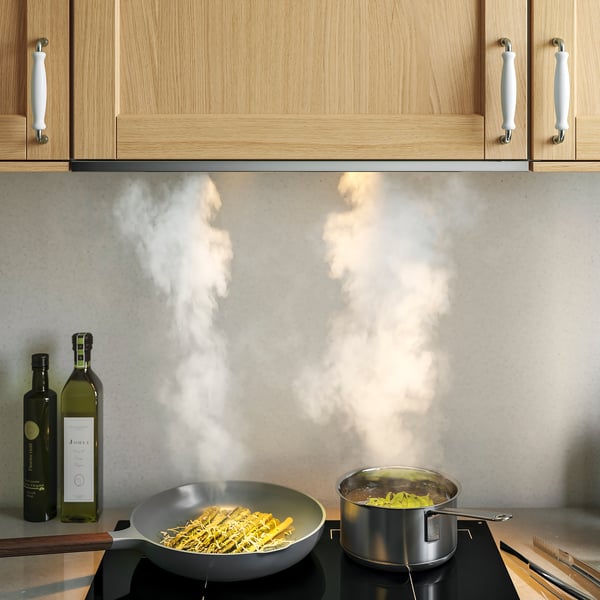

Booster function cranks up extraction for a few minutes to quickly clear cooking fumes – perfect when you're frying and guests are on the way.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
Related products
Explore more options
Recommended for you
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Is your extractor hood working at its best?
A greasy filter can slow things down. When clogged, it’s less effective at removing smoke, cooking fats and odours. It can even increase fire risk. A quick clean every 2-3 months (or more often if you’re a fan of frying) keeps it running smoothly – and your kitchen smelling fresh. All IKEA extractor hoods have removable, dishwasher-safe grease filters. Prefer to wash by hand? Just use warm water and a little washing-up liquid. Let the filters air dry, then pop them back in!
