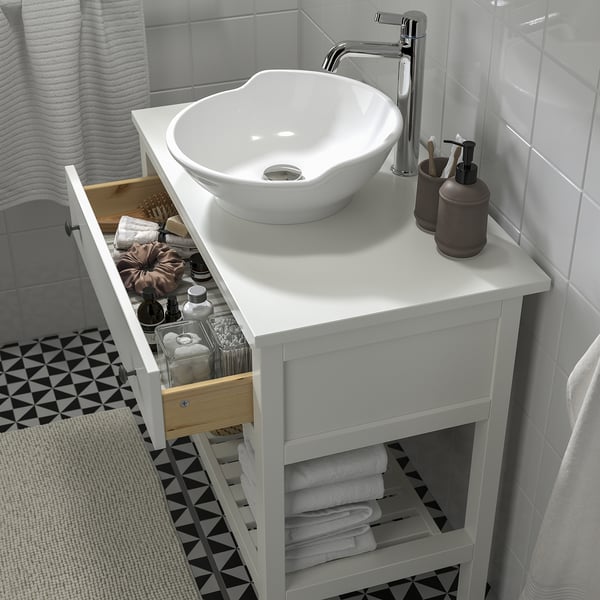

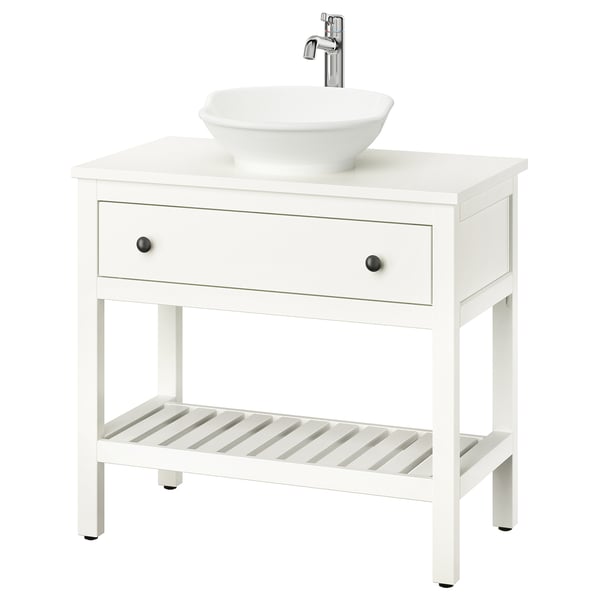

A simple, crafted look with Scandinavian appeal combined with a smooth-running drawer and water-saving mixer tap. The wash-basin with round bowl and raised back gives it a traditional character.
Product details
Coordinates nicely with other products in the HEMNES series.

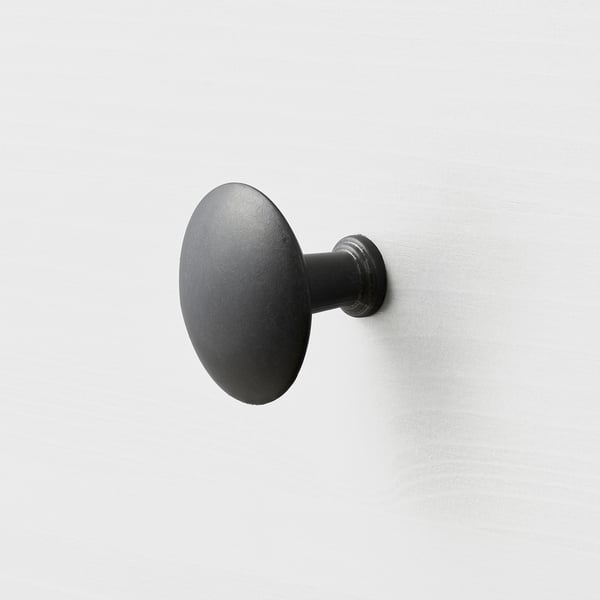

The straightforward, crafted look of the drawers and knobs enhances the Scandinavian expression.
The drawer has been rigorously tested to make sure it can be open and closed over many years of morning rush hour.
Ceramic countertop wash-basin with round bowl, softly rounded edges and raised back creates traditional expression that feels harmonious and inviting.
The smooth-running drawer with pull-out stop opens all the way for a good overview without falling out.
You can sense the calm every time you close the drawer thanks to the soft-closing mechanism. No worries about fingers getting trapped.
The roomy drawer has space for things like brushes, sprays and accessories while towels are conveniently kept on the shelf underneath.
You can make good use of the space inside the drawer thanks to the smart design of the water trap that leads the piping into the far back of the cabinet.
Technical information
VOXNAN
Wash-basin mixer tap, tall, chrome-plated
Article number505.331.66| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |
| Saker Vatten approved assembly instruction. RSK number | 8275791 |
| RSK number | 8275791 |

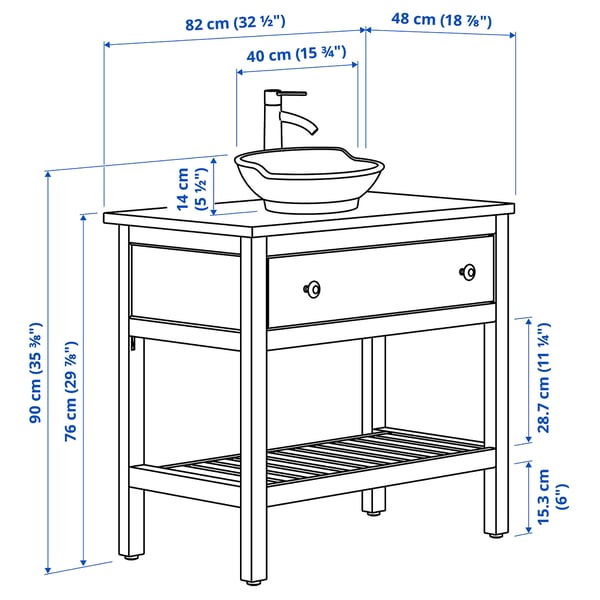

Measurements
- Width: 82 cm
- Wash-stand width: 82 cm
- Depth: 48 cm
- Height: 90 cm
