UNDERVERK Built-in extractor hood, stainless steel,
5 year guarantee
How to get it

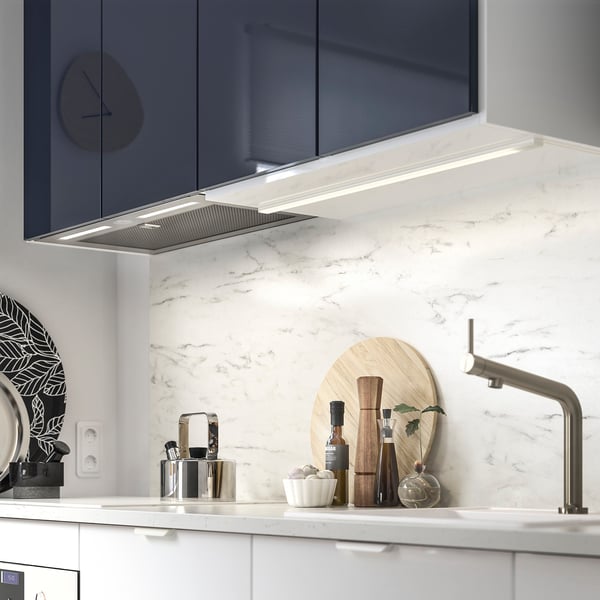

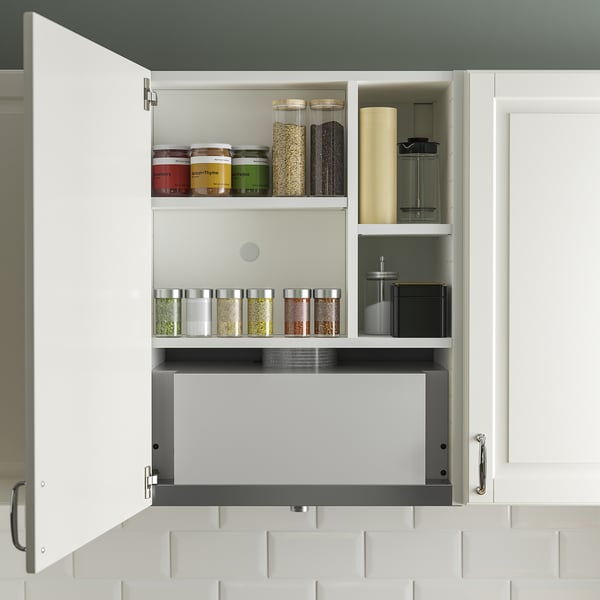

Hidden inside your 60 cm cabinet, this powerful hood works in secret – just choose the door you like to get a uniform look in the kitchen. The LED light source provides even lighting over the hob.
Article number804.432.11Product details
5 year guarantee. Read about the terms in the guarantee brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
Fully integrated; hidden behind your kitchen cabinet door, creating a uniform expression.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Extraction rate in exhausting mode: 630 m³/h.
Noise level at max. exhaust speed: 64 dB (A).
Extraction rate in re-circulation mode: 365 m³/h.
Noise level at max. re-circulation speed: 79 dB (A).
Voltage: 220-240V.
Wall mounted extractor hood with 3 different speeds.
Country of origin: Italy.
This product bears the ECAS mark.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.
Developed to fit into METOD kitchen system.
Flexible pipe for fan and charcoal filter sold separately.
- Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
- This product bears the CE mark.
- Assembly instructionsUNDERVERK Built-in extractor hood804.432.11

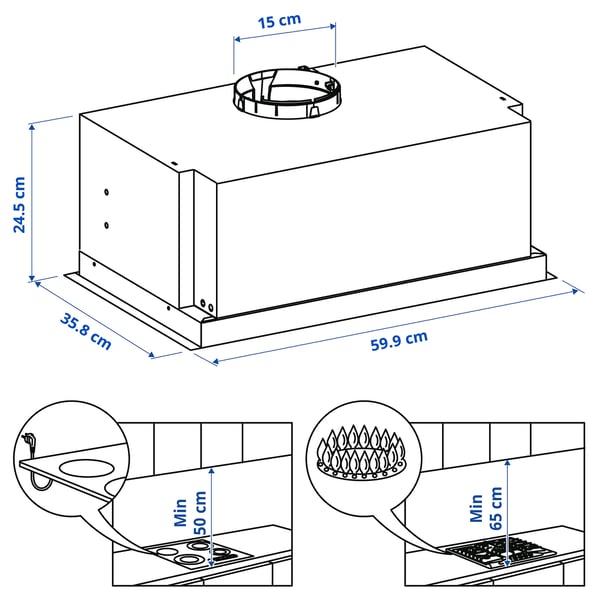

Measurements
Width: 59.9 cm
Depth: 35.8 cm
Height: 24.5 cm
Weight: 11.00 kg
Cord length: 110.0 cm
Extraction rate: 625 m³/h
Motor power: 250 W
- UNDERVERKArticle number804.432.11
Width: 43 cm
Height: 34 cm
Length: 64 cm
Weight: 9.60 kg
Package(s): 1
