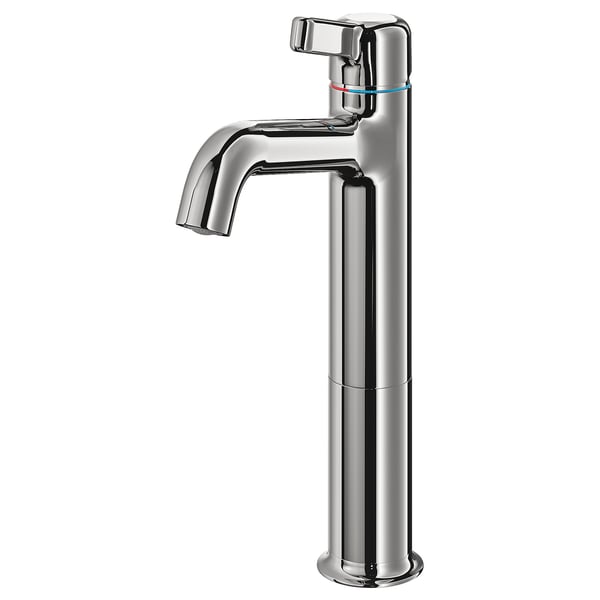

VOXNAN Wash-basin mixer tap, tall, chrome-plated

Name: VOXNAN Wash-basin mixer tap, tall - chrome-plated
Brand: IKEA
SKU: 105.331.73
Price: 89 EUR
Availability: InStock

€89€ 89

(0)

Design your bathroom

Create your bathroom in our planning tool

How to get it

10 year guarantee

You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.

Article Number105.331.73

Product details

10 year guarantee. Read about the terms in the guarantee brochure.

The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.

Hot water is released by turning the lever to the left. It is only then that hot water is consumed.

This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

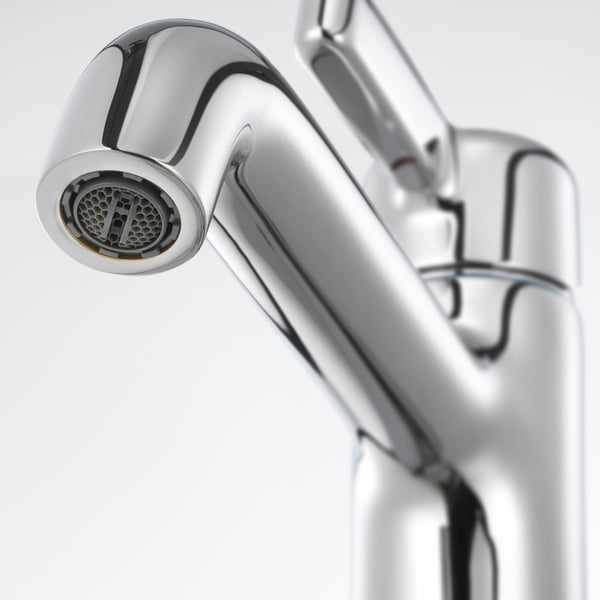

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

Designer

H Preutz/N Karlsson

Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Additional aerator for low-pressure system included.
Connection hoses that fit 15 mm diameter pipes are included.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Suitable for bathroom countertops only. For mounting behind or to the side of the wash basin according to assembly instructions.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Material
Body:
Brass, Metallized
Spout:
Brass, Brass, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including WRAS or KIWA UK.This tap is for use on low- and high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 0.2 – 5.0 bar (20 kPa – 500 kPa).
Advice and care instructions
VOXNAN Wash-basin mixer tap, tall105.331.73 VOXNAN Wash-basin mixer tap, tall105.331.73

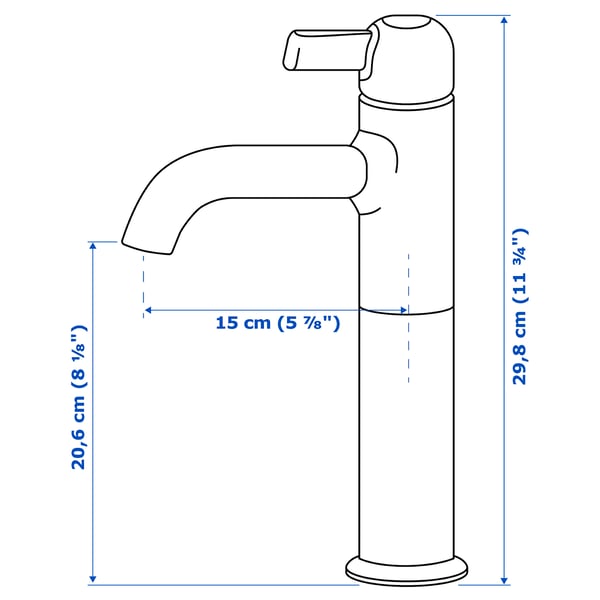

Technical information

VOXNAN

Wash-basin mixer tap, tall, chrome-plated

Article Number105.331.73

Brand Name	IKEA
Type of tap	Wash-basin mixer tap
Max. flow rate at 3 bar	5.7 l/min
Annual energy consumption	343 kWh/p.a.
Recommended working pressure	0.5 - 5 bar (0.05 - 0.5 MPa) (7.25 - 72.5 psi)
Min. working pressure	0.2 bar (0,02MPa) (2.9 psi)
Max. static pressure	10 bar (1,0MPa) (145.0 psi)
Max. countertop thickness	50 mm (2")
Mounting hole measurement	34-37 mm (1 3/8-1 7/16")
Connection hoses length	350 mm (13 3/4")
Hose connection size	G 1/2" (R15) "
Recommended cold water temperature	10-15˚C (50-59˚F)
Recommended hot water temperature	60-65°C (140-150°F)
Max. hot water temperature	80˚C (176˚F)
Strainer included	Yes
Third party certified according to local standards by	KIWA
