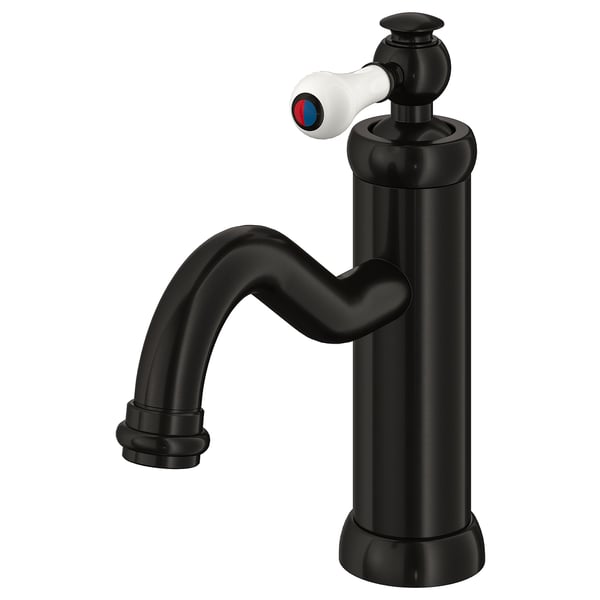

HAMNSKÄR Wash-basin mixer tap, black
How to get it
10 year guarantee
You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.
Hot water is released by turning the lever to the left. It is only then that hot water is consumed.
This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

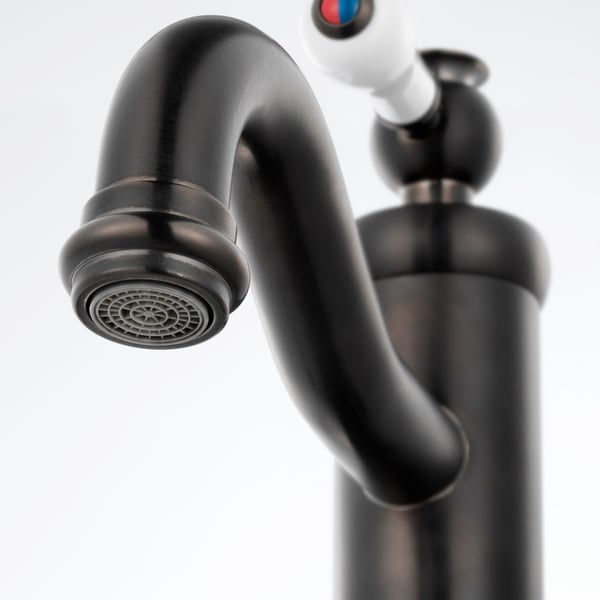

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Ola Wihlborg
Good to know
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Additional aerator for low-pressure system included.
Connection hoses that fit 15 mm diameter pipes are included.
A tool is included that makes it easy to install the mixer tap in place.
Overflow ring, plug lid, fixing screw and waste grill in matching colour included.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Zinc, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety and compliance
Assembly and documents
Technical information
HAMNSKÄR
Wash-basin mixer tap, black
Article Number105.326.92| Brand Name | IKEA |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Min. working pressure | 0.2 bar (0,02MPa) (2.9 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Hose connection size | G 1/2" (R15) " |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Strainer included | Yes |
| Third party certified according to local standards by | KIWA |

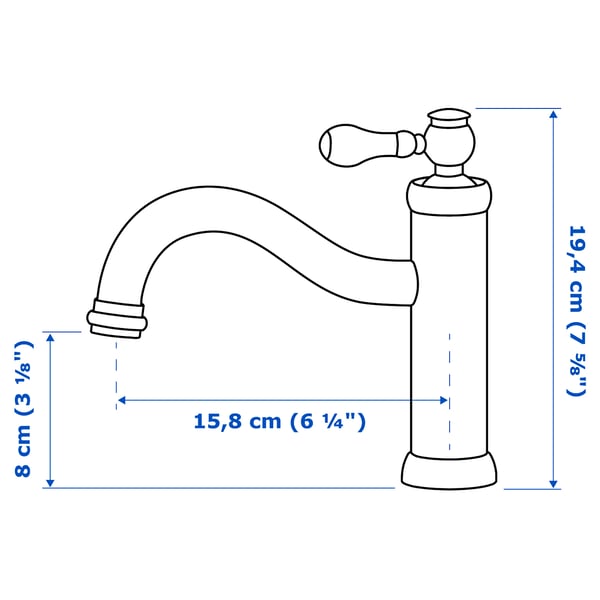

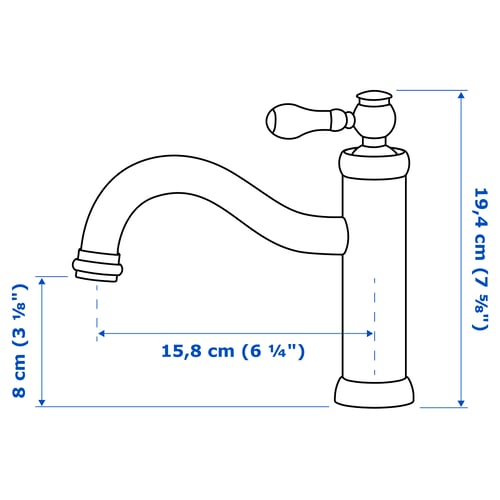

Weight & measurements
- Height: 19 cm
Package details
HAMNSKÄR
Article Number105.326.92- Width: 30 cm
- Height: 7 cm
- Length: 37 cm
- Weight: 1.56 kg
- Package(s): 1
