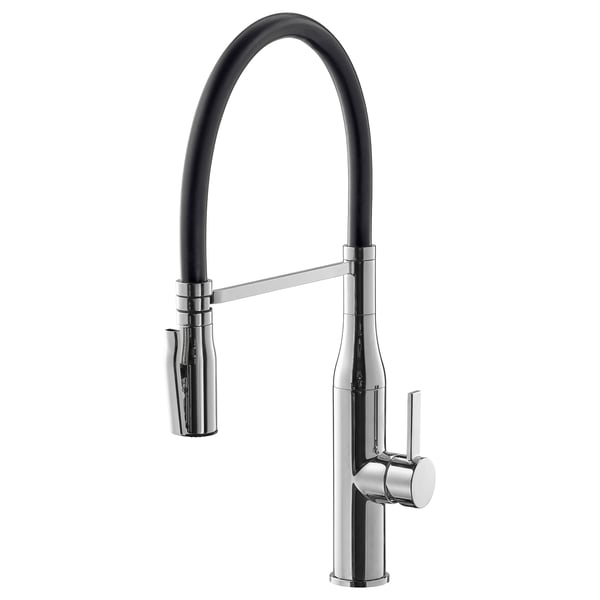

TOLLSJÖN Kitchen mixer tap/handspray, chrome-plated
How to get it
10 year guarantee
TOLLSJÖN tap in chrome helps lower water- and energy-use – so you can lower your bills too. The handspray is practical for cleaning veggies and the quality is guaranteed to outlast many years of washing and rinsing.
Product Details
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The tap functions two ways, so you can switch between a concentrated stream and a shower function.
Washing and rinsing are easier thanks to the detachable handspray.
Equipped with check valve to prevent back flow.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
To have sufficient room to use the handspray there must be at least 55 cm of space between your worktop and wall cabinet.
A tool is included that makes it easy to install the mixer tap in place.
Water and energy saving aerator (9.5 l/min.) for high-pressure systems included.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
Brass, Chrome-plated
Care
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe clean with a dry cloth.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety & compliance
Assembly & documents
Assembly instructions
TOLLSJÖN Kitchen mixer tap/handspray604.799.65Advice & Care instructions
TOLLSJÖN Kitchen mixer tap/handspray604.799.65Technical information
TOLLSJÖN
Kitchen mixer tap/handspray, chrome-plated
Article number604.799.65| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap/sep handspray |
| Max. flow rate at 3 bar | 9.5 l/min |
| Annual energy consumption | 829 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | KIWA |

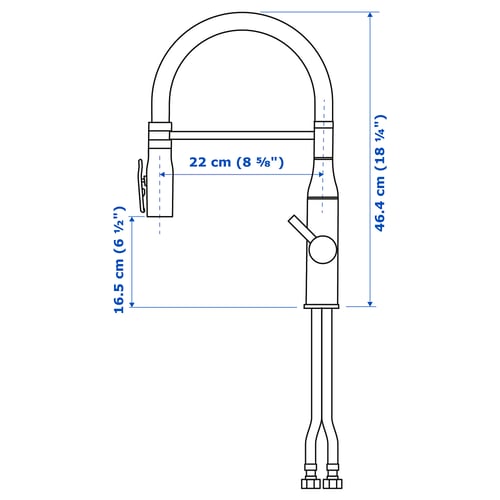

Measurements
- Length: 22 cm
- Height: 46 cm
Packaging
TOLLSJÖN
Article number604.799.65- Width: 29 cm
- Height: 6 cm
- Length: 53 cm
- Weight: 3.09 kg
- Package(s): 1
Customer reviews
SustainabilityPeople and planet
Energy and resources
Did you know using water more efficiently can reduce your energy bills and help tackle climate change?
Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
