- Type of tapWash basin mixer tap, tall
- Max. flow rate at 3 bar4.5 l/min (1.2 gpm)
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. countertop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length450 mm (17 3/4")
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
Complete with

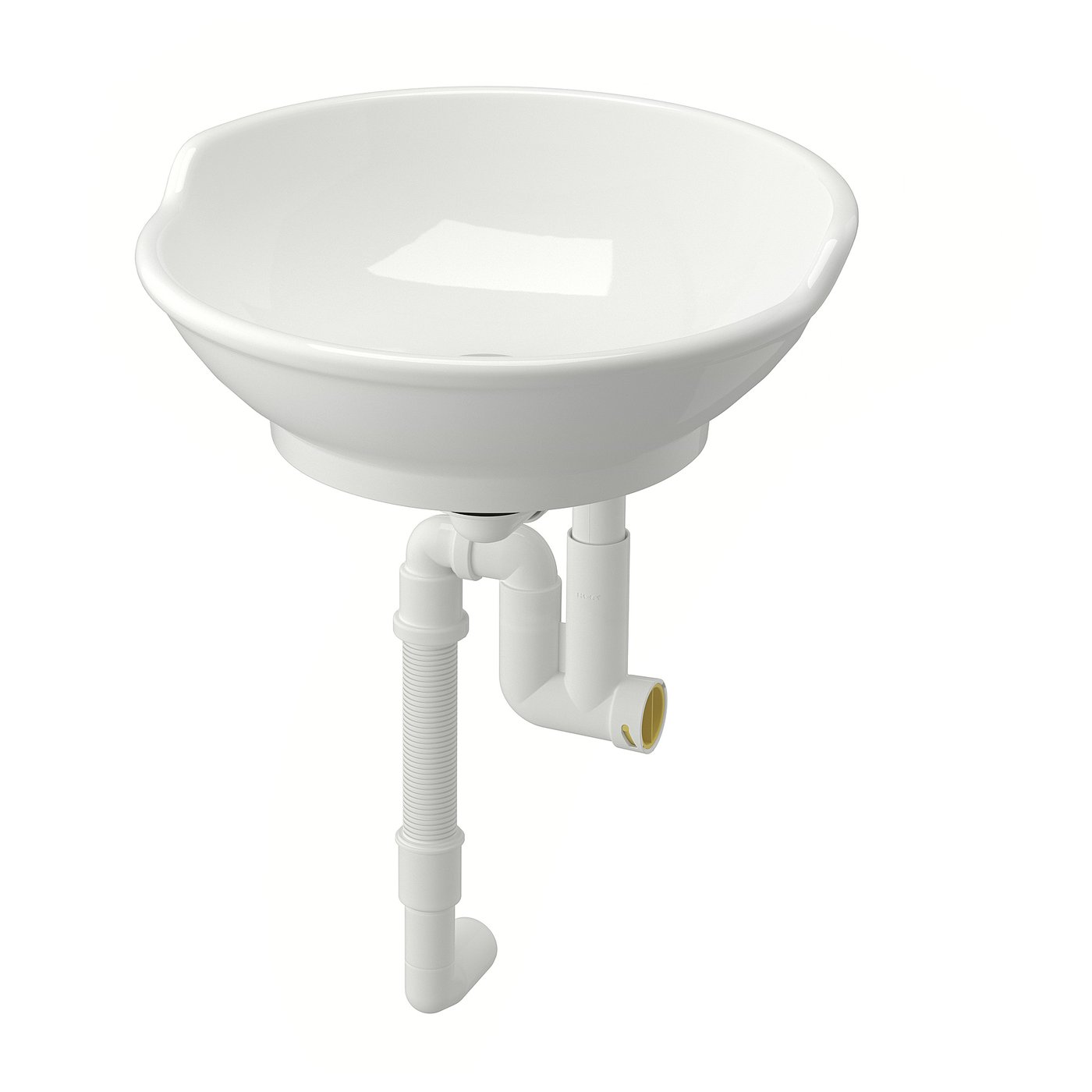

VÄSTERSJÖN Countertop wash-basin w water trap, 40x14x9 cm
﷼ 695
How to get it

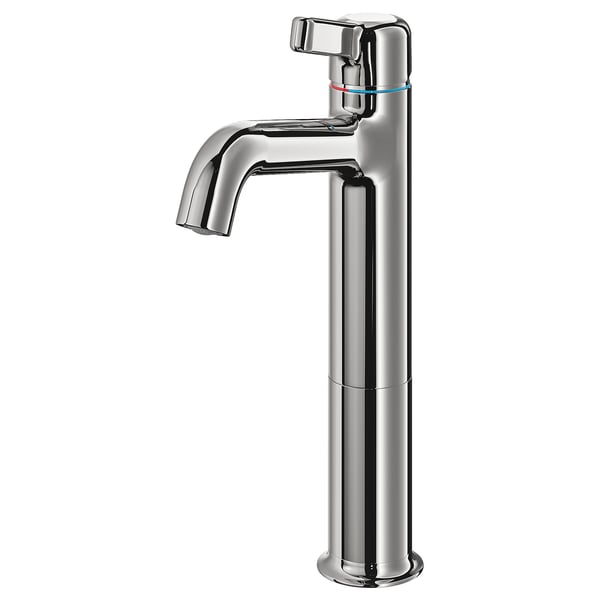

Checking availability...VOXNAN
205.332.57You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.
Product features
- Suitable for business
More information
Material
Brass, Chrome-plated
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Assembly instructions
VOXNAN Wash-basin mixer tap, tall205.332.57Advice and care instructions
VOXNAN Wash-basin mixer tap, tall205.332.57VOXNAN Wash-basin mixer tap, tall205.332.57
10 year guarantee. Read about the terms in the guarantee brochure.
Hot water is released by turning the lever to the left. It is only then that hot water is consumed.
This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
Designer
H Preutz/N Karlsson
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Suitable for bathroom countertops only. For mounting behind or to the side of the wash basin according to assembly instructions.
Material
Brass, Chrome-plated
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
- Tested and certified to relevant national and international mechanical, quality, safety and hygienic standards.
Assembly instructions
VOXNAN Wash-basin mixer tap, tall205.332.57Advice and care instructions
VOXNAN Wash-basin mixer tap, tall205.332.57VOXNAN Wash-basin mixer tap, tall205.332.57
- 205.332.57
1 × VOXNAN
Wash-basin mixer tap, tall- Width: 23 cm
- Height: 7 cm
- Length: 41 cm
- Weight: 1.83 kg
