SUNNERSTA Mini-kitchen,
How to get it
A functional mini-kitchen series for the chef with limited space and budget – at home or in the guest house. Easy to assemble, or disassemble and bring with you if you are on the move.
Article number494.193.84Product details

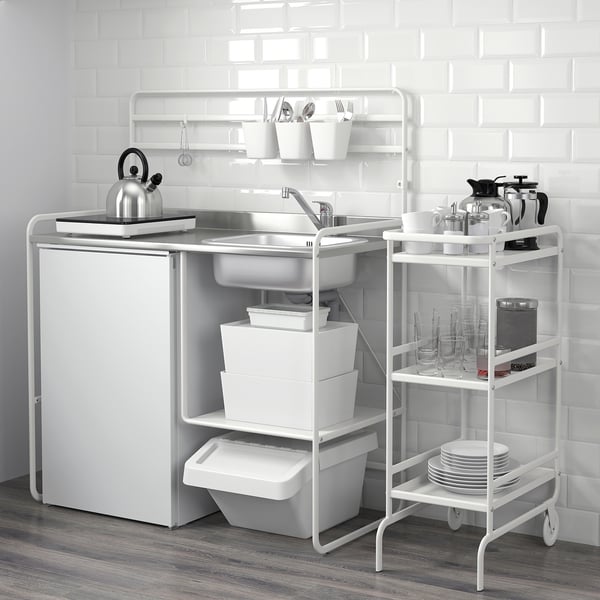

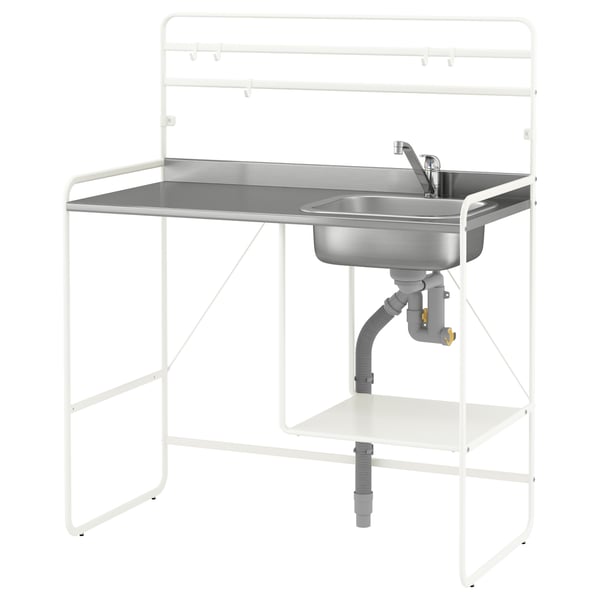

With SUNNERSTA mini-kitchen you can easily create a practical and inspiring area for cooking, even in a small space.
Sink in stainless steel, a hygienic, strong and durable material that's easy to keep clean.
The shelf is reversible, so you can choose if you want it to the right or left.
It’s fast and easy to assemble and take apart.
Adjustable feet make it possible to compensate any irregularities in the floor.
LILLVIKEN water trap and strainer are included in the price, but packaged separately.
LAGAN kitchen mixer tap is included in the price, but packaged separately.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
A tool that makes it easy to screw the kitchen mixer tap in place is included.
5 hooks included.
A tool is included that makes it easy to install the mixer tap in place.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
The installation shall be made in accordance with valid local building and plumbing regulations. If you are uncertain about the installation, contact a professional.
May be completed with SUNNERSTA kitchen accessories.
May be completed with sink accessories for effective use of space on the sink.
- MaterialMini-kitchen
- Frame/ Shelf:
- Steel, Polyester powder coating
- Work top:
- Stainless steel
- Hook:
- ABS plastic
- Bumper pad:
- EVA plastic
Single-lever kitchen mixer tap- Body:
- Zinc, Chrome-plated
- Spout:
- Brass, Brass, Chrome-plated
Water trap/strainer 1 bowlCare- Tubes/ Cleaning plug:
- Polypropylene plastic
- Strainer/ Strainer basket:
- Stainless steel
- Seals:
- Synthetic rubber, Synthetic rubber
Single-lever kitchen mixer tapWipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Mini-kitchenWipe dry with a clean cloth.
Always wipe and rub the sink along the steel grain when cleaning.
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the stainless steel surface.
- This furniture must be fixed to the wall.WARNING! SUNNERSTA shelf should only be hung on the upper welded rail of SUNNERSTA mini-kitchen. It should not be hung on the lower screwed in rail or on the kitchen trolley.This product bears the CE mark.
TECHNICAL INFORMATION
SUNNERSTA
Mini-kitchen
| Type of tap | Single-lever kitchen mixer tap |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Max. hot water temperature | 80˚C (176˚F) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Strainer included | No |
| Swivel spout | 360 ° |
| Third party certified according to local standards by | SASO |
| WELS rating | B |
Measurements
Width: 112 cm
Depth: 56 cm
Height: 139 cm
- This product comes as 3 packages.LILLVIKENArticle number103.115.39
Width: 41 cm
Height: 9 cm
Length: 45 cm
Weight: 0.80 kg
Package(s): 1
LAGANArticle number804.940.07Width: 25 cm
Height: 5 cm
Length: 30 cm
Weight: 1.03 kg
Package(s): 1
SUNNERSTAArticle number903.020.79Width: 62 cm
Height: 17 cm
Length: 115 cm
Weight: 16.12 kg
Package(s): 1
