A functional mini-kitchen series for the chef with limited space and budget – at home or in the guest house. Easy to assemble, or disassemble and bring with you if you are on the move.
Product details

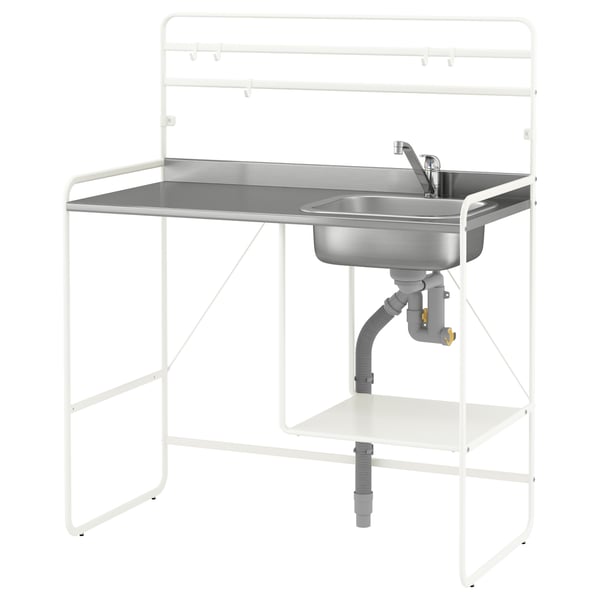

With SUNNERSTA mini-kitchen you can easily create a practical and inspiring area for cooking, even in a small space.
Sink in stainless steel, a hygienic, strong and durable material that's easy to keep clean.
The shelf is reversible, so you can choose if you want it to the right or left.
It’s fast and easy to assemble and take apart.
Adjustable feet make it possible to compensate any irregularities in the floor.
Good to know
LILLVIKEN water trap and strainer are included in the price, but packaged separately.
LAGAN kitchen mixer tap is included in the price, but packaged separately.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
A tool that makes it easy to screw the kitchen mixer tap in place is included.
5 hooks included.
A tool is included that makes it easy to install the mixer tap in place.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
The installation shall be made in accordance with valid local building and plumbing regulations. If you are uncertain about the installation, contact a professional.
May be completed with SUNNERSTA kitchen accessories.
May be completed with sink accessories for effective use of space on the sink.
Materials and care
Material
- Frame/ Shelf:
- Steel, Polyester powder coating
- Work top:
- Stainless steel
- Hook:
- ABS plastic
- Bumper pad:
- EVA plastic
- Body:
- Zinc, Chrome-plated
- Spout:
- Brass, Brass, Chrome-plated
- Tubes/ Cleaning plug:
- Polypropylene plastic
- Strainer/ Strainer basket:
- Stainless steel
- Seals:
- Synthetic rubber, Synthetic rubber
Care
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Always wipe and rub the sink along the steel grain when cleaning.
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the stainless steel surface.
Safety and compliance
Assembly and documents
TECHNICAL INFORMATION
LAGAN
Single-lever kitchen mixer tap, chrome-plated
Article number804.940.07| Type of tap | Single-lever kitchen mixer tap |
| WELS rating | B |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | SASO |
Measurements
- Width: 112 cm
- Depth: 56 cm
- Height: 139 cm
Package details
SUNNERSTA
Article number903.020.79- Width: 62 cm
- Height: 17 cm
- Length: 115 cm
- Weight: 16.12 kg
- Package(s): 1
LAGAN
Article number804.940.07- Width: 25 cm
- Height: 5 cm
- Length: 30 cm
- Weight: 1.03 kg
- Package(s): 1
LILLVIKEN
Article number103.115.39- Width: 41 cm
- Height: 9 cm
- Length: 45 cm
- Weight: 0.75 kg
- Package(s): 1
