LAGAN Single-lever kitchen mixer tap, chrome-plated
How to get it
10 year guarantee
LAGAN tap in chrome helps lower water- and energy-use – so you can lower your bills too. The quality is guaranteed to outlast many years of pouring, washing and rinsing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Mikael Warnhammar
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout: 360°.
Materials and care
Material
- Body:
- Zinc, Chrome-plated
- Spout:
- Brass, Brass, Chrome-plated
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
LAGAN Single-lever kitchen mixer tap804.940.07Advice and care instructions
LAGAN Single-lever kitchen mixer tap804.940.07TECHNICAL INFORMATION
LAGAN
Single-lever kitchen mixer tap, chrome-plated
Article number804.940.07| Type of tap | Single-lever kitchen mixer tap |
| WELS rating | B |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | SASO |

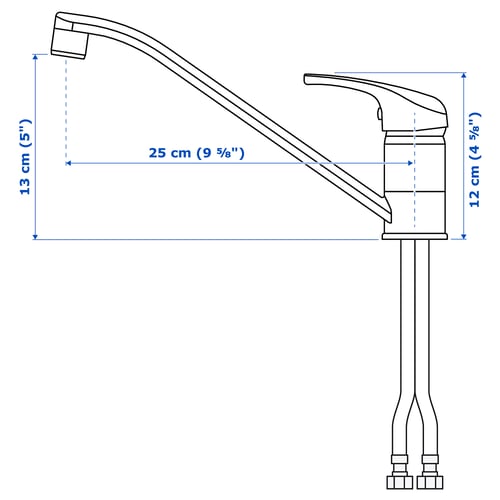

Measurements
- Height: 16 cm
Package details
LAGAN
Article number804.940.07- Width: 25 cm
- Height: 5 cm
- Length: 30 cm
- Weight: 1.03 kg
- Package(s): 1
