ÄNGSJÖN / OXMYREN Wash-stand/wash-basin/tap, high-gloss white/black marble effect, 122x49x77 cm
How to get it
10 year guarantee

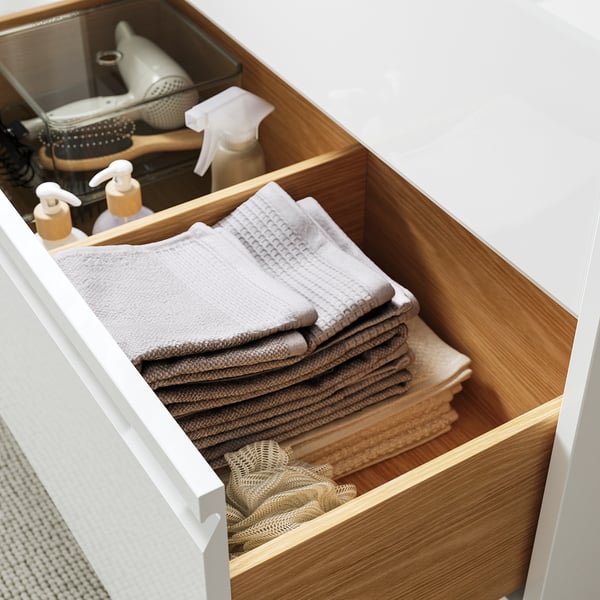

Slightly unexpected and simply delightful. Here you have 3 drawers for all your essentials, lovely countertop space for decorative objects and a wash-basin in glass that serves as icing on the cake.
Product details

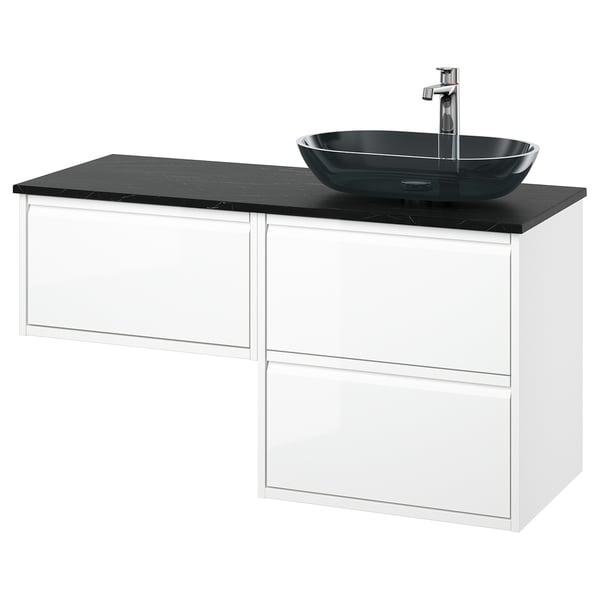

A combo with a 2-drawer wash-stand, a 1-drawer wash-stand, a countertop and wash-basin resulting in a functional and eye-catching solution that adds character to your bathroom.
Depending on your space and needs, complete this solution with your choice of a mirror or mirror cabinet from our range, sold separately.
The high gloss finish in white creates a sleek and contemporary expression emphasised with integrated handles for a refined look.
The transparent, dark grey glass of the washbasin creates a light and airy feel. Made of safety glass that is durable and built to last.
This combination is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know

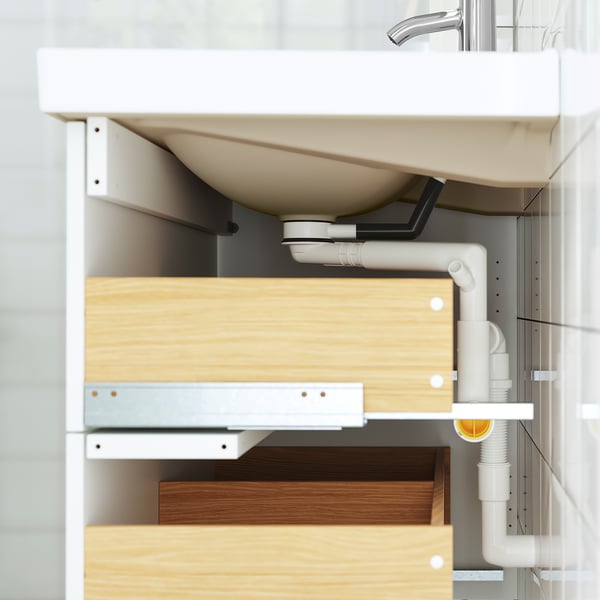

Comprises: 1 wash-stand with drawers, 1 wash-stand with drawer, 1 countertop, 1 countertop wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Material
- Frame/ Bottom panel:
- Particleboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Top rail:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic edging, Plastic edging
- Middle rail/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging
- Drawer front:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Drawer bottom:
- Fibreboard, Plastic foil, Plastic foil
- Body:
- Tempered glass
- Support:
- Zinc, Chrome-plated
- Sealing ring/ Seal/ Sealing ring/ Gasket/ Seals/ Seal:
- Synthetic rubber
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet connector:
- Polypropylene plastic
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Outlet pipe:
- Polypropylene plastic (min. 50% recycled)
- Assembly tool:
- ABS plastic
Fibreboard, Plastic foil, Melamine foil
Brass, Chrome-plated
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
Assembly instructions
ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawers305.350.86OXMYREN Countertop wash-basin304.946.94TOLKEN Countertop805.062.13BROGRUND Wash-basin mixer tap, tall305.320.97Advice and care instructions
ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawers305.350.86ÄNGSJÖN Wash-stand with drawers305.350.86OXMYREN Countertop wash-basin304.946.94OXMYREN Countertop wash-basin304.946.94TOLKEN Countertop805.062.13TOLKEN Countertop805.062.13BROGRUND Wash-basin mixer tap, tall305.320.97BROGRUND Wash-basin mixer tap, tall305.320.97TECHNICAL INFORMATION
BROGRUND
Wash-basin mixer tap, tall, chrome-plated
Article number305.320.97| Type of tap | Wash basin mixer tap, tall |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 350 mm (13 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

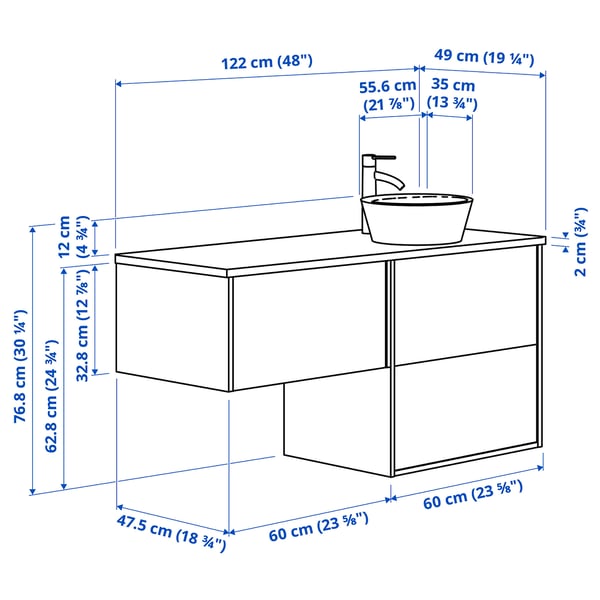

Measurements
- Width: 122.0 cm
- Depth: 49.0 cm
- Height: 76.8 cm
- Drawer front, thickness: 16 mm
Package details
ÄNGSJÖN
Article number805.350.98- Width: 48 cm
- Height: 9 cm
- Length: 67 cm
- Weight: 14.80 kg
- Package(s): 1
ÄNGSJÖN
Article number305.350.86- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 1
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 11.00 kg
- Package(s): 1
OXMYREN
Article number304.946.94- Width: 47 cm
- Height: 18 cm
- Length: 67 cm
- Weight: 10.35 kg
- Package(s): 1
TOLKEN
Article number805.062.13- Width: 50 cm
- Height: 3 cm
- Length: 137 cm
- Weight: 9.46 kg
- Package(s): 1
BROGRUND
Article number305.320.97- Width: 23 cm
- Height: 6 cm
- Length: 41 cm
- Weight: 1.99 kg
- Package(s): 1
