Must be completed with
How to get it
5 year guarantee

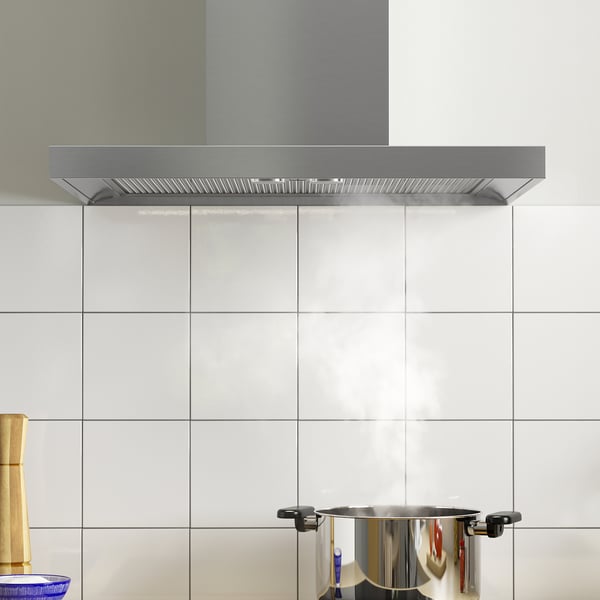

This hood with clean, straight lines fits perfectly in a modern kitchen. A LED light strip provides even lighting and the low noise level allows you to easily talk with your friends while cooking.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher.
IKEA of Sweden
Good to know

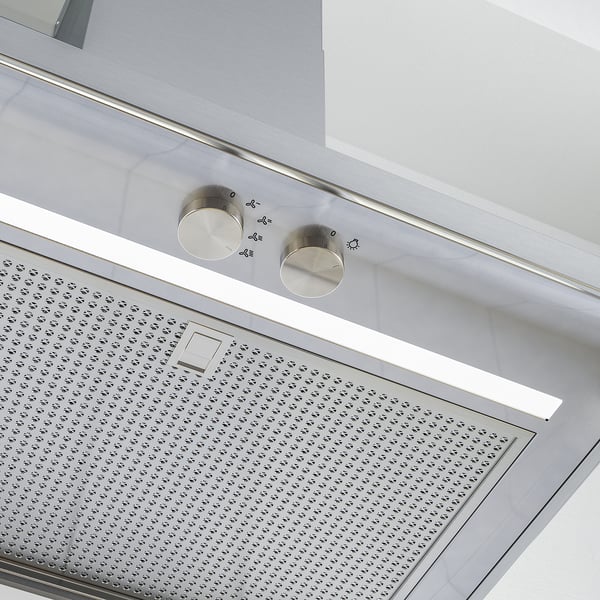

Wall-mounted extractor hood with 4 speeds.
Country of origin: Poland.
This product bears the ECAS mark.
Extraction rate in exhausting mode: 511 m³/h.
Noise level at max. exhaust speed: 65 dB (A).
Extraction rate in re-circulation mode: 398 m³/h.
Noise level at max. re-circulation speed: 70 dB (A).
Voltage: 220-240V.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 559.
Flexible pipe for fan and charcoal filter sold separately.
Materials and care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety and compliance
Assembly and documents
Assembly instructions

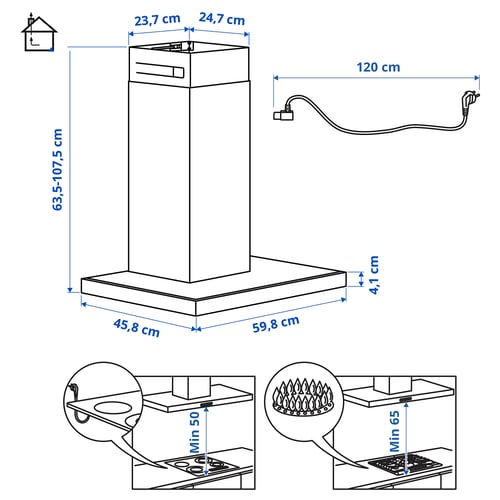

MATÄLSKARE Wall mounted extractor hood604.432.07Measurements
- Width: 59.8 cm
- Depth: 45.8 cm
- Height: 42.0 cm
- Min. height w charcoal filter: 63.3 cm
- Max. height w charcoal filter: 108.8 cm
- Min. height: 63.5 cm
- Max. height: 107.5 cm
- Width of chimney: 23.7 cm
- Depth of chimney: 24.7 cm
- Weight: 12.90 kg
- Cord length: 120.0 cm
- Motor power: 210 W
Packaging
MATÄLSKARE
Article number604.432.07- Width: 57 cm
- Height: 36 cm
- Length: 64 cm
- Weight: 14.22 kg
- Package(s): 1
Quality
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
