TOLLSJÖN Kitchen mixer tap/handspray, black polished metal
TOLLSJÖN Kitchen mixer tap/handspray, black polished metal
TOLLSJÖN Kitchen mixer tap/handspray, black polished metal
TOLLSJÖN Kitchen mixer tap/handspray, black polished metal
TOLLSJÖN Kitchen mixer tap/handspray, black polished metal
TOLLSJÖN Kitchen mixer tap/handspray, black polished metal

TOLLSJÖN Kitchen mixer tap/handspray, black polished metal

Price ¥ 49990
Price incl. sales tax
(177)

How to get it

  • 10 year guarantee

TOLLSJÖN tap in black helps lower water- and energy-use – so you can lower your bills too. The handspray is practical for cleaning veggies and the quality is guaranteed to outlast many years of washing and rinsing.

Article Number603.416.90

Product details

10 year guarantee. Read about the terms in the guarantee brochure.

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.

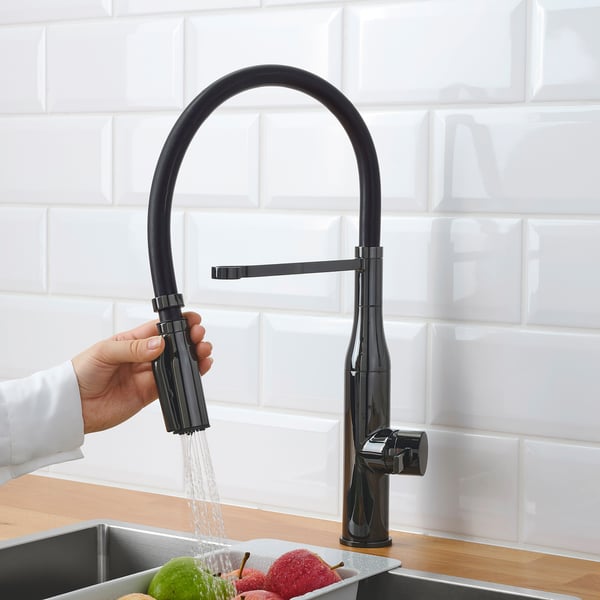

The tap functions two ways, so you can switch between a concentrated stream and a shower function.

Washing and rinsing are easier thanks to the detachable handspray.

Equipped with check valve to prevent back flow.

Designer

Brickstad/Palleschitz/Petersén

  • If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.

    To have sufficient room to use the handspray there must be at least 55 cm of space between your worktop and wall cabinet.

    A tool is included that makes it easy to install the mixer tap in place.

    Water and energy saving aerator (9.5 l/min.) for high-pressure systems included.

    Connection hoses with 1/2" connection included. Length: 35 cm.

    Max. temperature hot water system 80°C/176°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

  • Material

    Spout:
    Metallized, Brass
    Body:
    Brass, Metallized

    Care

    Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.

    Wipe clean with a dry cloth.

    Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.

  • Tested and certified to relevant Japanese mechanical, quality, safety and hygienic standards, including JIS S 3200.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).

  • Assembly instructions

    TOLLSJÖN Kitchen mixer tap/handspray603.416.90

    Advice and care instructions

    TOLLSJÖN Kitchen mixer tap/handspray603.416.90

Technical Information

TOLLSJÖN

Kitchen mixer tap/handspray, black polished metal

Article Number603.416.90
Type of tapKitchen mixer tap/sep handspray
Max. flow rate at 3 bar9.5 l/min (2.5 gpm)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. worktop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length450 mm (17 3/4")
Hose connection sizeG 1/2" (R15) "
Swivel spoutSwivel spout is preset to 360° but can be changed to 120°.
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Strainer includedNo

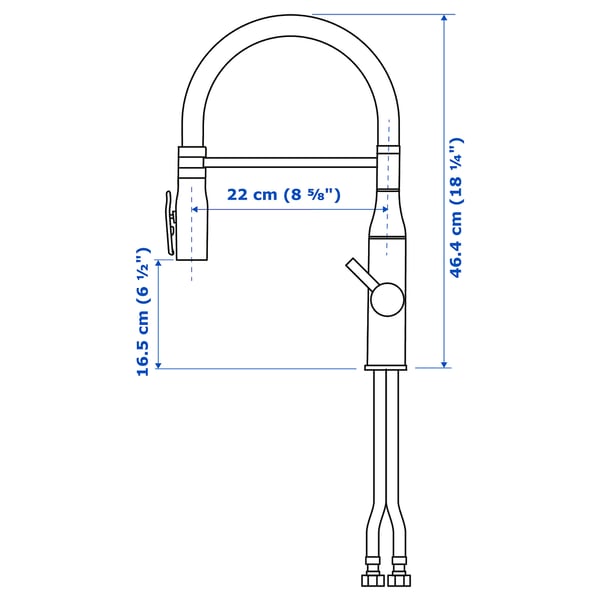

Measurements

  • Length: 22 cm
  • Height: 46 cm

  • TOLLSJÖN

    Article Number603.416.90
    • Width: 29 cm
    • Height: 6 cm
    • Length: 53 cm
    • Weight: 3.09 kg
    • Package(s): 1

Customer reviews

3.1Average rating
177Reviews

Featured on Instagram

See how our products look in real homes! Share your photos on Instagram with #イケア, #ikea購入品, #イケア購入品 to get a chance to be seen here!

Skip listing

Material

What is brass?

Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
