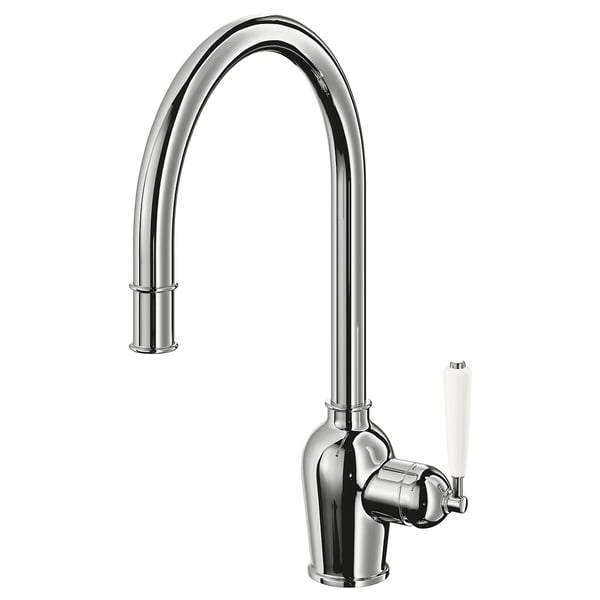

INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
How to get it
10 year guarantee
INSJÖN tap in chrome helps lower water- and energy-use – so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is guaranteed to outlast many years of washing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen mixer tap.
The high spout makes it easier to wash dishes, including large pots.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Chrome-plated brass is a hard and durable surface that is easy to clean.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.
Water and energy saving aerator (8 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
Materials & care
Material
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Safety and compliance
Assembly & documents
Assembly instructions
INSJÖN Kitchen mixer tap w pull-out spout903.418.77Advice and care instructions
INSJÖN Kitchen mixer tap w pull-out spout903.418.77Technical Information
INSJÖN
Kitchen mixer tap w pull-out spout, chrome-plated
Article Number903.418.77| Type of tap | Kitchen mixer tap with pull-out spout |
| Max. flow rate at 3 bar | 8 l/min (2.1 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | 120 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |

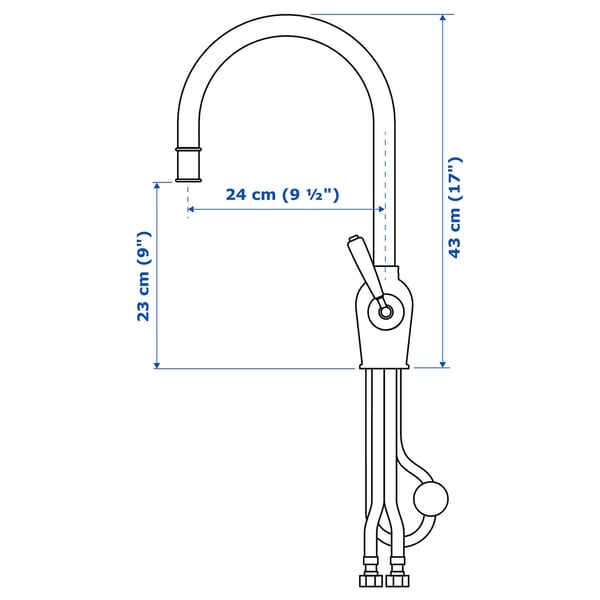

Measurements
- Length: 29 cm
- Height: 43 cm
Packaging
INSJÖN
Article Number903.418.77- Width: 33 cm
- Height: 8 cm
- Length: 70 cm
- Weight: 3.70 kg
- Package(s): 1
Customer reviews
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
