- Type of tapDual-control kitchen mixer tap
- Max. flow rate at 3 bar8 l/min (2.1 gpm)
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. worktop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length450 mm (17 3/4")
- Hose connection sizeG 1/2" (R15) "
- Swivel spout360 °
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo

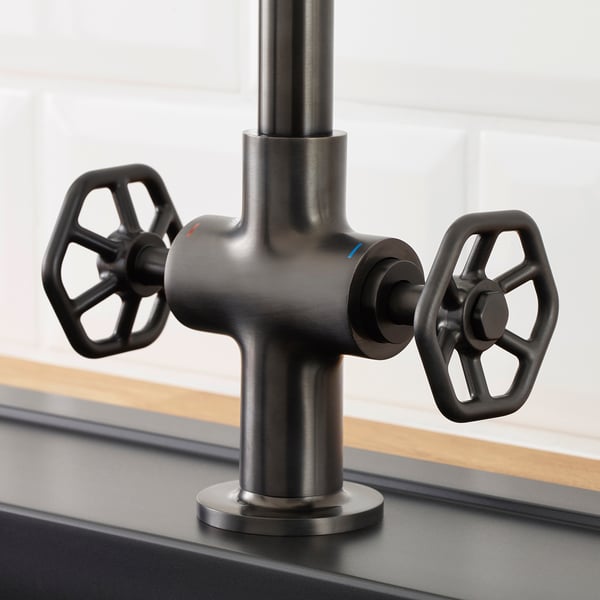

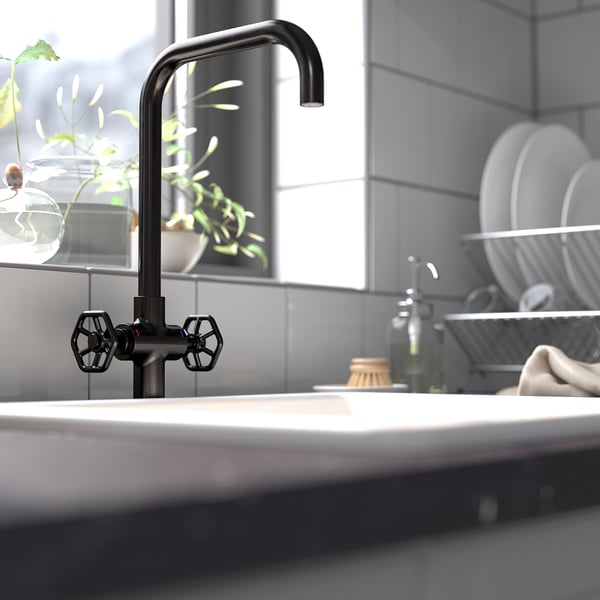

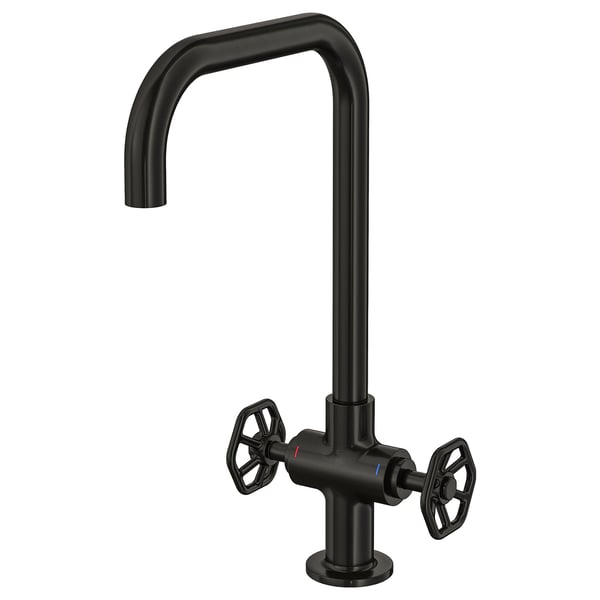

GAMLESJÖN Dual-control kitchen mixer tap, brushed black metal
How to get it
Checking availability...Collect 399 points with
It's OK to change your mind
10 year guarantee. Read about the terms in the guarantee brochure.
10 year guarantee
Material
Brass, Metallized
Care
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
GAMLESJÖN Dual-control kitchen mixer tap103.416.78Advice and care instructions
GAMLESJÖN Dual-control kitchen mixer tap103.416.78

The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The high spout makes it easier to wash dishes, including large pots.
Chrome-plated brass is a hard and durable surface that is easy to clean.
Brickstad/Palleschitz/Petersén
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.
Connection hoses with 3/8" connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
Swivel spout: 360°.
Material
Brass, Metallized
Care
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
- Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
GAMLESJÖN Dual-control kitchen mixer tap103.416.78Advice and care instructions
GAMLESJÖN Dual-control kitchen mixer tap103.416.78


- 103.416.78
1 × GAMLESJÖN
Dual-control kitchen mixer tap- Width: 34 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 1.90 kg
Customer reviews
Related products
Explore more options
Recommended for you
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
