Must be completed with
How to get it

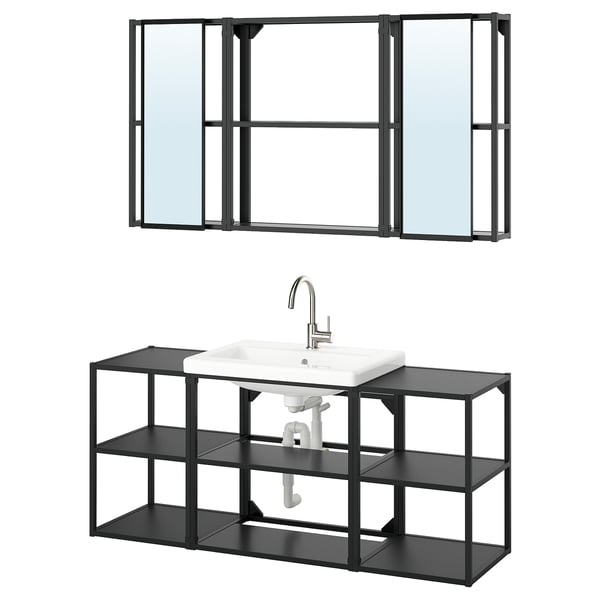

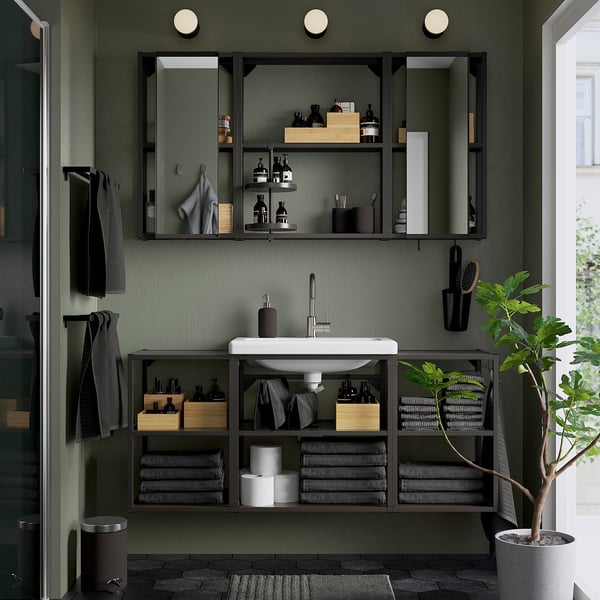

Everything is on display with plentiful open storage partnered up with accessories. This solution makes even the smallest items easy to find and access.
Product details
Cabinet code ENHET B105
A generous open storage solution that gives a good overview of all your everyday essentials. The mirrors slide to conceal or open for easy access.
Accessories attached to the wall- and base frames keep things in easy reach and off the surface areas.
You can easily add ENHET accessories to extend the use of your storage combination. And best of all – you don’t have to drill. Sold separately.
The unique wedge dowels make assembly easy and the fittings are nearly invisible.
Good to know
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Materials & care
Material
- Tubes:
- Steel, Powder coating
- Shelf:
- Galvanized steel, Powder coating
- Wedge:
- Steel, Epoxy/Acrylic coating
- Frame/ Mounting plate:
- Galvanized steel, Powder coating
- Mirror:
- Glass, Plastic foil
- Plastic fitting:
- Acetal plastic
- Body:
- Zinc, Metallized
- Inner body:
- Reinforced polyamide plastic
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
- Ceramics, Coloured glaze
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Clean: With a mild soapy solution. Wipe dry with a clean and dry cloth.
Safety and compliance
Assembly & documents
Assembly instructions
Technical Information
GLYPEN
Mixer tap, stainless steel effect
Article Number904.423.91| Type of tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 90° or 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
Measurements
- Width: 140 cm
- Depth: 43 cm
- Height: 65 cm
Packaging
ENHET
Article Number604.816.09- Width: 41 cm
- Height: 6 cm
- Length: 74 cm
- Weight: 6.80 kg
- Package(s): 2
ENHET
Article Number004.816.26- Width: 43 cm
- Height: 6 cm
- Length: 61 cm
- Weight: 6.60 kg
- Package(s): 1
ENHET
Article Number404.817.66- Width: 26 cm
- Height: 4 cm
- Length: 81 cm
- Weight: 3.07 kg
- Package(s): 2
ENHET
Article Number404.816.05- Width: 18 cm
- Height: 6 cm
- Length: 77 cm
- Weight: 4.31 kg
- Package(s): 2
ENHET
Article Number604.816.14- Width: 20 cm
- Height: 8 cm
- Length: 76 cm
- Weight: 5.37 kg
- Package(s): 1
GLYPEN
Article Number904.423.91- Width: 23 cm
- Height: 6 cm
- Length: 41 cm
- Weight: 1.28 kg
- Package(s): 1
RÄNNILEN
Article Number305.624.33- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.50 kg
- Package(s): 1
TVÄLLEN
Article Number904.816.36- Width: 48 cm
- Height: 20 cm
- Length: 68 cm
- Weight: 18.60 kg
- Package(s): 1
