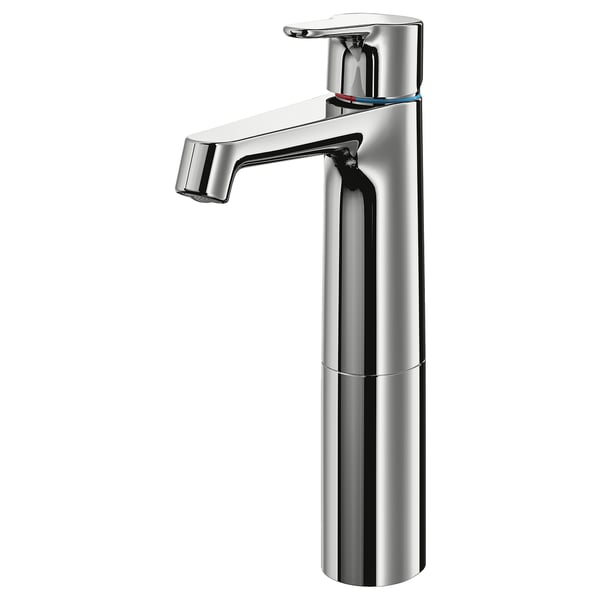

BROGRUND Wash-basin mixer tap, tall, chrome-plated
BROGRUND Wash-basin mixer tap, tall, chrome-plated
BROGRUND Wash-basin mixer tap, tall, chrome-plated
BROGRUND Wash-basin mixer tap, tall, chrome-plated
BROGRUND Wash-basin mixer tap, tall, chrome-plated

BROGRUND Wash-basin mixer tap, tall, chrome-plated

Price ¥ 19990
Price incl. sales tax
(15)

How to get it

  • 10 year guarantee

You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.

Article Number405.320.92

Product details

10 year guarantee. Read about the terms in the guarantee brochure.

The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.

Hot water is released by turning the lever to the left. It is only then that hot water is consumed.

This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

Chrome-plated brass is a hard and durable surface that is easy to clean.

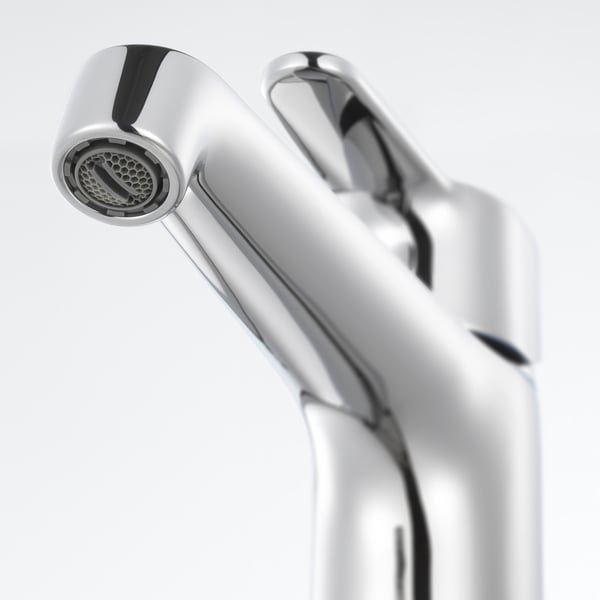

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.

Designer

H Preutz/N Karlsson

  • Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.

    Connection hoses with 1/2" connection included. Length: 35 cm.

    A tool is included that makes it easy to install the mixer tap in place.

    Max. temperature hot water system 80°C/176°F.

    Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

    If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.

    Suitable for bathroom countertops only. For mounting behind or to the side of the wash basin according to assembly instructions.

  • Material

    Body:
    Brass, Metallized
    Spout:
    Brass, Brass, Metallized

    Care

    Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.

    Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.

  • Tested and certified to relevant Japanese mechanical, quality, safety and hygienic standards, including JIS S 3200.

  • Assembly instructions

    BROGRUND Wash-basin mixer tap, tall405.320.92

    Advice and care instructions

    BROGRUND Wash-basin mixer tap, tall405.320.92BROGRUND Wash-basin mixer tap, tall405.320.92

Technical Information

BROGRUND

Wash-basin mixer tap, tall, chrome-plated

Article Number405.320.92
Type of tapWash basin mixer tap, tall
Max. flow rate at 3 bar5.7 l/min (1.5 gpm)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Max. countertop thickness50 mm (2")
Mounting hole measurement34-37 mm (1 3/8-1 7/16")
Connection hoses length350 mm (13 3/4")
Hose connection sizeG 1/2" (R15) "
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)

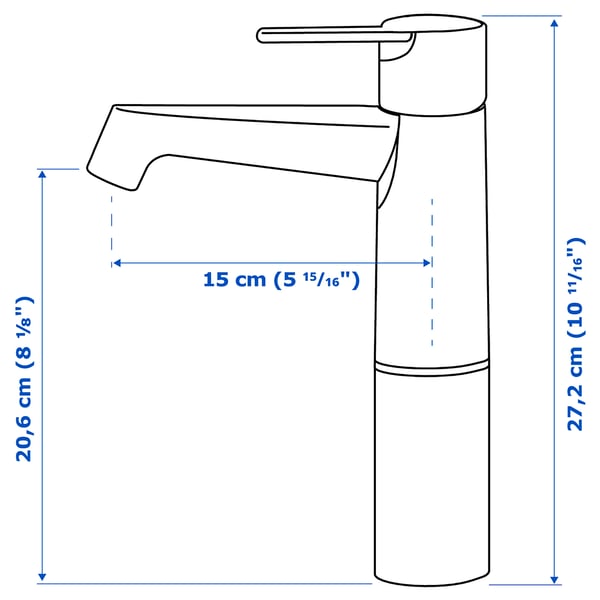

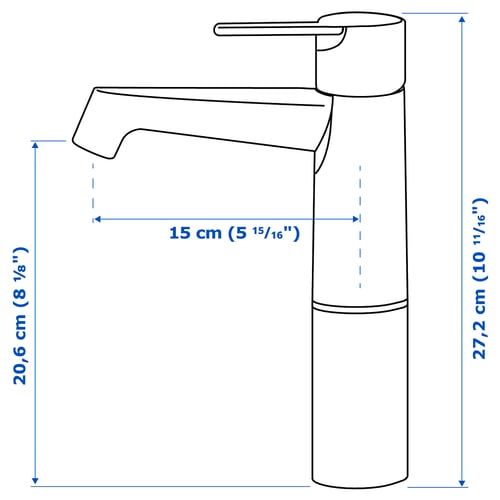

Measurements

  • Height: 28 cm

  • BROGRUND

    Article Number405.320.92
    • Width: 23 cm
    • Height: 6 cm
    • Length: 41 cm
    • Weight: 1.85 kg
    • Package(s): 1
