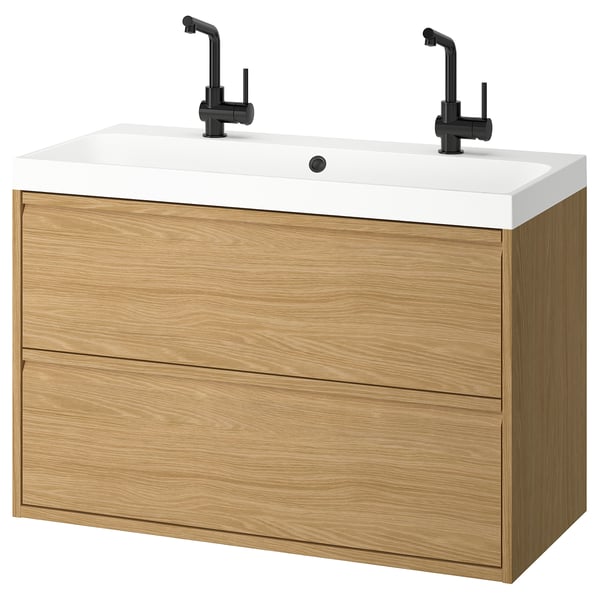

ÄNGSJÖN / BACKSJÖN Wash-stnd w drawers/wash-basin/taps, oak effect, 100x48x69 cm
Must be completed with
How to get it
10 year guarantee

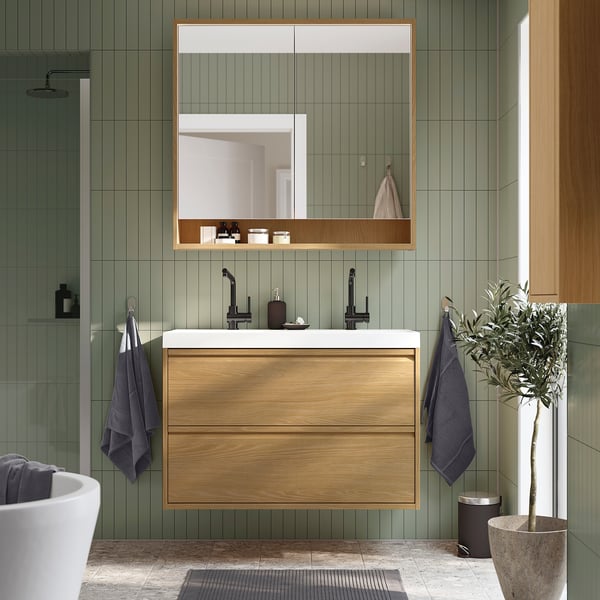

ÄNGSJÖN bathroom furniture has a modern appeal with minimal details so you can start each day with a clean slate. This combo has 2 spacious drawers and a large, sleek wash-basin with room for two.
Product details

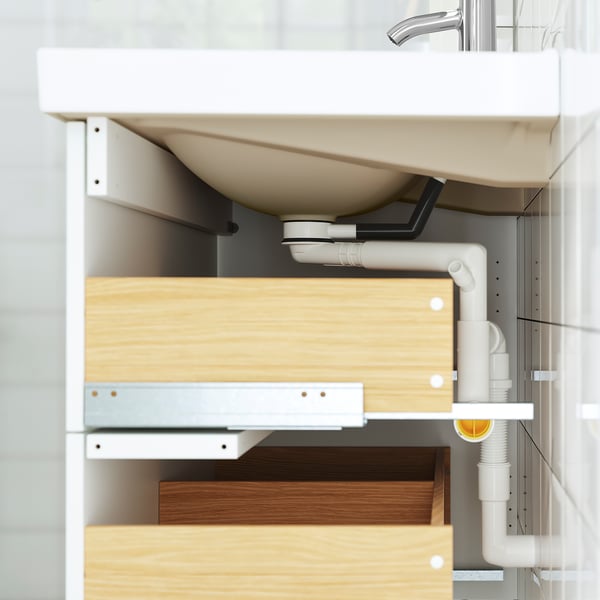

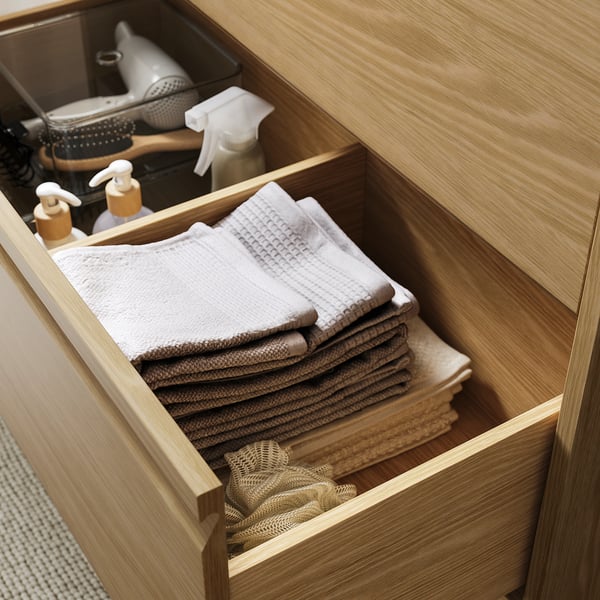

Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The oak effect finish with a natural wooden look transforms the space into a relaxing, at-home wellness retreat. A contemporary expression enhanced with integrated handles, minimising unnecessary details.

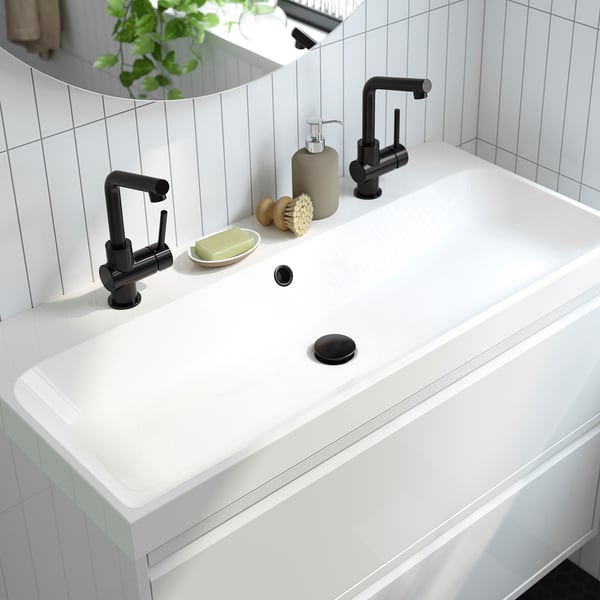

The wash-basin is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 1 integrated wash-basin, 1 water trap and 2 mixer taps.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials & care
Material
- Frame/ Middle rail/ Bottom panel/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer front:
- Particleboard, Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer bottom:
- Fibreboard, Plastic foil
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Zinc, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly & documents
Assembly instructions
ÄNGSJÖN Wash-stand with drawers305.694.15BACKSJÖN Wash-basin905.499.38LUNDSKÄR Wash-basin mixer tap305.327.28RÄNNILEN Water trap w flexible pipe, 1 bowl305.624.33Advice and care instructions
LUNDSKÄR Wash-basin mixer tap305.327.28Technical Information
LUNDSKÄR
Wash-basin mixer tap, black
Article Number305.327.28| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 4.5 l/min (1.2 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |

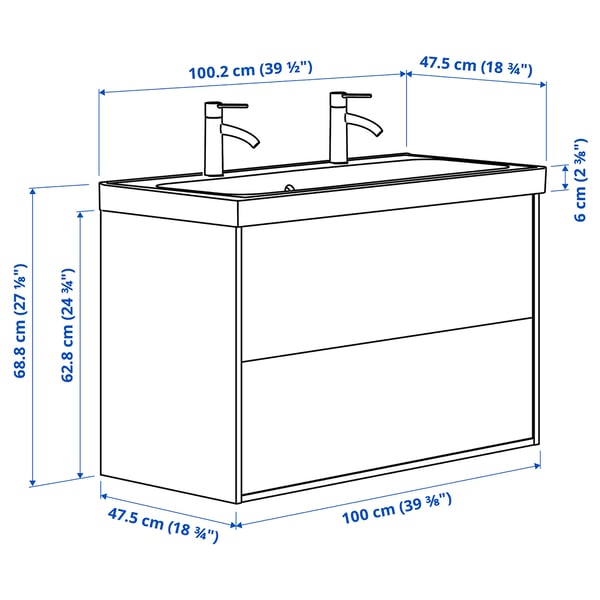

Measurements
- Width: 100.2 cm
- Depth: 47.5 cm
- Height: 68.8 cm
Packaging
ÄNGSJÖN
Article Number305.694.15- Width: 48 cm
- Height: 8 cm
- Length: 114 cm
- Weight: 21.00 kg
- Package(s): 1
- Width: 49 cm
- Height: 6 cm
- Length: 104 cm
- Weight: 16.90 kg
- Package(s): 1
BACKSJÖN
Article Number905.499.38- Width: 51 cm
- Height: 16 cm
- Length: 110 cm
- Weight: 17.50 kg
- Package(s): 1
LUNDSKÄR
Article Number305.327.28- Width: 20 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.66 kg
- Package(s): 2
RÄNNILEN
Article Number305.624.33- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.50 kg
- Package(s): 1
