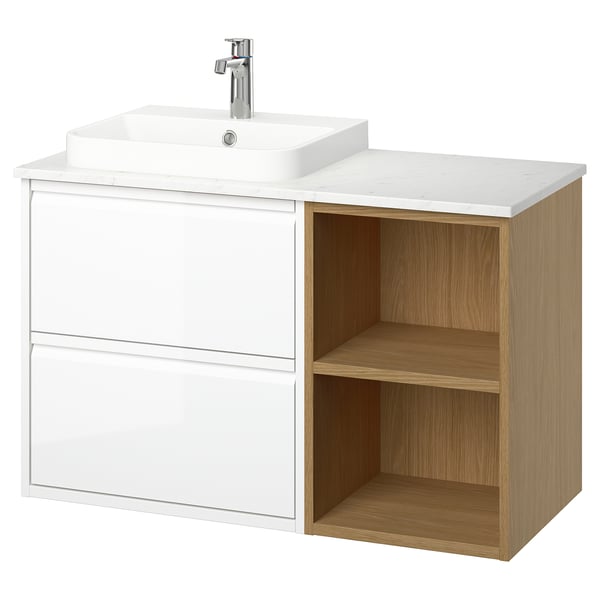

ÄNGSJÖN / BACKSJÖN Wash-stand/wash-basin/tap, high-gloss white/oak effect/white marble effect, 102x49x71 cm
Must be completed with
How to get it
10 year guarantee
This solution has a little of everything. Both open and closed storage for decorative items and essentials, counterspace to keep things handy and the warm feel of wood to add character to your space.
Product details
A combination with a lot of functionality and character with the possibility to personalise and have easy access to objects on the open shelves.
Depending on your space and needs, complete this solution with your choice of a mirror or mirror cabinet from our range, sold separately.
The high gloss finish in white creates a sleek and contemporary expression emphasised with integrated handles for a refined look.

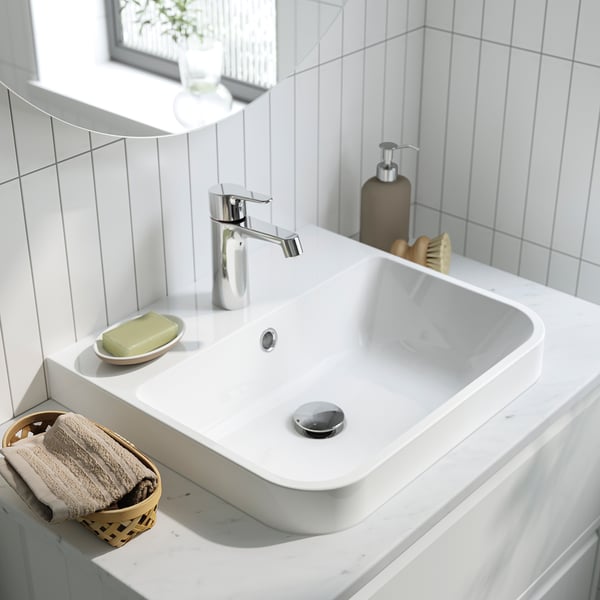

The wash-basin is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
This combination is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know

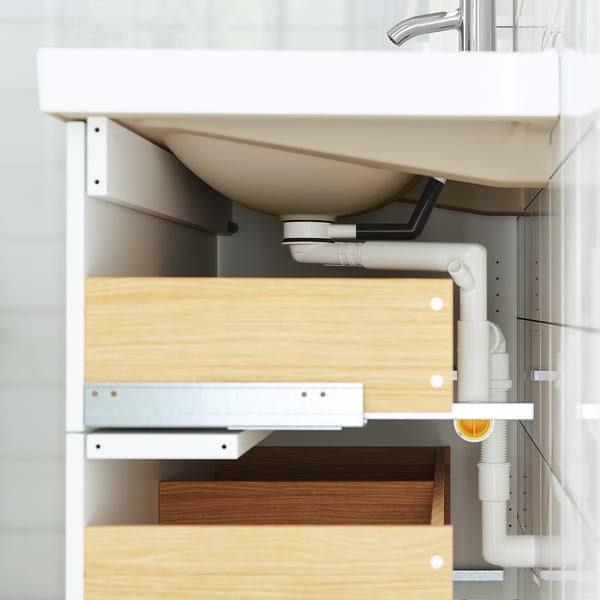

Comprises: 1 wash-stand with drawers, 1 open cabinet, 1 countertop, 1 semi-recessed wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials & care
Material
- Frame/ Bottom panel:
- Particleboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Top rail:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic edging, Plastic edging
- Middle rail/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging
- Drawer front:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Drawer bottom:
- Fibreboard, Plastic foil, Plastic foil
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Frame/ Shelf:
- Particleboard, Plastic foil, Plastic edging (min. 50% recycled), Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Fibreboard, Plastic foil, Melamine foil
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Technical Information
BROGRUND
Wash-basin mixer tap, chrome-plated
Article Number605.321.09| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 350 mm (13 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

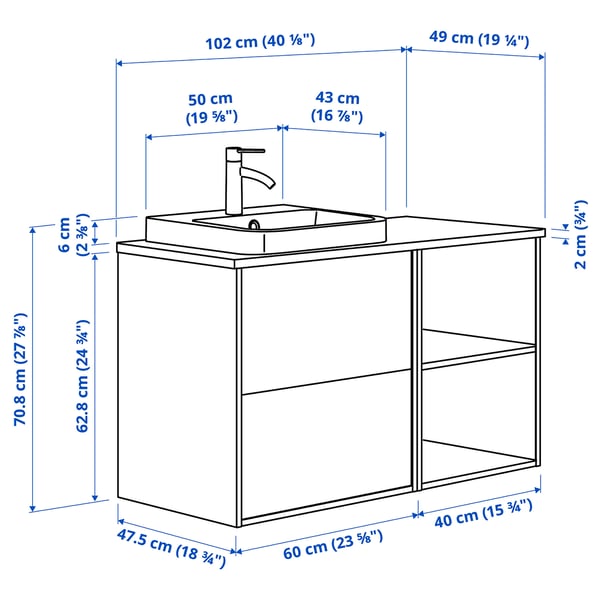

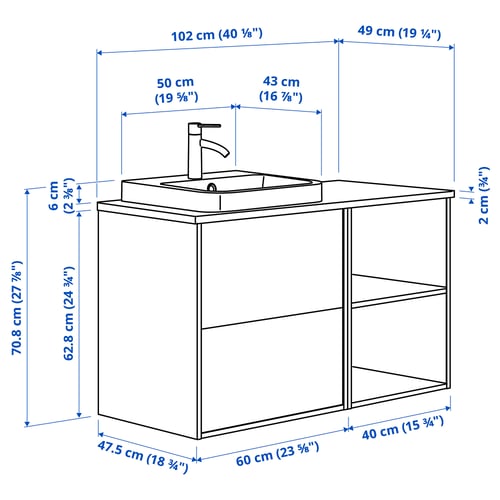

Measurements
- Width: 102.0 cm
- Depth: 49.0 cm
- Height: 70.8 cm
- Drawer front, thickness: 16 mm
Packaging
ÄNGSJÖN
Article Number705.565.38- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 1
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 12.00 kg
- Package(s): 1
BROGRUND
Article Number605.321.09- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
RÄNNILEN
Article Number305.624.33- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.50 kg
- Package(s): 1
BACKSJÖN
Article Number505.499.40- Width: 47 cm
- Height: 17 cm
- Length: 60 cm
- Weight: 10.30 kg
- Package(s): 1
HAGAÅN
Article Number805.355.12- Width: 49 cm
- Height: 11 cm
- Length: 67 cm
- Weight: 14.13 kg
- Package(s): 1
TOLKEN
Article Number005.730.32- Width: 50 cm
- Height: 3 cm
- Length: 114 cm
- Weight: 7.79 kg
- Package(s): 1
