VENSJÖN Kitchen mixer tap for water heater, chrome-plated
How to get it
10 year guarantee
VENSJÖN mixer tap is developed for use with non-pressurized water heaters. Chrome-plated, long-lasting quality that will provide a steady flow of water for years to come.
Product details
Suitable for use with non-pressurized water heaters.
10 year guarantee. Read about the terms in the guarantee brochure.
Chrome-plated brass is a hard and durable surface that is easy to clean.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
IKEA of Sweden
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
A tool is included that makes it easy to install the mixer tap in place.
3 water connections with dia. G3/8 (R10) included. Length of inlet connection 370 mm. Length of connection to and from the water tank 515 mm.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
When water is heated in a water heater, it expands and drips out of the tap. This is normal and prevents excessive pressure from building up in the water heater which could cause damage.
Swivel spout: 360°.
To make a hole for the kitchen mixer tap FIXA 2-piece tool set can be recommended; sold separately.
Water heater not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
- Spout:
- Brass, Brass, Chrome-plated
- Body:
- Zinc, Brass, Chrome-plated
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
VENSJÖN Kitchen mixer tap for water heater704.746.94Advice and care instructions
VENSJÖN Kitchen mixer tap for water heater704.746.94Technical information
VENSJÖN
Kitchen mixer tap for water heater, chrome-plated
Article number704.746.94| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 5.0 l/min |
| Annual energy consumption | 437 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | KIWA |

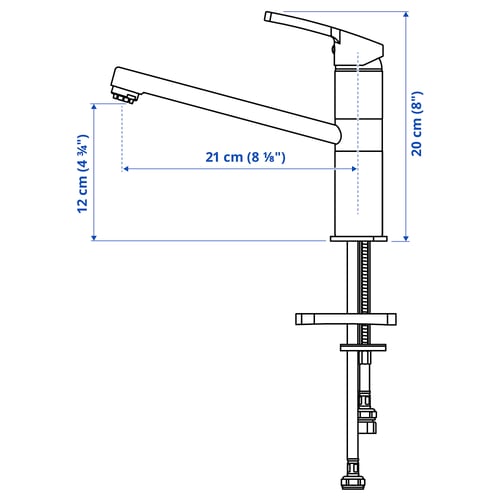

Measurements
- Length: 21 cm
- Height: 20 cm
Packaging
VENSJÖN
Article number704.746.94- Width: 27 cm
- Height: 5 cm
- Length: 38 cm
- Weight: 1.50 kg
- Package(s): 1
