RÅGRUND / BACKSJÖN Open wsh-stnd w drw/wash-basin/tap, bamboo, 80x48x89 cm
Price 339.00€
Price incl. VAT
Price and range may vary between online & store.
Silicone is needed for installation, not included.
How to get it
Available services
Article number795.998.83
Product details
Article number795.998.83
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials and care
Material
Open wash-stand with 1 drawer
- Basematerial/ Drawer front/ Drawer side:
- Bamboo, Clear acrylic lacquer
- Side panel:
- Fibreboard, Bamboo veneer
- Drawer bottom:
- Fibreboard, Bamboo veneer, Clear acrylic lacquer
Wash-basin
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
Wash-basin mixer tap
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Water trap w flexible pipe, 1 bowl
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Safety and compliance
The washbasin should not come in contact with ammonia, acids, strong detergents, hair dye or chlorine.Must be secured to the wall for a safe installation. Different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home, sold separately.This product bears the CE mark.
Assembly and documents
Assembly instructions
RÅGRUND Open wash-stand with 1 drawer506.105.79BACKSJÖN Wash-basin805.451.20BROGRUND Wash-basin mixer tap905.320.99RÄNNILEN Water trap w flexible pipe, 1 bowl205.545.32Advice and care instructions
BACKSJÖN Wash-basin805.451.20BROGRUND Wash-basin mixer tap905.320.99BROGRUND Wash-basin mixer tap905.320.99Technical information
BROGRUND
Wash-basin mixer tap, chrome-plated
Article number905.320.99| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

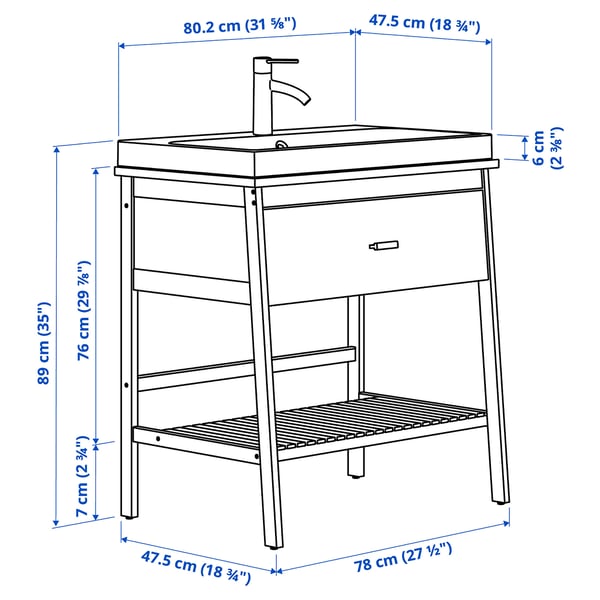

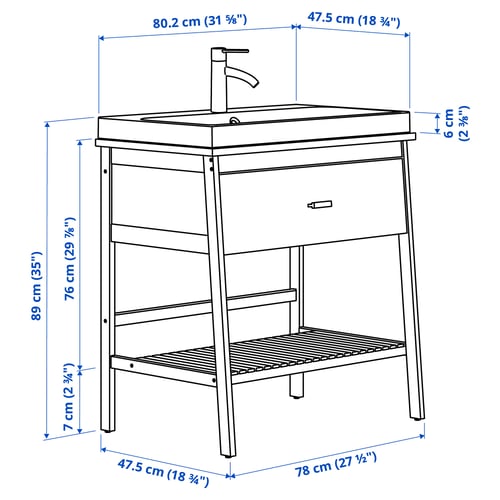

Measurements
- Width: 80.2 cm
- Depth: 47.5 cm
- Height: 89 cm
Packaging
This product comes as 4 packages.
RÅGRUND
Article number506.105.79- Width: 56 cm
- Height: 8 cm
- Length: 84 cm
- Weight: 13.61 kg
- Package(s): 1
BACKSJÖN
Article number805.451.20- Width: 52 cm
- Height: 17 cm
- Length: 90 cm
- Weight: 15.30 kg
- Package(s): 1
BROGRUND
Article number905.320.99- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.44 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
