TÄNNFORSEN / ORRSJÖN Wash-stnd w drawers/wash-basin/tap, light grey, 102x49x69 cm
Must be completed with
How to get it
10 year guarantee

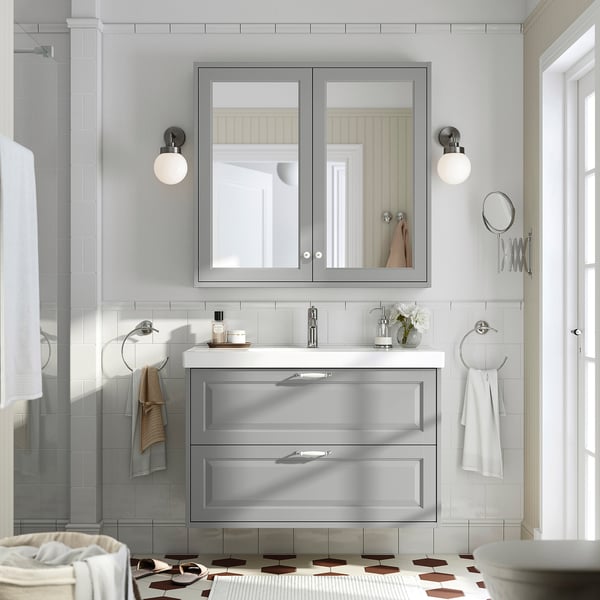

TÄNNFORSEN bathroom furniture expresses classic elegance with bevelled edges that add a crafted look. This combo has 2 spacious drawers and room on the wash-basin for toothbrushes and soap.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
A timeless feel in light grey with bevelled panels that add sense of craftmanship and attention to detail. You get a warm and graceful ambience that becomes a statement of your unique style.
The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
Add knobs or handles to create the spot-on solution for your style and taste. Sold separately.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the TÄNNFORSEN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 1 integrated wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Knobs and handles are sold separately.
Materials and care
Material
- Side frame/ Support rail/ Drawer front frame:
- Fibreboard, Plastic foil (min. 70% recycled), Plastic edging, Plastic edging (min. 50% recycled)
- Inner side filling/ Drawer front panel:
- Fibreboard, Plastic foil (min. 70% recycled), Melamine foil
- Middle rail/ Drawer divider/ Drawer sides:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Bottom panel:
- Particleboard, Plastic foil (min. 70% recycled), Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer back:
- Particleboard, Plastic foil
- Drawer bottom:
- Fibreboard, Plastic foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Basematerial:
- Ceramics, Coloured glaze
- Brass, Chrome-plated
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety and compliance
Assembly and documents
TECHNICAL INFORMATION
VOXNAN
Wash-basin mixer tap, chrome-plated
Article number805.332.59| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

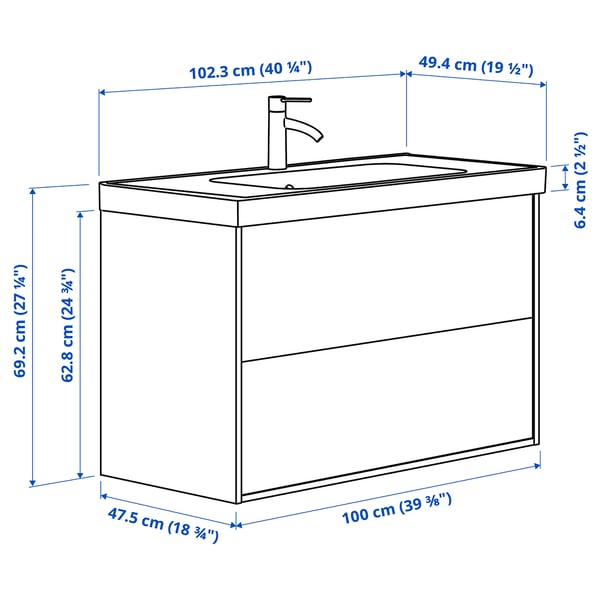

Measurements
- Width: 102.3 cm
- Depth: 49.4 cm
- Height: 69.2 cm
- Drawer front, thickness: 16 mm
Packaging
TÄNNFORSEN
Article number005.351.20- Width: 48 cm
- Height: 8 cm
- Length: 114 cm
- Weight: 19.88 kg
- Package(s): 1
- Width: 49 cm
- Height: 6 cm
- Length: 104 cm
- Weight: 16.72 kg
- Package(s): 1
ORRSJÖN
Article number705.450.69- Width: 55 cm
- Height: 19 cm
- Length: 106 cm
- Weight: 30.20 kg
- Package(s): 1
VOXNAN
Article number805.332.59- Width: 18 cm
- Height: 7 cm
- Length: 35 cm
- Weight: 1.36 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
