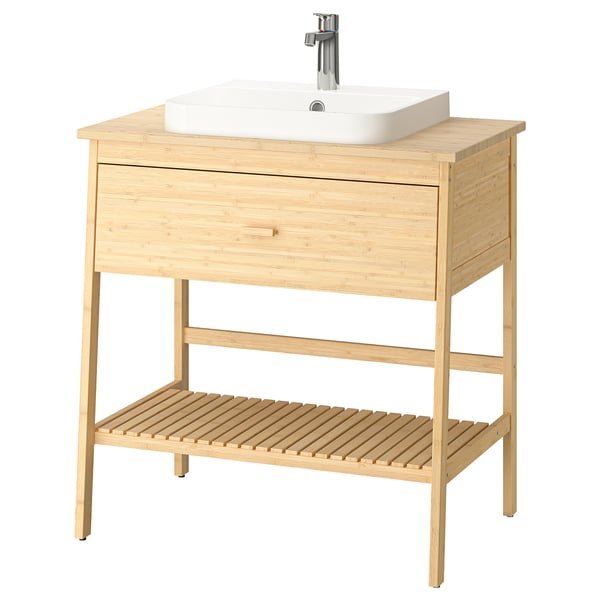

RÅGRUND / BACKSJÖN Open wsh-stnd w drw/wash-basin/tap, bamboo, 82x49x91 cm
How to get it
Bamboo is a natural, hardwearing material that gives a warm expression.
Product details
Coordinates nicely with other products in the RÅGRUND series.
The bamboo thick veneer countertop with unique grain pattern adds a natural, warm ambience to your bathroom.
The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.
The countertop is suitable for use in wet or humid spaces.

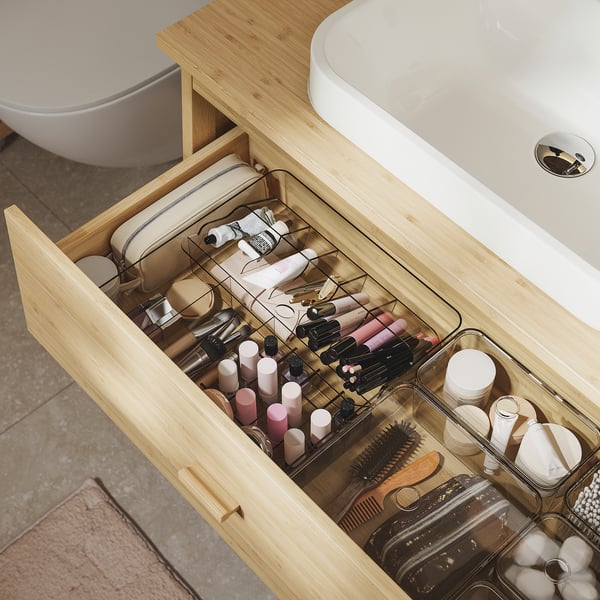

The smooth-running drawer with pull-out stop opens all the way for a good overview without falling out.
The open shelf makes it easy for you to see and reach your things.
Adjustable feet for increased stability and protection against floor moisture.
Use the space on the wash-basin to place toothbrush holder and soap dispenser.
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
Materials and care
Material
- Basematerial/ Drawer front/ Drawer side:
- Bamboo, Clear acrylic lacquer
- Side panel:
- Fibreboard, Bamboo veneer
- Drawer bottom:
- Fibreboard, Bamboo veneer, Clear acrylic lacquer
- Basematerial:
- Polyester/crushed marble, Polyester
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Brass, Chrome-plated
Bamboo, Particleboard, Clear acrylic lacquer
Safety and compliance
TECHNICAL INFORMATION
BROGRUND
Wash-basin mixer tap, chrome-plated
Article number505.321.00| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min (1.5 gpm) |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 1/2" (R15) " |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

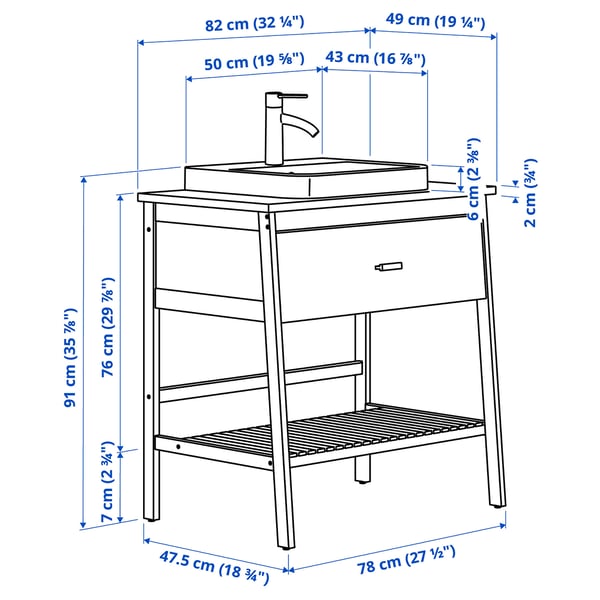

Measurements
- Width: 82.0 cm
- Depth: 49.0 cm
- Height: 91 cm
Packaging
RÅGRUND
Article number506.105.79- Width: 56 cm
- Height: 8 cm
- Length: 84 cm
- Weight: 13.61 kg
- Package(s): 1
BACKSJÖN
Article number405.451.22- Width: 47 cm
- Height: 17 cm
- Length: 60 cm
- Weight: 10.30 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
BROGRUND
Article number505.321.00- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
ÅLSKEN
Article number705.551.19- Width: 50 cm
- Height: 3 cm
- Length: 92 cm
- Weight: 6.56 kg
- Package(s): 1
