This Red Dot Design Award winner stands out with its soft, generous curves and matte black finish –a traditional vibe enhanced by knob and switch controls. LED lighting gives even light over the hob.
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher. 2 grease filters included.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 660 m³/h.
Noise level at max. exhaust speed: 57 dB (A).
Extraction rate in re-circulation mode: 384 m³/h.
Noise level at max. re-circulation speed: 69 dB (A).
Voltage: 220-240V.
Wall mounted extractor hood with 4 different speeds.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 440.
Flexible pipe for fan and charcoal filter sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety & compliance
Assembly & documents
Assembly instructions
FOKUSERA Wall mounted extractor hood205.269.97Technical information
FOKUSERA
Wall mounted extractor hood, black, 70 cm
Article number205.269.97| Brand Name | IKEA |
| Model Identifier | FOKUSERA 20526997 |
| Annual energy consumption | 38.2 kWh/annum |
| Energy efficiency class | A+ |
| Fluid Dynamic Efficiency | 35.2 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 68.1 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 75.1 % |
| Grease Filtering Efficiency class | C |
| Air flow at minimum speed in normal use | 275 m³/h |
| Air flow at maximum speed in normal use | 630 m³/h |
| Air flow at maximum speed in normal use, recirculation | 361 m³/h |
| Air flow at intensive or boost setting | N/A m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 45 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 64 dB |
| Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation | 67,4 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | N/A dB |
| Power consumption in Off mode | N/A Watt |
| Power consumption in standby mode | 0.49 Watt |

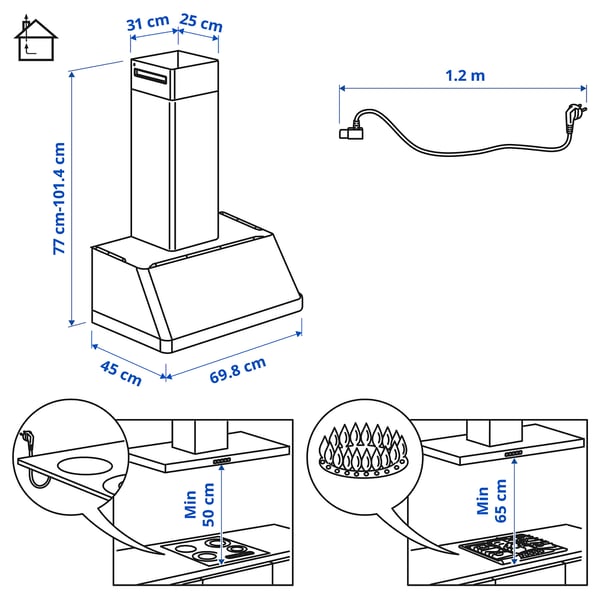

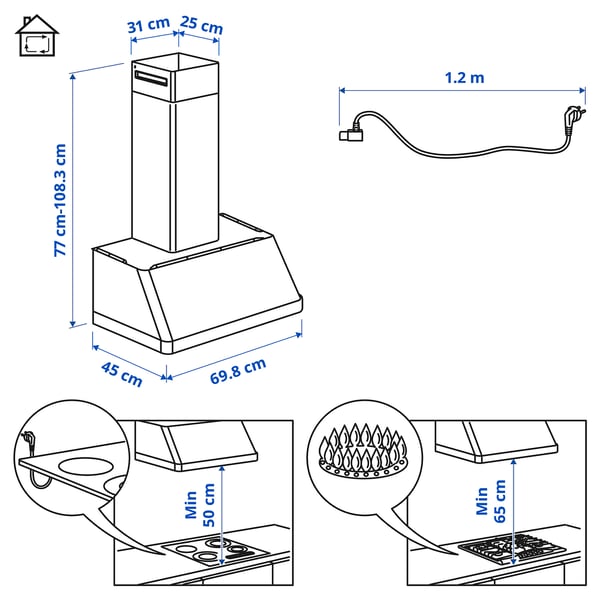

Measurements
- Width: 69.8 cm
- Depth: 45.0 cm
- Min. height extraction: 77.0 cm
- Max. height extraction: 101.4 cm
- Min. height recirculation: 77.0 cm
- Max. height recirculation: 108.3 cm
- Width of chimney: 31.0 cm
- Depth of chimney: 25.0 cm
- Weight: 19.80 kg
- Cord length: 120.0 cm
- Motor power: 250 W
Packaging
FOKUSERA
Article number205.269.97- Width: 54 cm
- Height: 43 cm
- Length: 113 cm
- Weight: 20.10 kg
- Package(s): 1
Customer reviews
Find your perfect appliance!
Discover the IKEA Appliance Guide, here to help you find the perfect appliance. Answer a few simple questions and we’ll guide you to the ideal oven, fridge and more for your home. Start your journey and choose with ease!
Quality/durability
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
Function solution
Sound levels
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
