With a combination of open and closed storage, you create ideal locations for things both big and small and stay organised. The beautiful reflection in the mirror makes every morning a good morning.
Product details
Cabinet code ENHET B103
This combination accommodates different storage needs. The deep wash-basin cabinet is a good place for bulkier items and the high cabinet with shelves is ideal for towels and taller bottles.
The wall frame is equipped with a swivel shelf and drill-free hooks for hanging things within reach.
You can easily add ENHET accessories to extend the use of your storage combination. And best of all – you don’t have to drill. Sold separately.
The unique wedge dowels make assembly easy and the fittings are nearly invisible.
Good sense and feel in beautiful partnership. The foil surface resists moisture, scratches and bumps, while the wood pattern creates a lively and warm expression.
Good to know
Secure that the material in your bathroom walls can support the weight of the furniture. If you are uncertain about the installation, contact a professional.
Knob or handle, sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Side panel/ Bottom panel/ Shelf:
- Particle- and fibreboard with honeycomb paper filling (100% recycled paper), Plastic foil, Plastic edging
- Back rail:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Basematerial:
- Particleboard
- Front side/ Backside:
- Plastic foil
- Edge:
- Plastic edging
- Side panel/ Bottom panel/ Top panel/ Shelf:
- Particleboard, Plastic foil, Plastic edging
- Back panel:
- Fibreboard, Plastic foil
- Tubes:
- Steel, Powder coating
- Shelf:
- Galvanized steel, Powder coating
- Wedge:
- Steel, Epoxy/Acrylic coating
- Glass, Plastic foil
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
- Ceramics, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
Care
Wipe clean with a mild soapy solution.
Wipe dry with a clean cloth.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Clean: With a mild soapy solution. Wipe dry with a clean and dry cloth.
Safety & compliance
Assembly & documents
Assembly instructions
Advice & Care instructions
ENHET Base cb f washbasin w shelf304.404.65ENHET Base cb f washbasin w shelf304.404.65ENHET Door304.576.44ENHET Door504.576.43ENHET High cb w 4 shelves104.404.52ENHET High cb w 4 shelves104.404.52ENHET Wall fr w shelves004.489.67LETTAN Mirror805.564.01LETTAN Mirror805.564.01TVÄLLEN Single wash-basin504.508.25PILKÅN Wash-basin mixer tap505.328.50PILKÅN Wash-basin mixer tap505.328.50Technical information
PILKÅN
Wash-basin mixer tap, chrome-plated
Article number505.328.50| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |

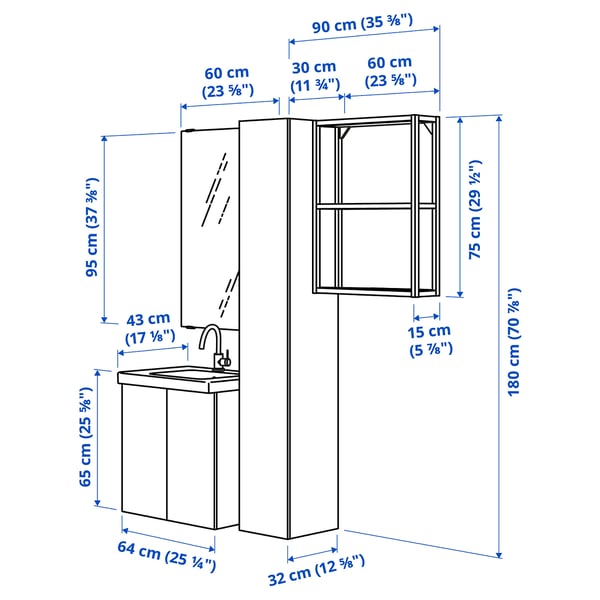

Measurements
- Width: 64 cm
- Depth: 43 cm
- Height: 65 cm
Packaging
ENHET
Article number304.404.65- Width: 41 cm
- Height: 14 cm
- Length: 68 cm
- Weight: 13.13 kg
- Package(s): 1
ENHET
Article number304.576.44- Width: 31 cm
- Height: 2 cm
- Length: 186 cm
- Weight: 6.85 kg
- Package(s): 1
ENHET
Article number504.576.43- Width: 31 cm
- Height: 2 cm
- Length: 66 cm
- Weight: 2.26 kg
- Package(s): 2
ENHET
Article number104.404.52- Width: 31 cm
- Height: 7 cm
- Length: 198 cm
- Weight: 22.50 kg
- Package(s): 1
ENHET
Article number004.489.67- Width: 20 cm
- Height: 8 cm
- Length: 76 cm
- Weight: 5.37 kg
- Package(s): 1
LETTAN
Article number805.564.01- Width: 72 cm
- Height: 2 cm
- Length: 102 cm
- Weight: 6.10 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
TVÄLLEN
Article number504.508.25- Width: 48 cm
- Height: 20 cm
- Length: 68 cm
- Weight: 18.60 kg
- Package(s): 1
PILKÅN
Article number505.328.50- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 0.90 kg
- Package(s): 1
