10 year guarantee
You save hot water and energy every time you lift the lever. The cold start function avoids the unnecessary use of hot water for daily rituals like washing your hands or brushing your teeth.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
The cold-start function prevents hot water waste and saves energy. When you lift the lever straight up, only cold water is released. The function restricts opening the lever fully to the right.
Hot water is released by turning the lever to the left. It is only then that hot water is consumed.
This is a durable mixer tap that you can use for many years, since the hard, ceramic discs withstand the friction that always occurs when you change the temperature of the water.

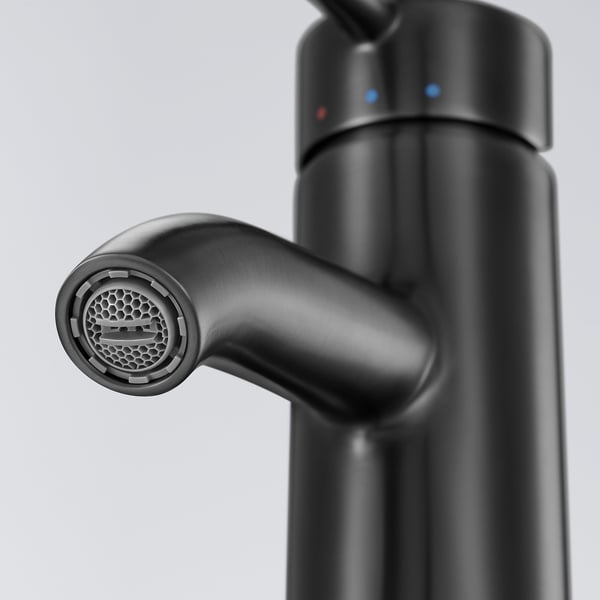

An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
Magnus Elebäck
Good to know
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 3/8" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Overflow ring, plug lid, fixing screw and waste grill in matching colour included.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Zinc, Metallized
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety & compliance
Assembly & documents
Assembly instructions
DALSKÄR Wash-basin mixer tap706.034.98Advice & Care instructions
DALSKÄR Wash-basin mixer tap706.034.98DALSKÄR Wash-basin mixer tap706.034.98Technical information

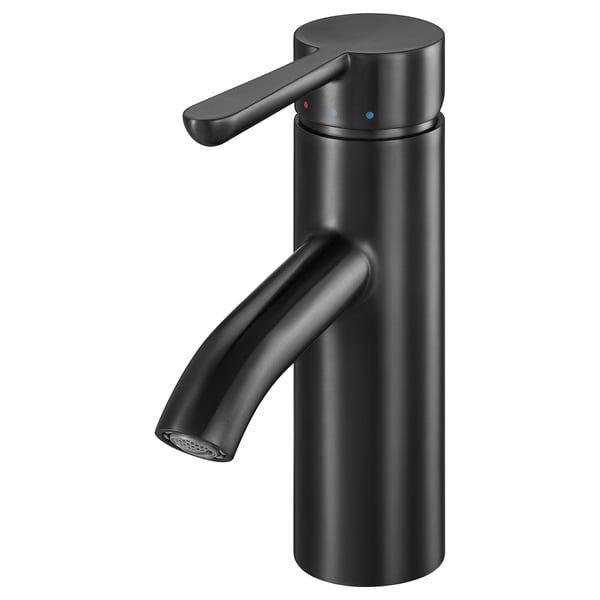

DALSKÄR
Wash-basin mixer tap, black
Article number706.034.98| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

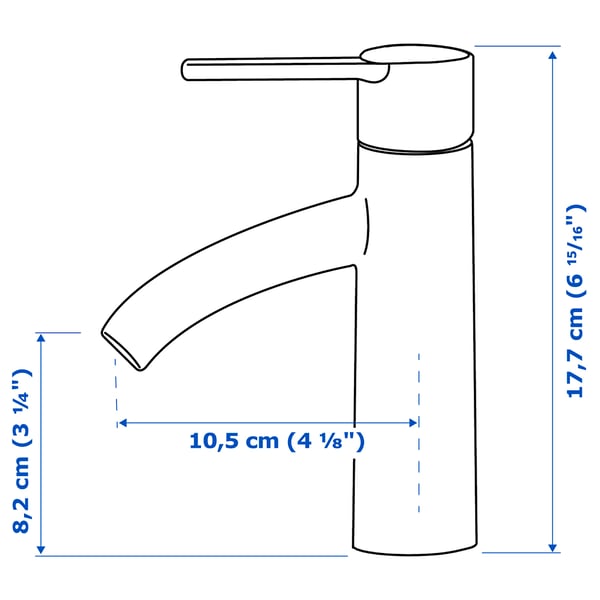

Measurements
- Height: 18 cm
Packaging
DALSKÄR
Article number706.034.98- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.50 kg
- Package(s): 1
