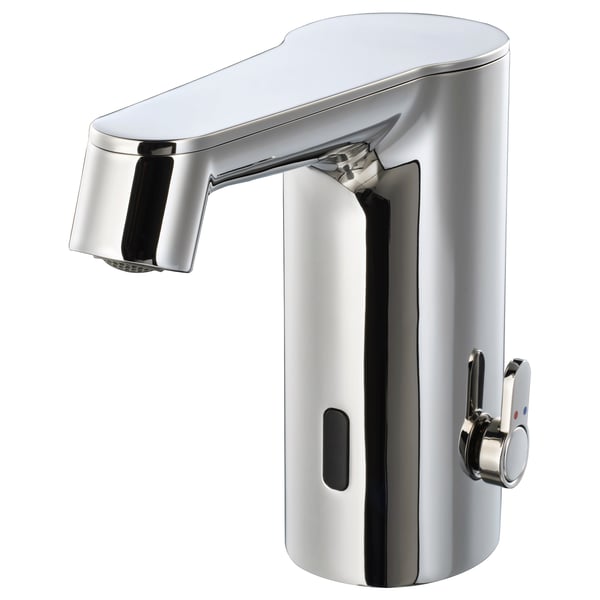

BROGRUND Wash-basin mixer tap with sensor, chrome-plated
How to get it
Collect 47 points with
10 year guarantee
Like magic, the water turns on at the slightest hand movement in front of the tap, at a pre-set temperature. A clean and simple design that’s hygienic too, since you don’t need to touch the tap.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.

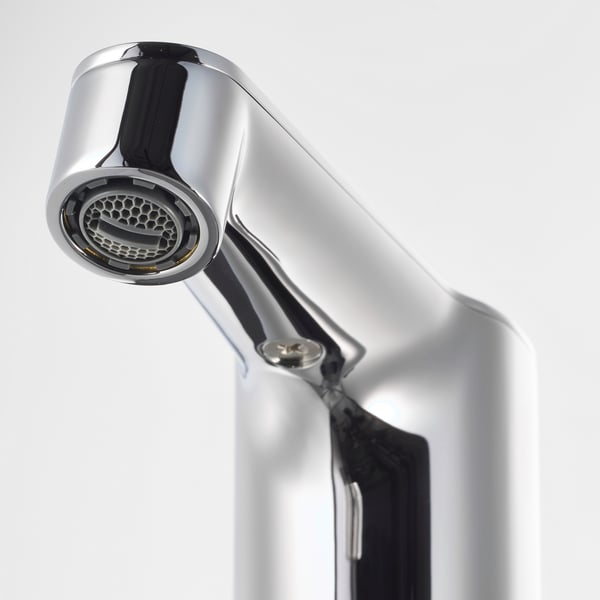

Built-in pressure compensating aerator keeps the water flow just right and enables water-efficiency.
H Preutz/N Karlsson
Good to know
A tool is included that makes it easy to install the mixer tap in place.
Connection hoses with 3/8" connection included. Connection length: 60 cm.
4 batteries (LR6 AA 1.5V) included.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Replacement batteries are available in most stores where alkaline batteries are sold.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Fits IKEA wash-basins and standard wash-basins from other manufacturers.
The water turns on automatically when the sensor detects your hands or an object in front of it, and turns off automatically 2 seconds after removing them.
The water temperature is controlled using the lever on the side of the mixer tap.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Body:
- Zinc, Chrome-plated
- Inner body:
- Brass
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Safety & compliance
Assembly & documents
Assembly instructions
BROGRUND Wash-basin mixer tap with sensor004.233.54Technical information
BROGRUND
Wash-basin mixer tap with sensor, chrome-plated
Article number004.233.54| Brand Name | IKEA |
|---|---|
| Type of tap | Wash-basin mixer tap with sensor |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 415 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 1 bar (0,1MPa) (14.5 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 575 mm (22 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Amount of batteries | 4 pcs |
| Battery type | AA |
| Third party certified according to local standards by |

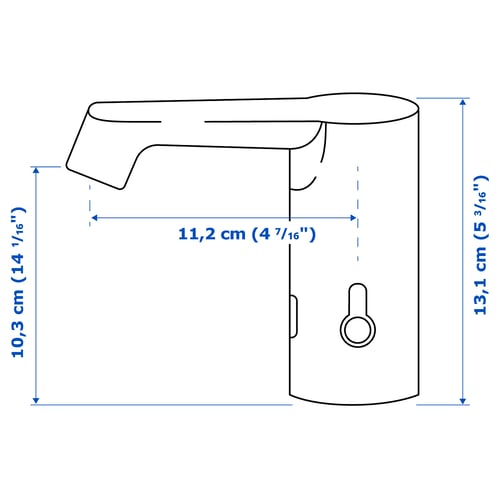

Measurements
- Height: 13 cm
Packaging
BROGRUND
Article number004.233.54- Width: 21 cm
- Height: 7 cm
- Length: 35 cm
- Weight: 1.65 kg
- Package(s): 1
Customer reviews
Related products
Explore more options
Recommended for you
SustainabilityPeople and planet
Energy and resources
Did you know using water more efficiently can reduce your energy bills and help tackle climate change?
Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.
Material
What are zinc and zamak?
Zinc is a metallic element while zamak is a mixture of zinc, aluminium, magnesium and copper. Both are durable materials and easy to cast into different shapes. They are good at conducting heat and electricity. Objects made of zinc or zamak are often given a surface treatment to resemble metals like gold, brass or stainless steel. Both zinc and zamak retain their good properties when they are recycled to become new objects.
