How to get it
10 year guarantee

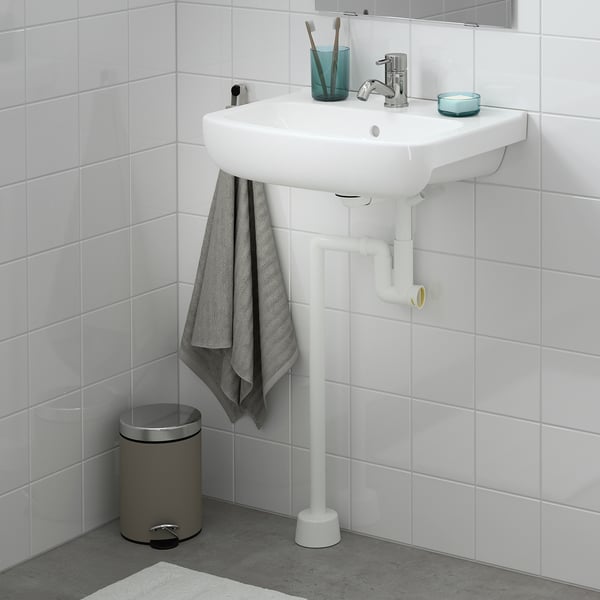

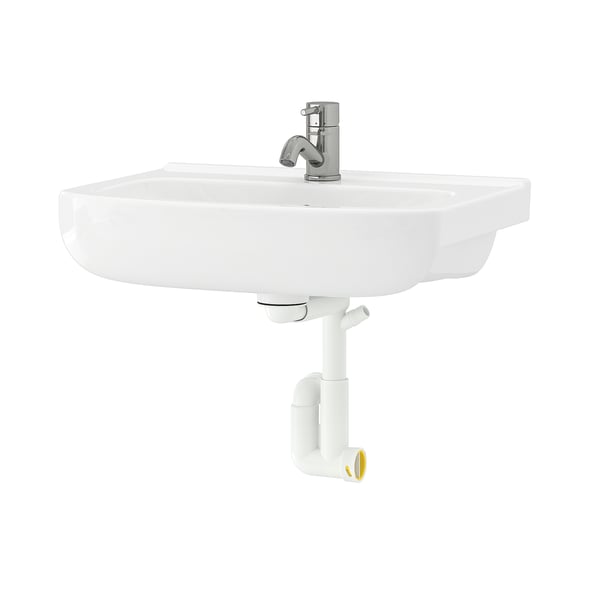

This combination includes all the parts for a complete wash-basin solution in your bathroom. Use it wall-mounted or fit it into a wash-basin cabinet.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
May be fitted into a wash-basin cabinet or wall hung.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Vitreous china, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Wipe clean with a soft cloth dampened in water and a mild non-abrasive washing-up detergent or soap, if necessary.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety & compliance
Assembly & documents
Technical information
PILKÅN

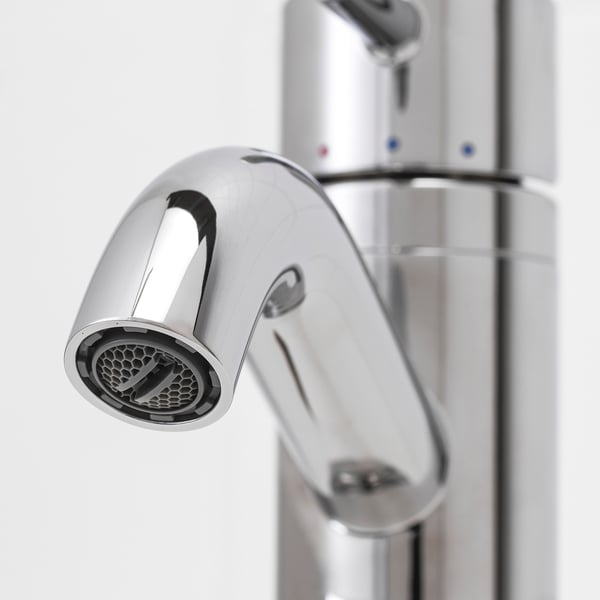

Wash-basin mixer tap, chrome-plated
Article number505.328.50| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
Measurements
- Width: 54 cm
- Depth: 40 cm
Packaging
BJÖRKÅN
Article number004.681.49- Width: 45 cm
- Height: 19 cm
- Length: 58 cm
- Weight: 14.60 kg
- Package(s): 1
PILKÅN
Article number505.328.50- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 0.90 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
