If you take a closer look at ÄNGSJÖN, you’ll soon discover the small details that make a difference to both form and function. Designer Sarah Fager demonstrates how the integrated handle on the cabinets and drawers contributes to the calm feel. “The handle extends across the entire drawer front and cabinet door, making it easy to grip. On the drawer, it’s also facing downwards to not collect dust and dirt.” Sarah has also designed BACKSJÖN wash-basin with clean lines. It goes perfectly together with ÄNGSJÖN. “It’s made of crushed marble, which can be made slightly thinner and neater than porcelain without losing strength. In addition to achieving a light feel, we managed to reduce the weight of the wash-basin compared to previous models.“

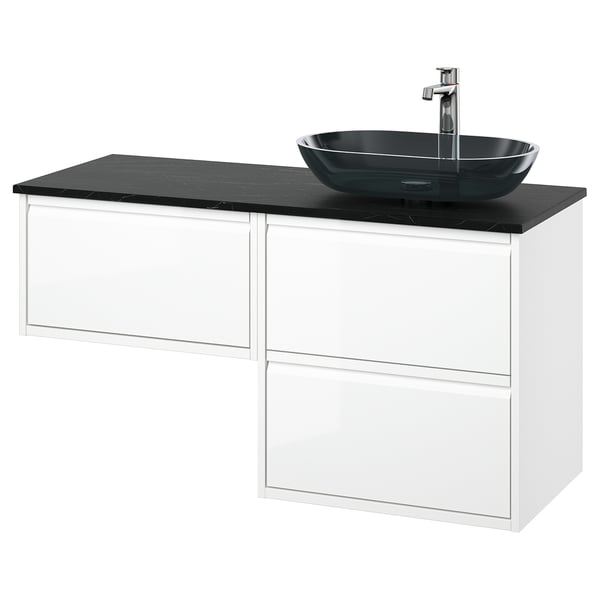

ÄNGSJÖN / OXMYREN Wash-stand/wash-basin/tap, high-gloss white/black marble effect, 122x49x77 cm
How to get it
10 year guarantee
Slightly unexpected and simply delightful. Here you have 3 drawers for all your essentials, lovely countertop space for decorative objects and a wash-basin in glass that serves as icing on the cake.
Product details
A combo with a 2-drawer wash-stand, a 1-drawer wash-stand, a countertop and wash-basin resulting in a functional and eye-catching solution that adds character to your bathroom.
Depending on your space and needs, complete this solution with your choice of a mirror or mirror cabinet from our range, sold separately.
The high gloss finish in white creates a sleek and contemporary expression emphasised with integrated handles for a refined look.
The transparent, dark grey glass of the washbasin creates a light and airy feel. Made of safety glass that is durable and built to last.
This combination is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 1 wash-stand with drawer, 1 countertop, 1 countertop wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Frame/ Bottom panel:
- Particleboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Top rail:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic edging, Plastic edging
- Middle rail/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging
- Drawer front:
- Fibreboard, Plastic foil (min. 50% recycled), Plastic foil, Plastic edging, Plastic edging
- Drawer bottom:
- Fibreboard, Plastic foil, Plastic foil
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Body:
- Tempered glass
- Support:
- Zinc, Chrome-plated
- Sealing ring/ Seal/ Sealing ring/ Gasket/ Seals/ Seal:
- Synthetic rubber
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet connector:
- Polypropylene plastic
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Outlet pipe:
- Polypropylene plastic (min. 50% recycled)
- Assembly tool:
- ABS plastic
- Fibreboard, Plastic foil, Melamine foil
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety & compliance
Assembly & documents
Assembly instructions
ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawers305.350.86BROGRUND Wash-basin mixer tap, tall105.320.84OXMYREN Countertop wash-basin304.946.94TOLKEN Countertop805.062.13Advice & Care instructions
ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawer805.350.98ÄNGSJÖN Wash-stand with drawers305.350.86ÄNGSJÖN Wash-stand with drawers305.350.86BROGRUND Wash-basin mixer tap, tall105.320.84BROGRUND Wash-basin mixer tap, tall105.320.84OXMYREN Countertop wash-basin304.946.94OXMYREN Countertop wash-basin304.946.94TOLKEN Countertop805.062.13TOLKEN Countertop805.062.13Technical information
BROGRUND
Wash-basin mixer tap, tall, chrome-plated
Article number105.320.84| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

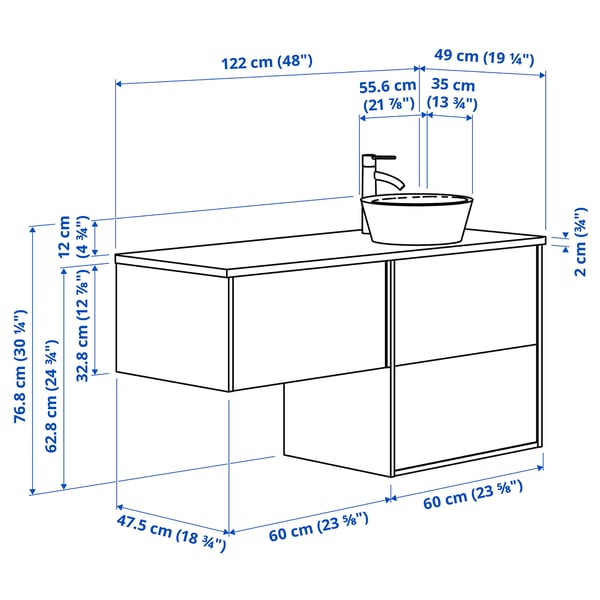

Measurements
- Width: 122.0 cm
- Depth: 49.0 cm
- Height: 76.8 cm
- Drawer front, thickness: 16 mm
Packaging
ÄNGSJÖN
Article number805.350.98- Width: 48 cm
- Height: 9 cm
- Length: 67 cm
- Weight: 14.80 kg
- Package(s): 1
ÄNGSJÖN
Article number305.350.86- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 1
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 11.00 kg
- Package(s): 1
BROGRUND
Article number105.320.84- Width: 23 cm
- Height: 6 cm
- Length: 41 cm
- Weight: 1.82 kg
- Package(s): 1
OXMYREN
Article number304.946.94- Width: 47 cm
- Height: 18 cm
- Length: 67 cm
- Weight: 10.35 kg
- Package(s): 1
TOLKEN
Article number805.062.13- Width: 50 cm
- Height: 3 cm
- Length: 137 cm
- Weight: 9.46 kg
- Package(s): 1
More bath, less room?
Bathrooms often have specific water and drainage pipes which can be tricky to plan around. We can help.
Form in perfect balance
In an intense, fast-paced world with many impressions, the ÄNGSJÖN bathroom furniture gives you something different. With its minimalistic design, the series allows you to create a restful oasis at home where you can relax and feel the calm settle.
Clean lines, smooth surfaces, and on the inside, well-thought-out storage that can swallow everything you need in the bathroom. That’s ÄNGSJÖN. The wall-mounted bathroom furniture gives a stylish and light floating sensation, especially in the broader measurements.
Handle that is easy to grip
Stretch the style with your choices
Wash-basin, countertop, mirror… depending on your choices, you can stretch and draw the minimalistic style in different directions. The expression will, for example, be completely different depending on if you choose ÄNGSJÖN in a high-gloss white finish or in warm oak. You can also complement the closed cabinets and drawers with HAGAÅN open storage in a matching wood expression. “When you have decided that this is the minimalistic bathroom interior you want to go for, there are a lot of combinations that can help you make it your dream bathroom.”
Designer thoughts
Designer thoughts
“When asked to design 3 new bathroom series with distinct expressions, I decided to make the ÄNGSJÖN series all about perfection. The fronts align flawlessly within the cabinet frame, and the integrated handles are designed to give a shadow-free and minimalist expression with no unnecessary details. I love how less became more, creating a strong contemporary look. Whether you go for a high gloss finish or a warm wood feel you’re in for an elegant treat."
