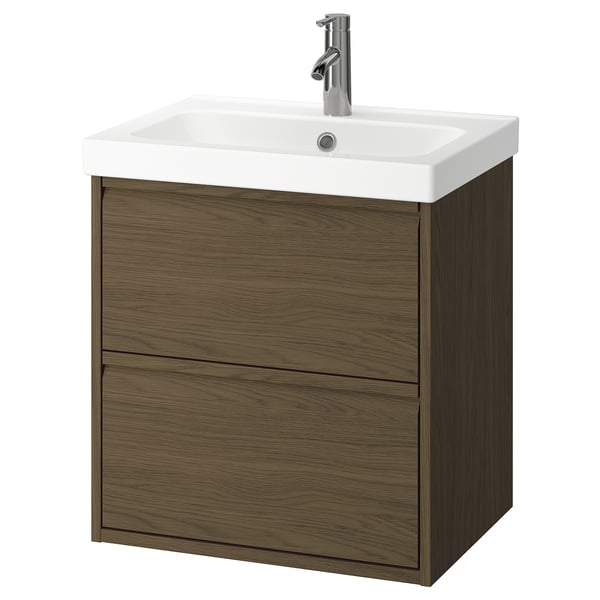

ÄNGSJÖN / ORRSJÖN Wash-stnd w drawers/wash-basin/tap, brown oak effect, 62x49x69 cm
How to get it
10 year guarantee
ÄNGSJÖN bathroom furniture has a modern appeal with minimal details so you can start each day with a clean slate. This combo has 2 spacious drawers and room on the wash-basin for toothbrush and soap.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The brown oak effect finish with a dark wooden look gives your space a warm and welcoming vibe. A contemporary expression with integrated handles that underline the minimalist look.

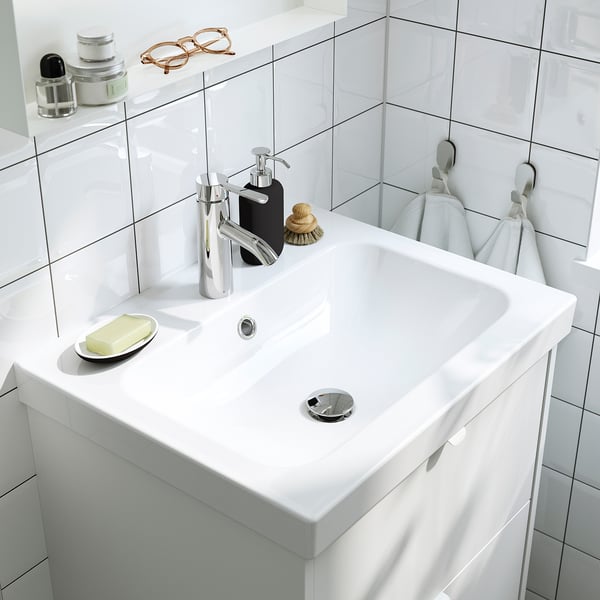

The ceramic wash-basin with its soft shapes and durable surface is made with the best materials and will outlast many years of wear and tear.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
Good to know
Comprises: 1 wash-stand with drawers, 1 integrated wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Frame/ Middle rail/ Bottom panel/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer front:
- Particleboard, Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer bottom:
- Fibreboard, Plastic foil
- Cover/ Spring:
- Stainless steel
- Cover cap/ Mechanism:
- Acetal plastic
- Sealing ring:
- Synthetic rubber
- Cover cap:
- Polycarbonate/ABS plastic
- Basematerial:
- Ceramics, Coloured glaze
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety & compliance
Assembly & documents
Technical information
DALSKÄR
Wash-basin mixer tap, chrome-plated
Article number905.321.17| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | ACS, ETA-Danmark, PZH, BELGAQUA, KIWA, SINTEF |

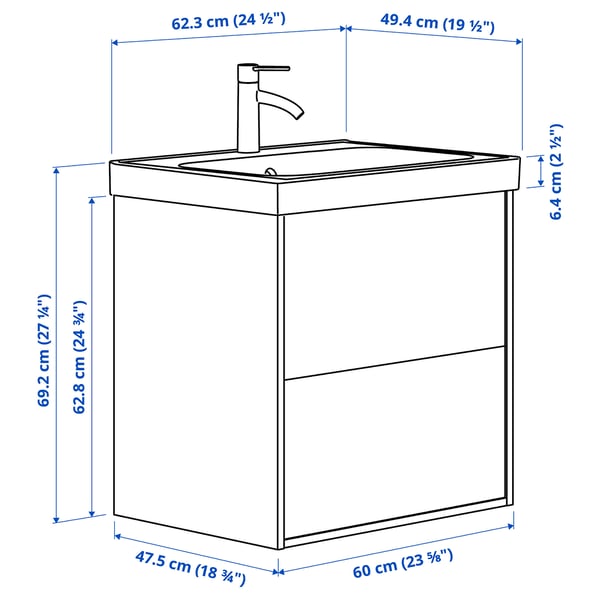

Measurements
- Width: 62.3 cm
- Depth: 49.4 cm
- Height: 69.2 cm
Packaging
ÄNGSJÖN
Article number505.350.85- Width: 57 cm
- Height: 7 cm
- Length: 82 cm
- Weight: 16.25 kg
- Package(s): 1
- Width: 35 cm
- Height: 10 cm
- Length: 61 cm
- Weight: 10.40 kg
- Package(s): 1
ORRSJÖN
Article number305.450.66- Width: 55 cm
- Height: 18 cm
- Length: 66 cm
- Weight: 18.78 kg
- Package(s): 1
DALSKÄR
Article number905.321.17- Width: 18 cm
- Height: 6 cm
- Length: 35 cm
- Weight: 1.39 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
