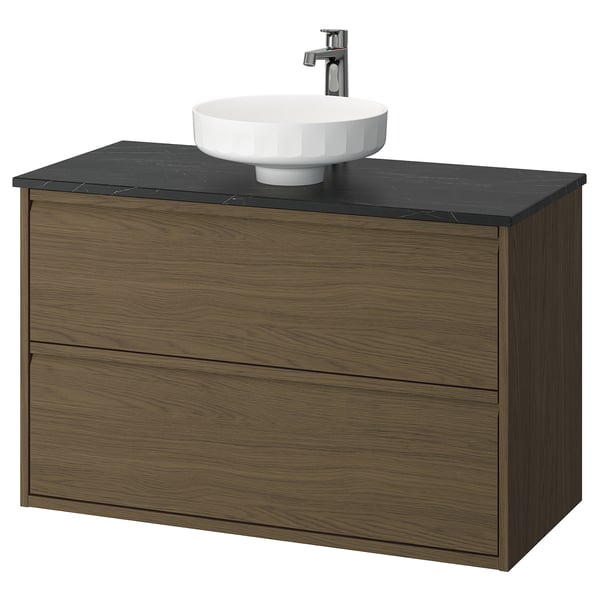

ÄNGSJÖN / LERSJÖN Wash-stnd w drawers/wash-basin/tap, brown oak effect/black marble effect, 102x49x79 cm
How to get it
10 year guarantee
ÄNGSJÖN bathroom furniture has a modern appeal with minimal details. This wash-stand with countertop and a round countertop wash-basin creates a personal and stylish centrepiece in your bathroom.
Product details
Generous, full drawer storage capacity for all your essentials as piping is led through the back and not via a cut-out in the drawers. Drawers open all the way for a good overview.
The brown oak effect finish with a dark wooden look gives your space a warm and welcoming vibe. A contemporary expression with integrated handles that underline the minimalist look.
This cabinet is to be wall-mounted. This creates a spacious feel but also makes it easier to clean floors underneath. It is also possible to add legs depending on the look you prefer.
To make it simpler for you, the countertop is available as pre-cut. You need to cut holes for wash-basin and mixer tap on your own.
Combine with other cabinets in the ÄNGSJÖN series to create a coordinated bathroom solution that fits your space and needs.
10 year guarantee. Read about the terms in the guarantee brochure.
The wash-basin is made of crushed marble which enables sharp, crisp edges with a scratch-resistant surface. This gives a clean and modern look.
Good to know
Comprises: 1 wash-stand with drawers, 1 countertop, 1 countertop wash-basin, 1 water trap and 1 mixer tap.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
Silicone is needed for installation, not included.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Frame/ Middle rail/ Bottom panel/ Drawer divider/ Drawer sides/ Drawer back:
- Particleboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Top rail:
- Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer front:
- Particleboard, Fibreboard, Plastic foil, Plastic edging, Plastic edging (min. 50% recycled)
- Drawer bottom:
- Fibreboard, Plastic foil
- Fibreboard, Plastic foil, Melamine foil
- Polyester/crushed marble, Polyester
- Body:
- Brass, Metallized
- Spout:
- Brass, Brass, Metallized
- Water trap frame/ Cleaning plug/ Cover cap/ Outlet pipe/ Outlet connector:
- Polypropylene plastic
- Sealing ring/ Gasket/ Seal:
- Synthetic rubber
- Waste pipe:
- Synthetic rubber, Polypropylene plastic
- Strainer:
- Stainless steel
- Seals:
- Polyethylene foam
- Assembly tool:
- ABS plastic
Care
Wipe clean with a mild soapy solution.
Wet marks should always be dried off as soon as possible to stop moisture penetration.
Wipe dry with a clean cloth.
Do not use scouring powder, steel wool, hard or sharp tools which can scratch the surface of the washbasin.
Safety & compliance
Technical information
BROGRUND
Wash-basin mixer tap, tall, chrome-plated
Article number105.320.84| Brand Name | IKEA |
| Type of tap | Wash-basin mixer tap |
| Max. flow rate at 3 bar | 5.7 l/min |
| Annual energy consumption | 343 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. countertop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 475 mm (18 3/4") |
| Hose connection size | G 3/8" (R10) |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | Yes |
| Third party certified according to local standards by | ACS, ETA-Danmark, BELGAQUA, KIWA, PZH, SINTEF |

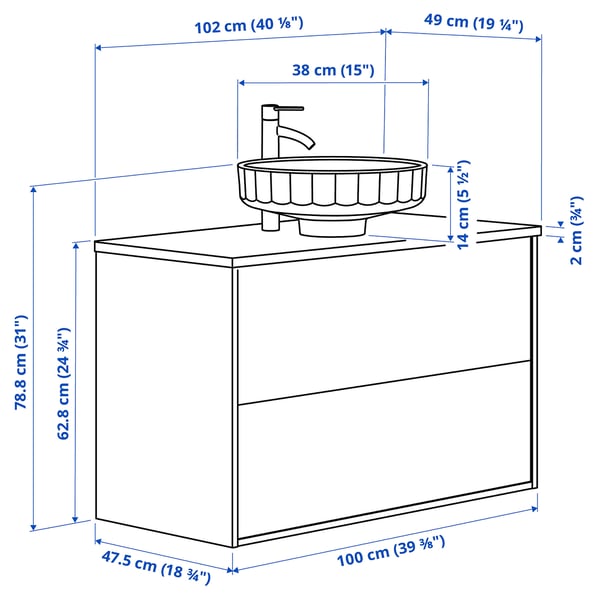

Measurements
- Width: 102.0 cm
- Depth: 49.0 cm
- Height: 78.8 cm
Packaging
ÄNGSJÖN
Article number305.350.91- Width: 48 cm
- Height: 8 cm
- Length: 114 cm
- Weight: 20.00 kg
- Package(s): 1
- Width: 49 cm
- Height: 6 cm
- Length: 104 cm
- Weight: 16.90 kg
- Package(s): 1
TOLKEN
Article number605.062.09- Width: 50 cm
- Height: 3 cm
- Length: 114 cm
- Weight: 7.79 kg
- Package(s): 1
LERSJÖN
Article number905.843.33- Width: 40 cm
- Height: 17 cm
- Length: 40 cm
- Weight: 6.00 kg
- Package(s): 1
BROGRUND
Article number105.320.84- Width: 23 cm
- Height: 6 cm
- Length: 41 cm
- Weight: 1.82 kg
- Package(s): 1
RÄNNILEN
Article number205.545.32- Width: 31 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 0.47 kg
- Package(s): 1
