ÄLMAREN Kitchen mixer tap/dishw shut unit, stainless steel colour
How to get it
10 year guarantee
ÄLMAREN tap in stainless steel helps lower water- and energy-use – so you can lower your bills too. The high spout is practical for cleaning big pots and the quality is guaranteed to outlast many years of washing and rinsing.
Product details
10 year guarantee. Read about the terms in the guarantee brochure.

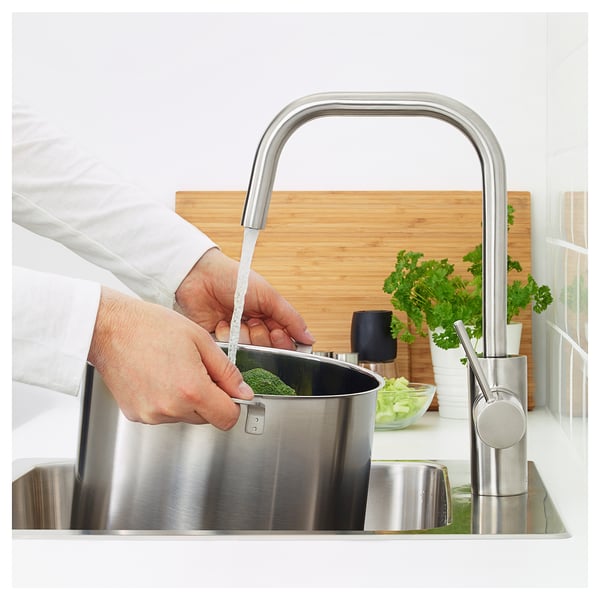

The high spout makes it easier to wash dishes, including large pots.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Brickstad/Palleschitz/Petersén
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.

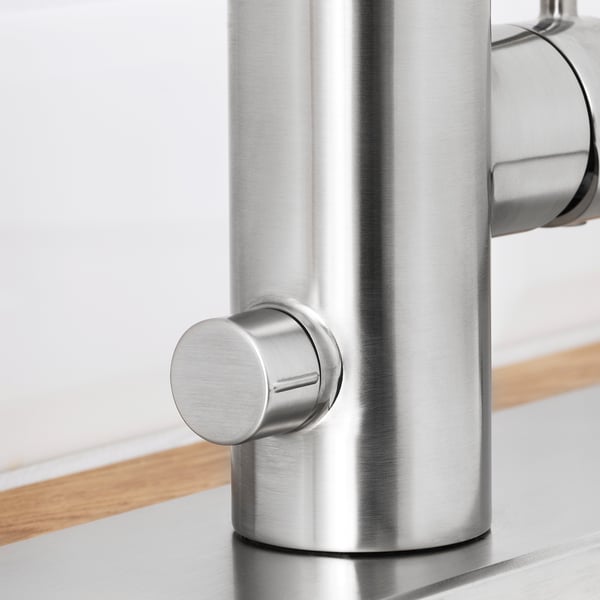

Dishwasher shut-off valve with connection to cold water.
Water and energy saving aerator (8 l/min.) for high-pressure systems included.
Connection hoses with dia. 10 mm (3/8") connection included. Connection length: 35 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Swivel spout is preset to 360° but can be changed to 120°.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Materials & care
Material
- Zinc, Metallized
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety & compliance
Assembly & documents
Assembly instructions
ÄLMAREN Kitchen mixer tap/dishw shut unit303.416.44Advice & Care instructions
ÄLMAREN Kitchen mixer tap/dishw shut unit303.416.44Technical information
ÄLMAREN
Kitchen mixer tap/dishw shut unit, stainless steel colour
Article number303.416.44| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap/dishwasher shut unit |
| Max. flow rate at 3 bar | 8.0 l/min |
| Annual energy consumption | 698 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 425 mm (16 3/4") |
| Hose connection size | G 3/8" (R10) |
| Dishwasher hose connection | G 3/4" (R20) |
| Swivel spout | Swivel spout is preset to 360° but can be changed to 120°. |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | KIWA, SINTEF |

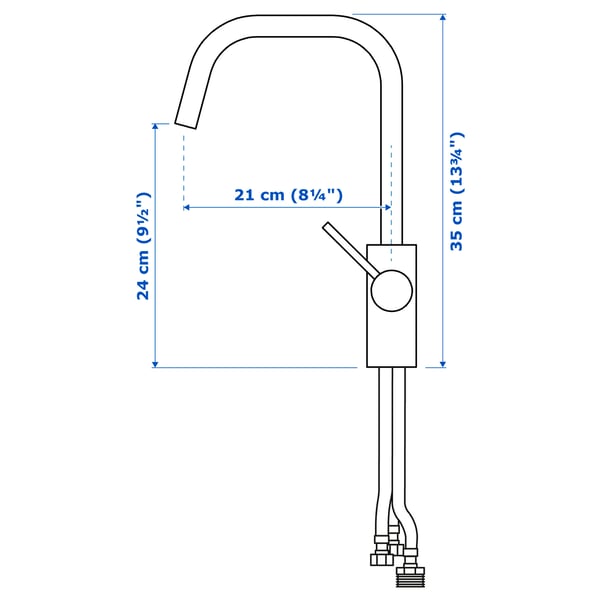

Measurements
- Height: 36 cm
Packaging
ÄLMAREN
Article number303.416.44- Width: 29 cm
- Height: 6 cm
- Length: 50 cm
- Weight: 2.15 kg
- Package(s): 1
Customer reviews
Looks by you
Material
What is brass?
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
