Must be completed with
How to get it
5 year guarantee
This eye-catching angled hood in black creates a spacious feeling around the hob. It comes with a sleek, easy-clean glass surface and LED lighting that effectively illuminates the cooking area.
incl. VAT, plus Shipping costs for delivery or service costs at Click & CollectProduct details
5-year guarantee, free of charge. Read about the terms in the guarantee brochure.
3 speed settings allow you to increase or decrease the hood’s power at the push of a button, depending on your cooking needs.
LED light source included; effectively illuminates the cooking surface.
The inclined design creates a spacious feel around the hob and gives you extra headroom for easy cooking.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
Dishwasher-safe grease filter. By cleaning it regularly, you can maintain efficient airflow, so cooking fumes make a quick exit.
IKEA of Sweden
Good to know
Wall mounted extractor hood with 3 different speeds.
Extraction rate in exhausting mode: 450 m³/h.
Noise level at max. exhaust speed: 60 dB (A).
Extraction rate in re-circulation mode: 370 m³/h.
Noise level at max. re-circulation speed: 73 dB (A).
Voltage: 220-240V.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Please note: To avoid damaging the hood’s glass front, make sure it is fully closed during use and before opening adjacent wall cabinet doors.
Flexible pipe for fan and charcoal filter sold separately.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Environment & materials
Care
You will find complete information about the care of this product under the tab Assembly instructions & documents.
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety and compliance
Assembly and documents
Assembly instructions
STACKBO Wall mounted extractor hood706.023.71Technical information
STACKBO
Wall mounted extractor hood, IKEA 300 black, 55 cm
Article number706.023.71| Brand Name | IKEA |
| Model Identifier | STACKBO 70602371 |
| Annual energy consumption | 45 kWh/annum |
| Energy efficiency class | A |
| Fluid Dynamic Efficiency | 29,2 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 14 Lux/watt |
| Lighting Efficiency class | D |
| Grease Filtering Efficiency | 60 % |
| Grease Filtering Efficiency class | E |
| Air flow at minimum speed in normal use | 250 m³/h |
| Air flow at maximum speed in normal use | 450 m³/h |
| Air flow at maximum speed in normal use, recirculation | 370 m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 48 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 60 dB |
| Airborne acoustical A-weighted sound power emissions art maximum speed available in normal use, recirculation | 73 dB |
| Power consumption in Off mode | 0 Watt |

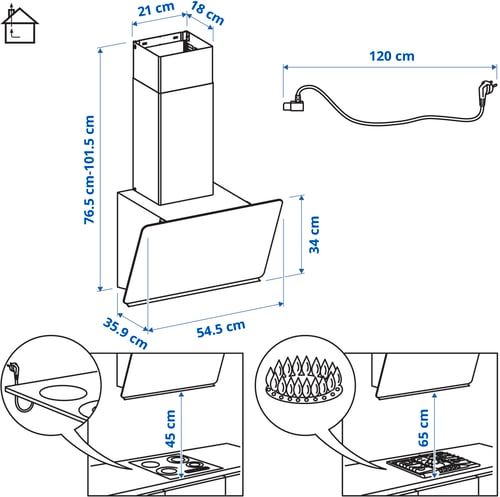

Measurements
- Width: 54.5 cm
- Depth: 35.9 cm
- Height: 34.0 cm
- Min. height extraction: 76.5 cm
- Max. height extraction: 101.5 cm
- Min. height recirculation: 37.5 cm
- Max. height recirculation: 111.5 cm
- Width of chimney: 21.0 cm
- Depth of chimney: 18.0 cm
- Cord length: 1.2 m
- Weight: 8.00 kg
- Motor power: 275 W
Packaging
STACKBO
Article number706.023.71- Width: 49 cm
- Height: 45 cm
- Length: 65 cm
- Weight: 13.00 kg
- Package(s): 1
SustainabilityPeople and planet
Sustainable life at home
Is your extractor hood working at its best?
A greasy filter can slow things down. When clogged, it’s less effective at removing smoke, cooking fats and odours. It can even increase fire risk. A quick clean every 2-3 months (or more often if you’re a fan of frying) keeps it running smoothly – and your kitchen smelling fresh. All IKEA extractor hoods have removable, dishwasher-safe grease filters. Prefer to wash by hand? Just use warm water and a little washing-up liquid. Let the filters air dry, then pop them back in!
Quality
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
