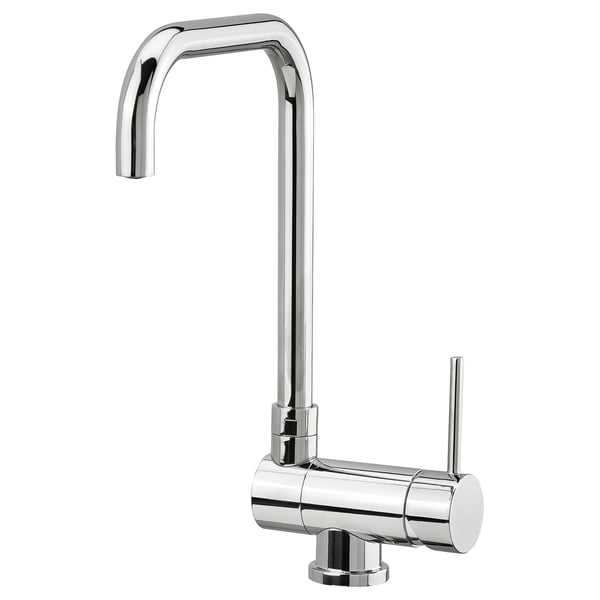

JUTTERN Kitchen mixer tap, foldable, chrome-plated
How to get it
10 year guarantee
JUTTERN foldable tap comes in handy when you have an inward-opening kitchen window. Simply fold the chrome-plated tap and open the window for airing. The integrated aerator reduces water- and energy-use.
incl. VAT, plus Shipping costs for delivery or service costs at Click & CollectProduct details
10 year guarantee. Read about the terms in the guarantee brochure.
The tap conveniently folds down so that it doesn’t get in the way of inward-opening kitchen windows.
An aerator integrated in the tap keeps the water flow just right while less water and energy is used.
The high spout makes it easier to wash dishes, including large pots.
Chrome-plated brass is a hard and durable surface that is easy to clean.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
IKEA of Sweden
Good to know
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
Water and energy saving aerator (8 l/min.) for high-pressure systems included.
Connection hoses with 3/8" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Environment & materials
Material
- Body:
- Brass, Chrome-plated
- Spout:
- Chrome-plated, Stainless steel
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Safety and compliance
Assembly and documents
Assembly instructions
JUTTERN Kitchen mixer tap, foldable504.280.71Advice and care instructions
JUTTERN Kitchen mixer tap, foldable504.280.71Technical information
JUTTERN
Kitchen mixer tap, foldable, chrome-plated
Article number504.280.71| Brand Name | IKEA |
| Type of tap | Kitchen mixer tap |
| Max. flow rate at 3 bar | 8.0 l/min |
| Annual energy consumption | 698 kWh/p.a. |
| Recommended working pressure | 1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi) |
| Min. working pressure | 0.5 bar (0,05MPa) (7.25 psi) |
| Max. static pressure | 10 bar (1,0MPa) (145.0 psi) |
| Max. worktop thickness | 50 mm (2") |
| Mounting hole measurement | 34-37 mm (1 3/8-1 7/16") |
| Connection hoses length | 450 mm (17 3/4") |
| Hose connection size | G 3/8" (R10) |
| Swivel spout | 360 ° |
| Recommended cold water temperature | 10-15˚C (50-59˚F) |
| Recommended hot water temperature | 60-65°C (140-150°F) |
| Max. hot water temperature | 80˚C (176˚F) |
| Strainer included | No |
| Third party certified according to local standards by | ETA-Danmark, KIWA, PZH, BELGAQUA, SINTEF, ACS |

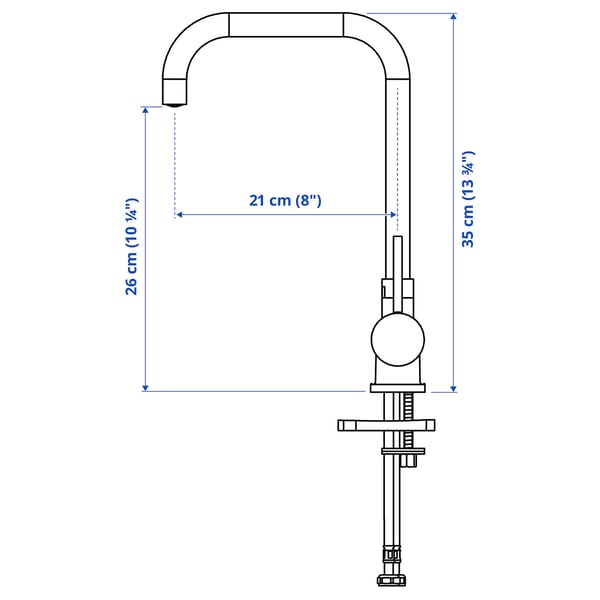

Measurements
- Length: 21 cm
- Height: 35 cm
- Folded height: 7 cm
Packaging
JUTTERN
Article number504.280.71- Width: 34 cm
- Height: 8 cm
- Length: 45 cm
- Weight: 2.45 kg
- Package(s): 1
SustainabilityPeople and planet
Energy and resources
Did you know using water more efficiently can reduce your energy bills and help tackle climate change?
Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.
