- Type of tapKitchen mixer tap with pull-out spout
- WELS rating4-6 l/min
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Max. worktop thickness50 mm (2")
- Mounting hole measurement34-37 mm (1 3/8-1 7/16")
- Connection hoses length525 mm (20 3/4")
- Hose connection sizeG 1/2" (R15) "
- Swivel spout120 °
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
- Strainer includedNo
- Third party certified according to local standards byGOIEC

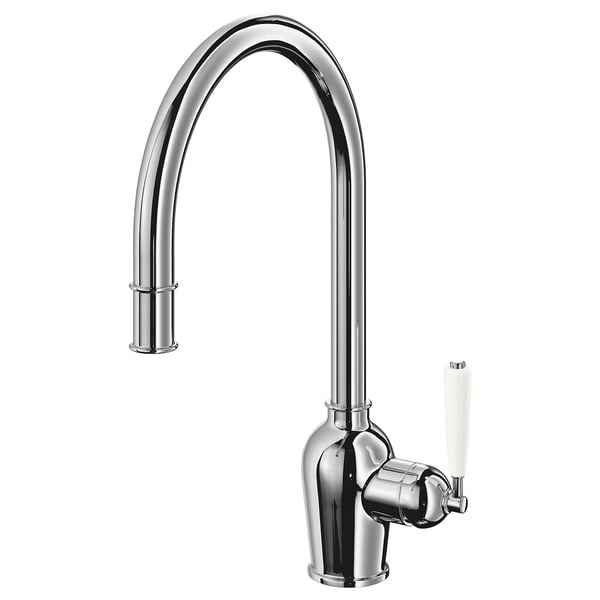

INSJÖN Kitchen mixer tap w pull-out spout, chrome-plated
Price EGP 11495
How to get it
Checking availability...INSJÖN
804.941.6810 year guarantee. Read about the terms in the guarantee brochure.
Product features
10 year guarantee
More information
Material
Zinc, Chrome-plated
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
INSJÖN Kitchen mixer tap w pull-out spout804.941.68Advice and care instructions
INSJÖN Kitchen mixer tap w pull-out spout804.941.68
Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen mixer tap.
The high spout makes it easier to wash dishes, including large pots.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 70 mm thick sink/worktop.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water system 80°C/176°F.

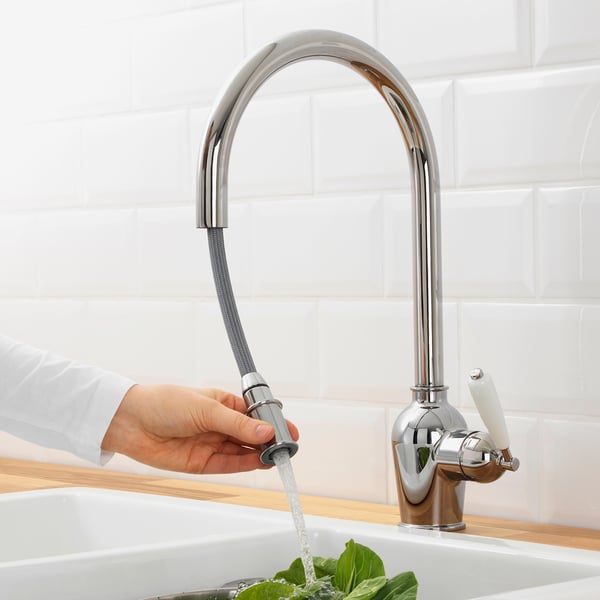

The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
Material
Zinc, Chrome-plated
Care
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe dry with a clean cloth.
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
- Tested and certified to relevant European mechanical, quality, safety and hygienic standards, including KIWA.This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
Assembly instructions
INSJÖN Kitchen mixer tap w pull-out spout804.941.68Advice and care instructions
INSJÖN Kitchen mixer tap w pull-out spout804.941.68
- 804.941.68
1 × INSJÖN
Kitchen mixer tap w pull-out spout- Width: 33 cm
- Height: 8 cm
- Length: 70 cm
- Weight: 3.75 kg
