- Brand NameIKEA
- Type of showerHead/handshower kit with diverter
- Annual energy consumption636 kWh/p.a.
- Max. flow rate at 3 bar9.5 l/min
- Max. flow rate at 3 bar,head shower9.5 l/min (2.5 gpm)
- Max. flow rate at 3 bar, hand shower8 l/min (2.1 gpm)
- Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
- Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
- Max. static pressure10 bar (1,0MPa) (145.0 psi)
- Recommended cold water temperature10-15˚C (50-59˚F)
- Recommended hot water temperature60-65°C (140-150°F)
- Max. hot water temperature80˚C (176˚F)
More from the VOXNAN series
VOXNAN Head/handshower kit with diverter, chrome-plated
Price 169€
How to get it
Checking availability...VOXNAN

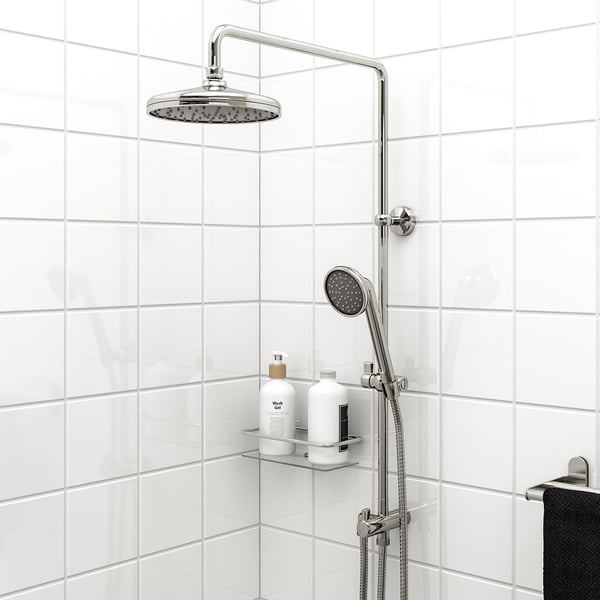

306.082.09A head/hand shower kit that lets you choose between a calming rainfall or a full spray – whatever suits you. An integrated washer keeps the water flow just right so you save both water and energy.
More information
Material
- Handheld showerhead inner housing/ Overhead shower inner housing:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- Polycarbonate/ABS plastic, Chrome-plated
- Diverter housing:
- Brass, Chrome-plated
- Handle:
- Zinc, Chrome-plated
- Pipe/ Outer hose:
- Stainless steel
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Inner hose:
- Silicone rubber
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
VOXNAN Head/handshower kit with diverter306.082.09VOXNAN Head/handshower kit with diverter306.082.09Advice and care instructions
VOXNAN Head/handshower kit with diverter306.082.09

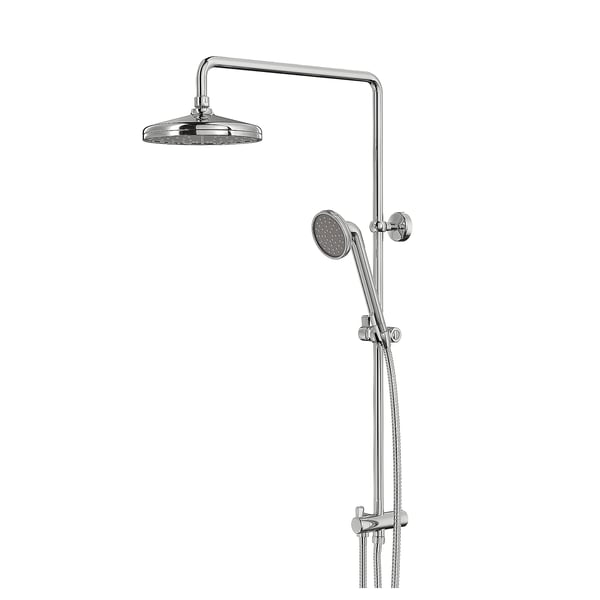

VOXNAN Head/handshower kit with diverter, chrome-plated
3 year guarantee. Read about the terms in the guarantee brochure.

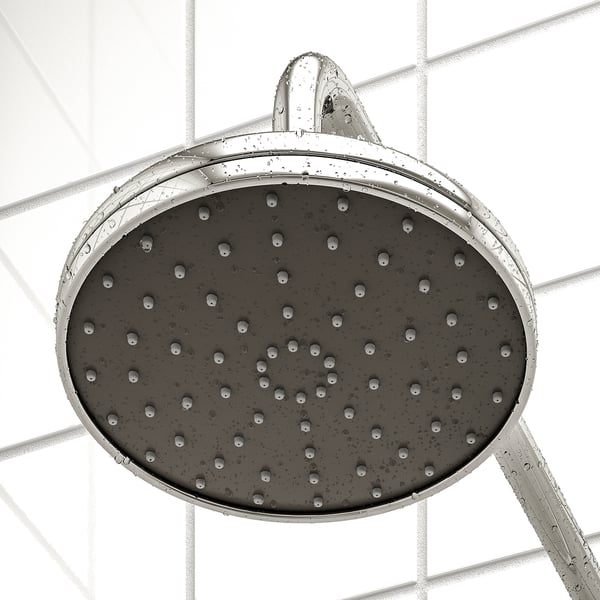

The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling.

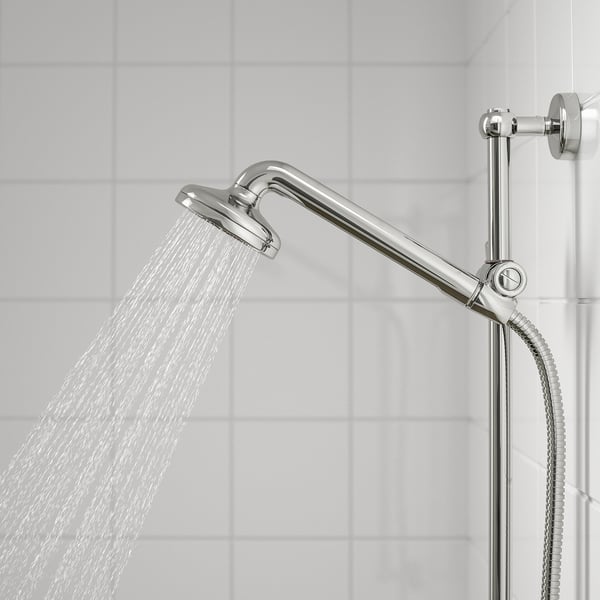

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.
You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.
The head and hand shower come with full spray function.
The hand shower consumes 6.8 l of water/min. and the head shower consumes 9.5 l of water/min.
Shower hose included.
Wall fittings included.
Pressure compensating flow regulator included.
Use the diverter to switch the water flow between head and hand showers.
May be combined with an IKEA or any other shower mixer.
IKEA of Sweden AB SE-343 81 Älmhult, IKEA.com
Material
- Handheld showerhead inner housing/ Overhead shower inner housing:
- Acetal plastic
- Handheld showerhead outer housing/ Overhead shower outer housing:
- Polycarbonate/ABS plastic, Chrome-plated
- Diverter housing:
- Brass, Chrome-plated
- Handle:
- Zinc, Chrome-plated
- Pipe/ Outer hose:
- Stainless steel
- Rail fitting:
- Steel, Zinc, Chrome-plated
- Inner hose:
- Silicone rubber
Care
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Assembly instructions
VOXNAN Head/handshower kit with diverter306.082.09VOXNAN Head/handshower kit with diverter306.082.09Advice and care instructions
VOXNAN Head/handshower kit with diverter306.082.09
- 306.082.09
1 × VOXNAN

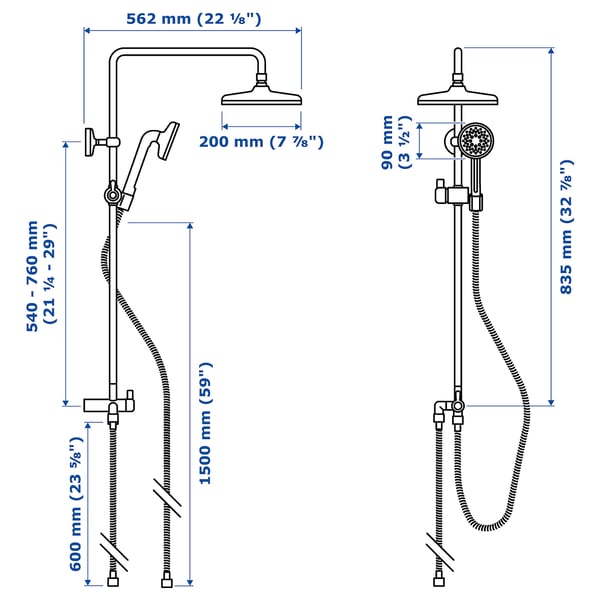

Head/handshower kit with diverter- Width: 55 cm
- Height: 8 cm
- Length: 92 cm
- Weight: 3.87 kg
