VOXNAN Head/handshower kit with diverter, chrome-plated

VOXNAN Head/handshower kit with diverter, chrome-plated

Reward 3290,–
Previous price: 3690,–
Price incl. tax

3 year guarantee

How to get it

A head/hand shower kit that lets you choose between a calming rainfall or a full spray – whatever suits you. An integrated washer keeps the water flow just right so you save both water and energy.

Article number503.425.91

Product details

3 year guarantee. Read about the terms in the guarantee brochure.

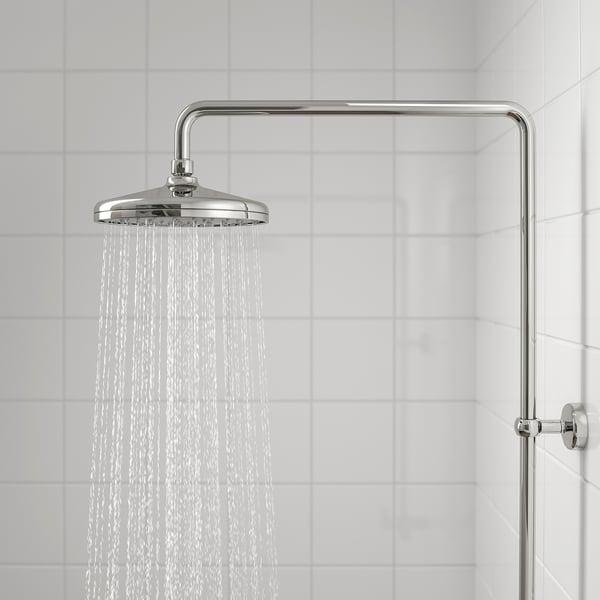

The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling.

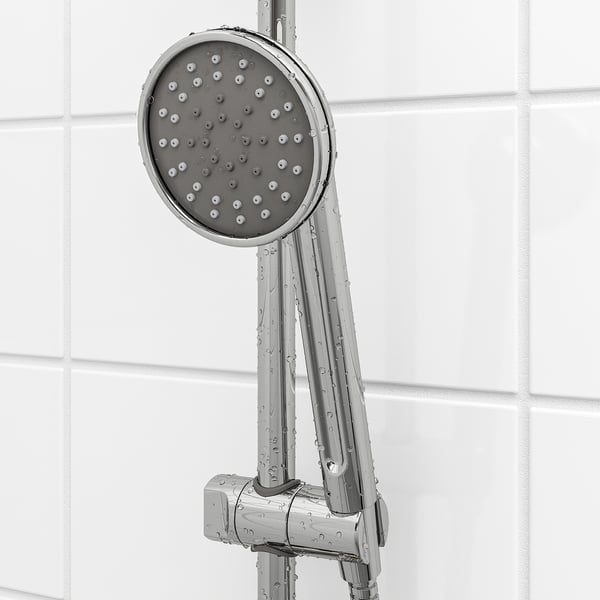

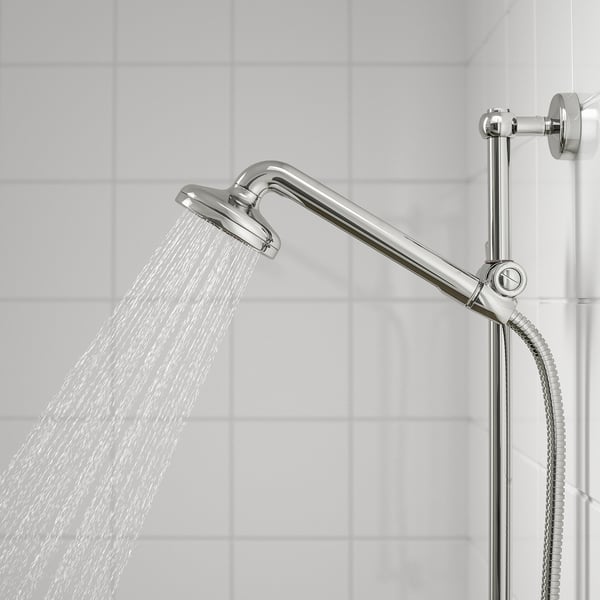

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.

You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.

Easy to clean by rubbing the rubber nozzles on the shower heads.

It’s easy to switch between the head and hand shower using the diverter on the rail.

The chrome-plated surface is a hard, durable and easy to clean.

A washer integrated in the shower keeps the water flow just right while less water and energy is used.

Designer

H Preutz/N Karlsson

Technical information

VOXNAN

Head/handshower kit with diverter

Brand NameIKEA
Type of showerHead/handshower kit with diverter
Annual energy consumption636 kWh/p.a.
Max. flow rate at 3 bar9.5 l/min
Max. flow rate at 3 bar,head shower9.5 l/min (2.5 gpm)
Max. flow rate at 3 bar, hand shower8 l/min (2.1 gpm)
Recommended working pressure1 - 5 bar (0.1 - 0.5 MPa) (14.5 - 72.5 psi)
Min. working pressure0.5 bar (0,05MPa) (7.25 psi)
Max. static pressure10 bar (1,0MPa) (145.0 psi)
Recommended cold water temperature10-15˚C (50-59˚F)
Recommended hot water temperature60-65°C (140-150°F)
Max. hot water temperature80˚C (176˚F)
Number of spray functions1
Third party certified according to local standards byACS, BELGAQUA, KIWA, PZH

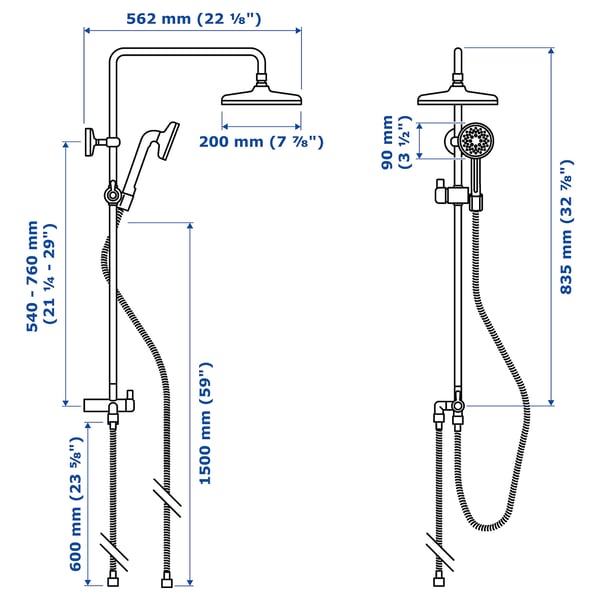

Measurements

Handshower diameter: 90 mm

Headshower diameter: 200 mm

Length of hose: 1500 mm

Width: 200 mm

Depth: 560 mm

Height: 850 mm

SustainabilityPeople and planet

Sustainable life at home

Shower with a clean conscience

Each of our head/hand showers has a small pressure compensating washer (PCW) that reduces water flow while maintaining the pressure. It’s a small part of our bigger effort to conserve water. We’re committed to being water positive by 2020, that is, conserving more clean water than we use. And every water-saving action adds up.

Energy and resources

Did you know using water more efficiently can reduce your energy bills and help tackle climate change?

Heating hot water accounts for 25% of home energy usage. Using water efficiently reduces energy bills and ultimately reduces carbon emissions. Look for the unified water label and start making a difference. The label has a clear colour coded system to show how much energy and water the product uses. Green rated products use less than those rated Red. Visit www.uwla.eu to find out more.

VOXNAN Head/handshower kit with diverter, chrome-plated

Efficient showers for everyday indulgence

With VOXNAN, BROGRUND and VALLAMOSSE showers, we want to help you save water and energy while enjoying a warm and nice shower. To succeed, we had to find just the right balance between the pressure in the water spray of the showers and water consumption. So how could we find out that the balance was right? It was all about changing into swimwear and turning on the mixer.

But before we got that far ― even before looking at all the technical details ― we interviewed people in different countries about their bathrooms and shower habits. Then we understood how important a few minutes under spraying water can be. Since it's not just about being clean, getting in the shower can also be a way to rinse off stress and unwind ― to take a moment for yourself or just wake up to a new day. When you rub the sleep out of your eyes in the shower, the spraying water naturally helps. But did you know that only 3% of all water on the planet is freshwater? And most of it is actually bound in ice. Since this limited freshwater is a vital resource for all of life, we must help to nurture it.

The engine of the shower

This is where the shower range comes in. We want to make it simple to save water and energy. With smart technology, the thermostatic mixer and shower arm make this simple. Antony Smith, who was part of the shower development team, has worked with mixers and showers since he finished university long ago. He describes the thermostatic mixer as the shower's engine "It's the mixer which ensures that there's an even water flow and the right temperature". Antony explains that it's thanks to the thermostatic mixer that your shower water is not affected if someone turns on the water in the kitchen. You can calmly continue singing in the shower ― without the risk of being burned or getting a cold shock. The mixers that the team developed also have a 38°C safety stop button, so there's no risk of you or any child accidentally raising the temperature.

Shower testing in swimwear

Another important key to creating both a comfortable and sustainable shower range is the small washer that sits in the shower arm which regulates the water flow. The challenge for the team was to find just the right balance between the water flow and pressure, so that you can use less water without affecting the shower experience. There was only one way for the team to see if they succeeded: "When we went to the supplier in China to test the first prototypes, we all packed our swimwear," says Antony smiling. With his swimwear on, he tested different water spray functions: full, mesh, mist, massage and various combinations of them. "How people prefer to shower is individual, and with the different streams, we allow everyone to adapt their shower experience. And maybe you'll enjoy showering a little more when you know that it's both water and energy efficient."

Material

What is ABS plastic?

ABS plastic is a strong and stable material with a glossy surface – making it perfect for especially used everyday objects like cutlery drawers, kitchen utensils, toothbrush mugs and bathroom hooks. ABS is made from oil-based, non-renewable raw materials, but development is progressing and we are using more and more recycled ABS. It is an important step towards our goal of only using plastic that is recycled or from renewable sources.

Function solution

A shower just the way you like it

Our head and hand showers provide individual comfort with the option to choose between 1, 3 or 5 spray functions. Choose FULL for a wide and even coverage; MESH to boost the force; MASSAGE to vary to flow; or MIST to de-stress with fine, gentle droplets. You can also choose combinations like FULL/MIST, FULL/MESH or FULL/MASSAGE. All shower mixers have a pressure compensating function that reduces water-use and gives you an even flow – even when the water pressure changes.

Max. flow rate at 3 bar 9.5 l/min, Annual energy consumption 636 kWh/p.a., Type of shower Head/handshower kit with diverter
